Sensor: S_2x5_058, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	DULQEDT	28A
ROC1	DULQEDT	28D
ROC2	DULQEDT	38C
ROC3	DULQEDT	38A
ROC4	DULQEDT	48B
ROC5	DULQEDT	39C
ROC6	DULQEDT	39A
ROC7	DULQEDT	49C
ROC8	DULQEDT	49D
ROC9	DULQEDT	49B

Depletion Voltage is -54 and suggested operational voltage is -94

Ibias_DAC, Ibias_DAC Data	156	158	156	158	166	154	166	160	158	148
Vana, VanaData	132	143	153	158	154	138	127	139	149	144
CalDelData and plots	79	92	96	82	83	90	93	84	88	92
VthrCompData and plots	91	90	88	89	89	76	84	92	84	92
TestDdata ,TestD Plots	0	1	1	0	0	2	3	0	0	7
LightData ,Light Plots	0	1	1	0	0	2	2	0	0	8
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

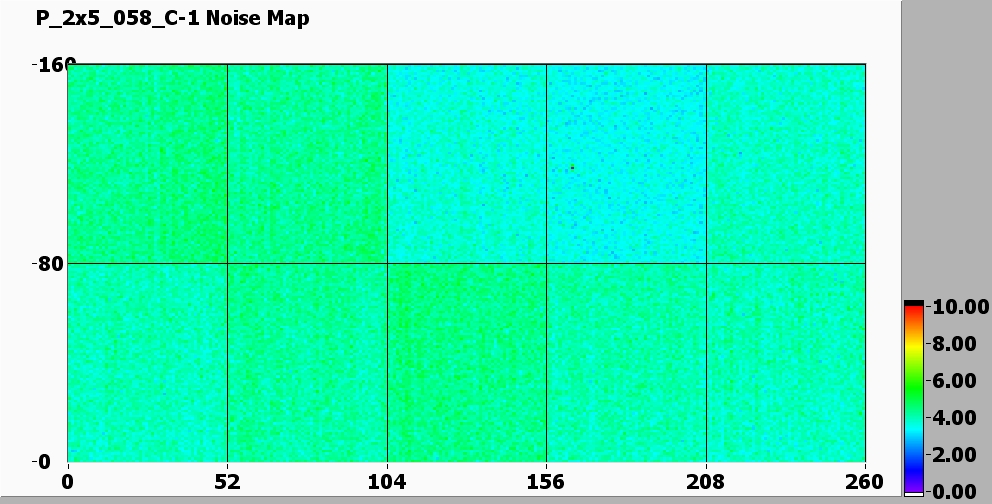

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

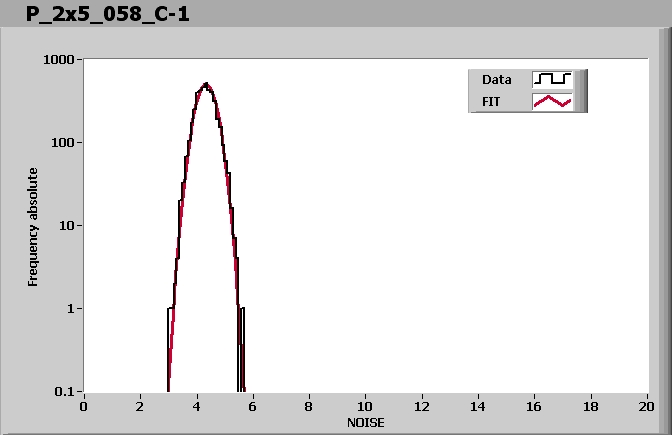

ROC0 NOISE			MEAN = 3.941859 SIGMA = 0.303873
ROC1 NOISE			MEAN = 4.142212 SIGMA = 0.331529
ROC2 NOISE			MEAN = 4.321950 SIGMA = 0.327574
ROC3 NOISE			MEAN = 4.010096 SIGMA = 0.319888
ROC4 NOISE			MEAN = 3.896751 SIGMA = 0.313824
ROC5 NOISE			MEAN = 3.821498 SIGMA = 0.295638
ROC6 NOISE			MEAN = 3.450040 SIGMA = 0.251986
ROC7 NOISE			MEAN = 3.638140 SIGMA = 0.286224
ROC8 NOISE			MEAN = 4.235786 SIGMA = 0.337074
ROC9 NOISE			MEAN = 4.314023 SIGMA = 0.339251

Comment (if any):

P_2x5_058_C.html,

End testing time: 12:42 PM
