![[IMAGE] of](P_2x5_050_C_IV.jpg)

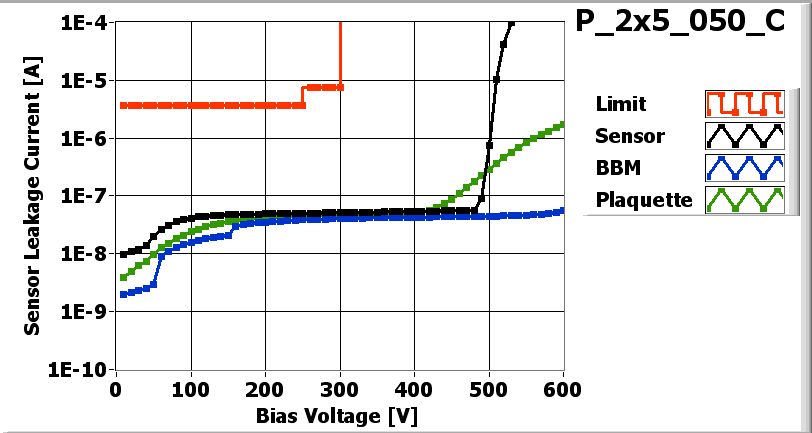

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_050_C_LASER.jpg)

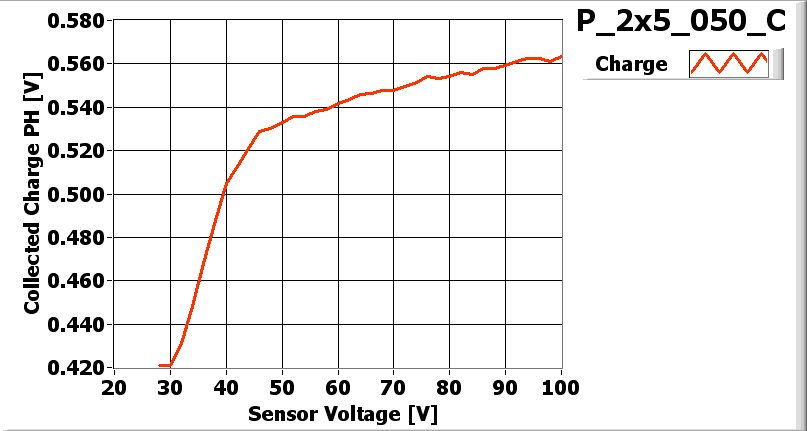

| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_050-2x5 |
| VHDI | 2x5_396 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 31A |
| ROC1 | XG4KFCT | 31B |
| ROC2 | XG4KFCT | 32B |
| ROC3 | XG4KFCT | 33A |
| ROC4 | XG4KFCT | 33B |
| ROC5 | XG4KFCT | 30A |
| ROC6 | XG4KFCT | 39D |
| ROC7 | XG4KFCT | 39C |
| ROC8 | XG4KFCT | 38D |
| ROC9 | XG4KFCT | 38C |
Inspected by Lockwood Gale on date 2/21/2007
| LR_dev | 0.087 |
| LL_dev | 0.101 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 2/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/22/2007 by Ozhan Koybasi
P_2x5_050_Con 2/26/2007 12:37 PM
P_2x5_050_Con 2/26/2007 12:37 PM
PLAQUETTE TESTED on 2007-02-26 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 134 | 140 | 122 | 134 | 130 | 132 | 146 | 144 | 122 | 126 | |
| Vana | 140 | 125 | 122 | 114 | 141 | 128 | 133 | 147 | 117 | 113 | |
| Cal_Del | 80 | 85 | 91 | 82 | 84 | 81 | 71 | 85 | 100 | 93 | |
| Vthrs_Comp | 88 | 81 | 72 | 76 | 73 | 72 | 90 | 89 | 70 | 71 | |
| Unbumped | 3 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_050_C_Ibias-dac.jpg) |

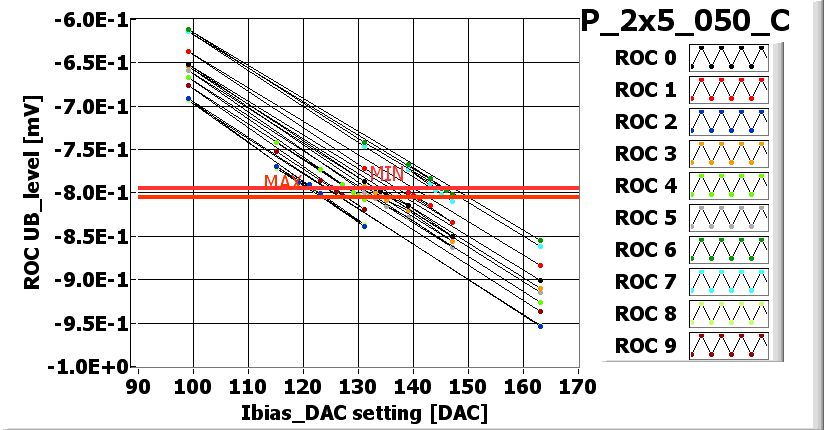

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_050_C_Vana.jpg) |

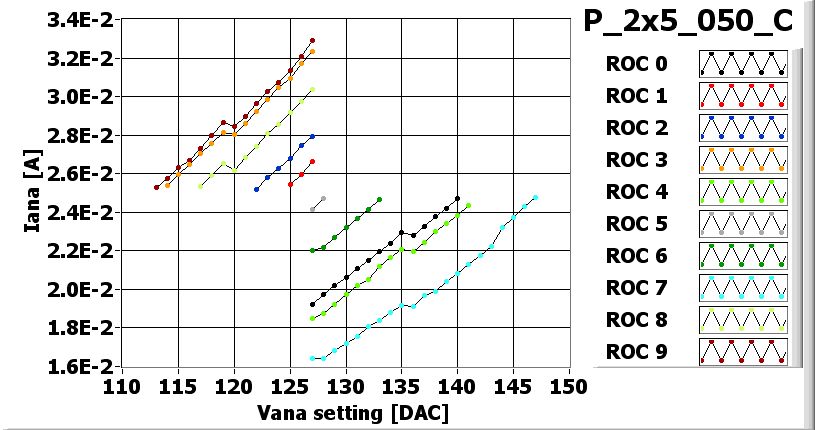

VANA_XML-File |
![[IMAGE] of](P_2x5_050_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_050_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_050_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_050_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 135 | 130 | 155 | 105 | 100 | 105 | 100 | 130 | 155 |
| Vsf | 145 | 145 | 135 | 130 | 140 | 140 | 140 | 145 | 135 | 140 |
| VoffsetOp | 110 | 75 | 55 | 70 | 75 | 75 | 115 | 105 | 65 | 55 |
| VIbias_PH | 100 | 95 | 100 | 105 | 110 | 105 | 100 | 100 | 105 | 105 |

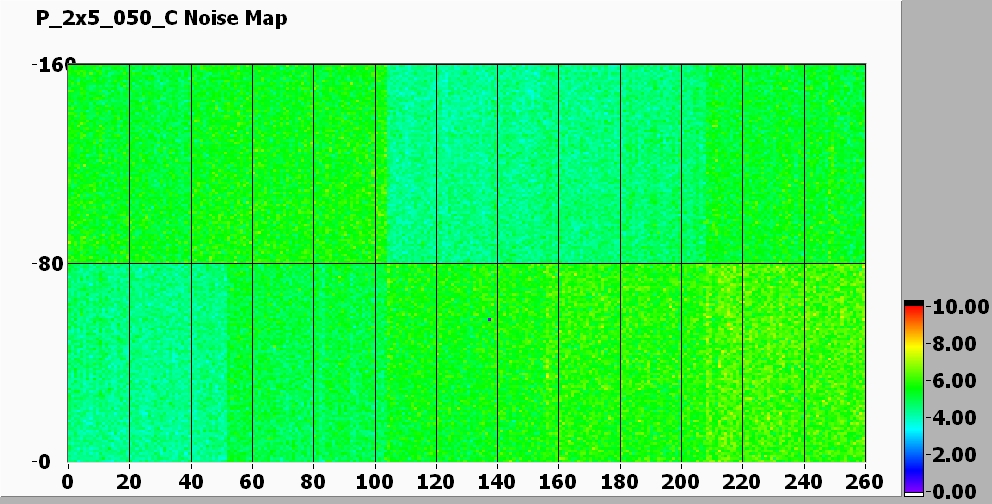

Noise MAP
![[IMAGE] of](P_2x5_050_C-580-noise.jpg)

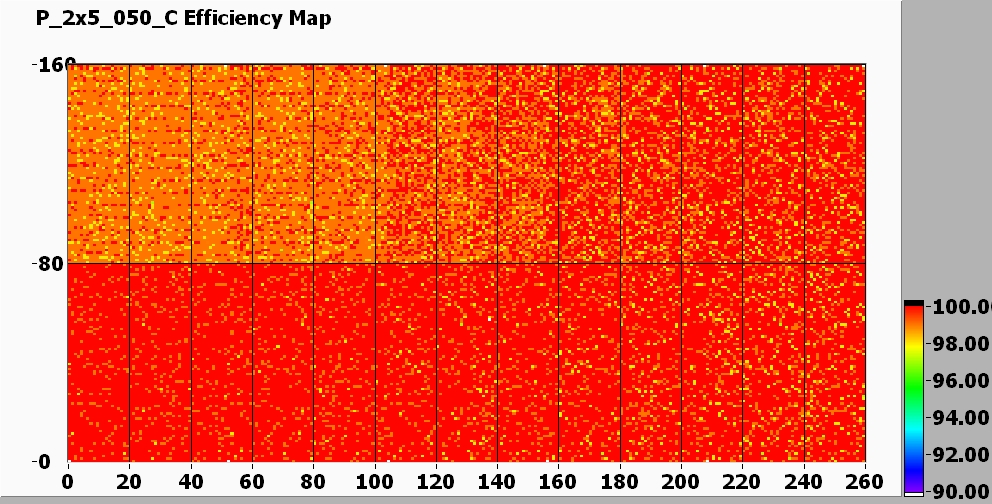

Efficiency MAP
![[IMAGE] of](P_2x5_050_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
