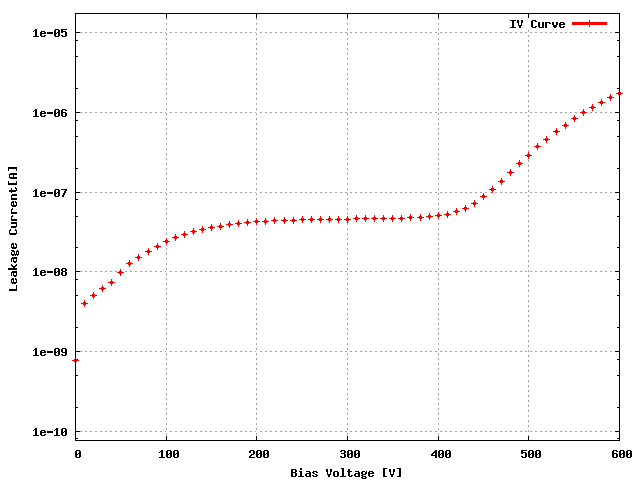

Sensor: S_2x5_050, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XG4KFCT	31A
ROC1	XG4KFCT	31B
ROC2	XG4KFCT	32B
ROC3	XG4KFCT	33A
ROC4	XG4KFCT	33B
ROC5	XG4KFCT	30A
ROC6	XG4KFCT	39D
ROC7	XG4KFCT	39C
ROC8	XG4KFCT	38D
ROC9	XG4KFCT	38C

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	134	140	122	134	130	132	146	144	122	126
Vana, VanaData	140	125	122	114	141	128	133	147	117	113
CalDelData and plots	80	85	91	82	84	81	71	85	100	93
VthrCompData and plots	88	81	72	76	73	72	90	89	70	71
TestDdata ,TestD Plots	3	0	1	0	0	0	1	0	0	1
LightData ,Light Plots	3	0	0	0	0	0	1	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.408162 SIGMA = 0.342314

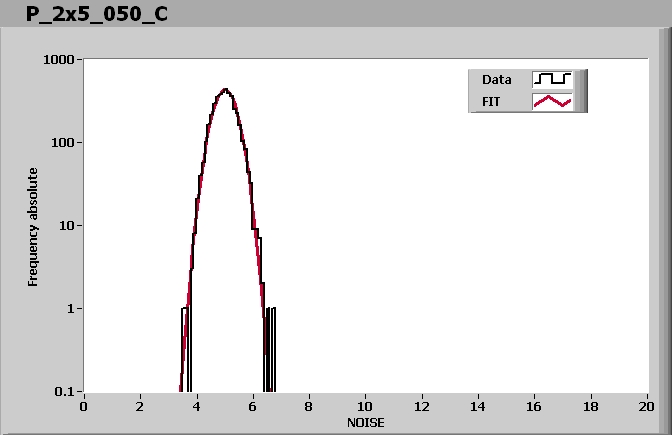

ROC1 NOISE			MEAN = 4.996660 SIGMA = 0.385854

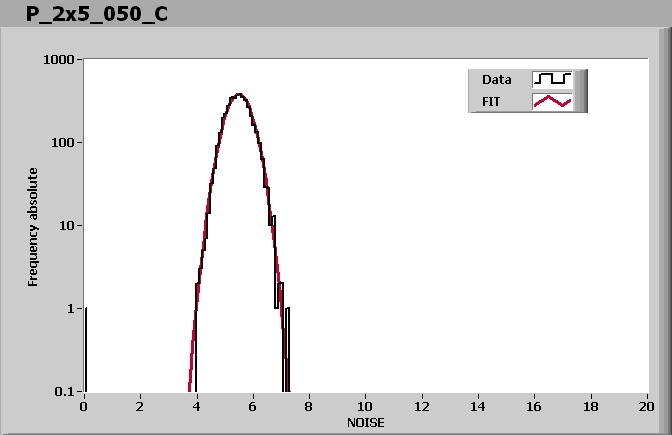

ROC2 NOISE			MEAN = 5.487300 SIGMA = 0.438403

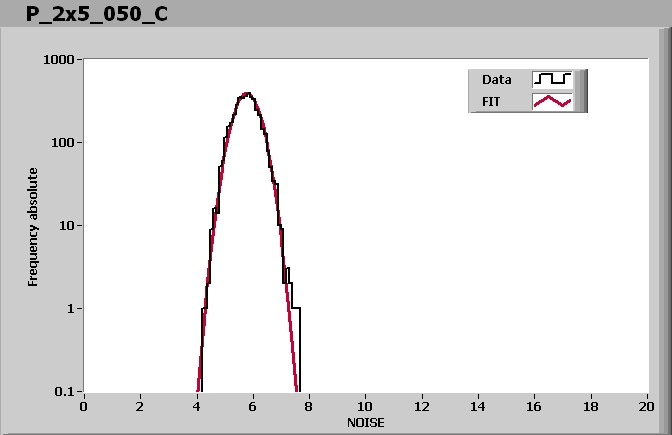

ROC3 NOISE			MEAN = 5.773064 SIGMA = 0.429052
ROC4 NOISE			MEAN = 6.072809 SIGMA = 0.480325

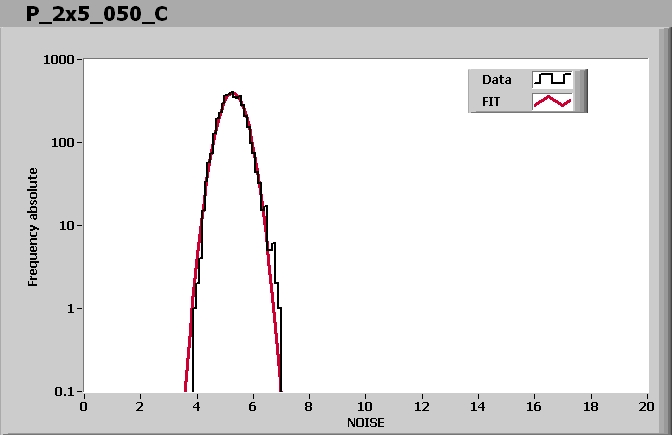

ROC5 NOISE			MEAN = 5.273595 SIGMA = 0.417990
ROC6 NOISE			MEAN = 4.559439 SIGMA = 0.361131

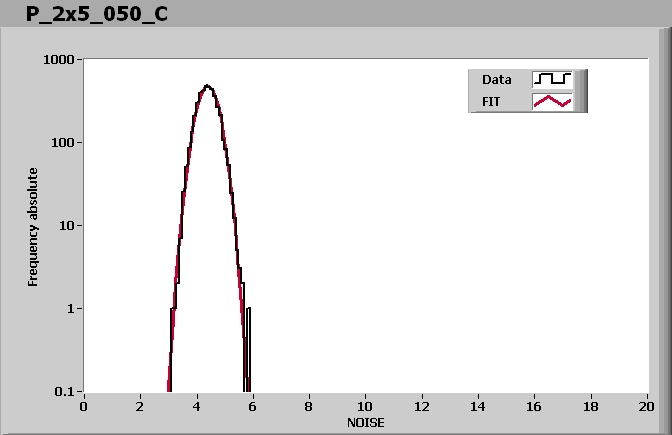

ROC7 NOISE			MEAN = 4.386285 SIGMA = 0.342943

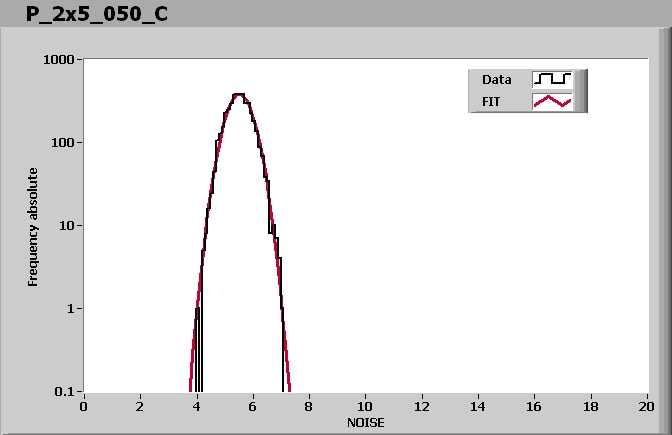

ROC8 NOISE			MEAN = 5.513570 SIGMA = 0.438051

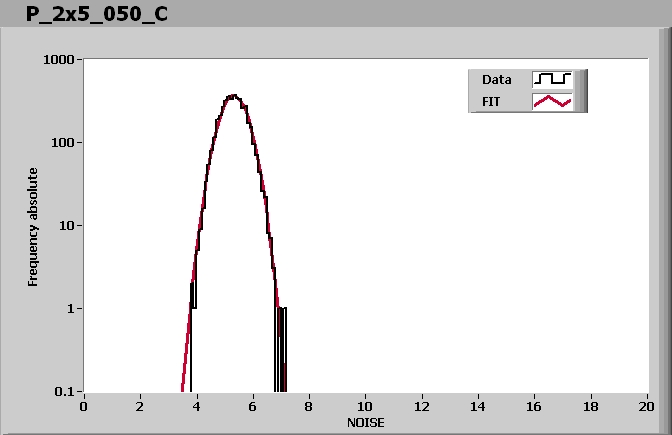

ROC9 NOISE			MEAN = 5.316149 SIGMA = 0.453983

Comment (if any): Good

End testing time: 12:59 PM
