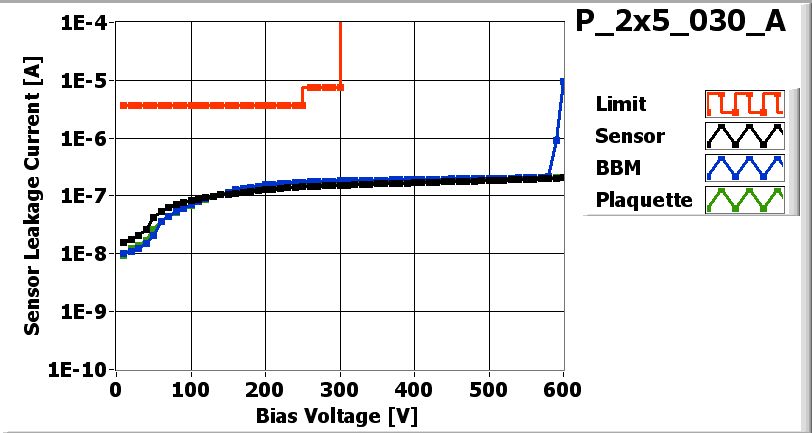

![[IMAGE] of](P_2x5_030_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

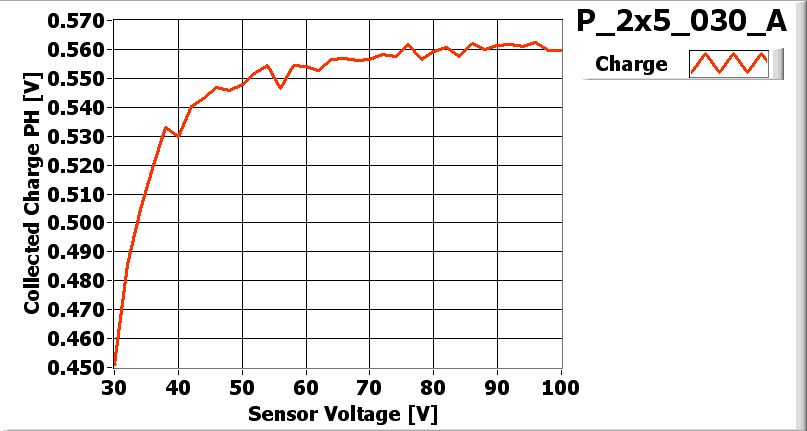

![[IMAGE] of](P_2x5_030_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 4/23/2007
| Part | ID |
|---|---|
| BBM | BBM_030-2x5 |
| VHDI | 2x5_278 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 27C |
| ROC1 | W35_XH4K3HT | 27B |
| ROC2 | W35_XH4K3HT | 27A |
| ROC3 | W35_XH4K3HT | 26D |
| ROC4 | W35_XH4K3HT | 26A |
| ROC5 | W35_XH4K3HT | 49A |
| ROC6 | W35_XH4K3HT | 49B |
| ROC7 | W35_XH4K3HT | 49D |
| ROC8 | W35_XH4K3HT | 30A |
| ROC9 | W35_XH4K3HT | 30B |
Inspected by Lockwood Gale on date 4/24/2007
| LR_dev | 0.069 |
| LL_dev | 0.074 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at FULL-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/24/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/24/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/24/2007 by Ozhan Koybasi
P_2x5_030_Aon 4/25/2007 9:11 AM
P_2x5_030_A-1on 4/25/2007 9:25 AM
P_2x5_030_A-1on 4/25/2007 9:25 AM
PLAQUETTE TESTED on 2007-04-25 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 142 | 134 | 138 | 132 | 138 | 148 | 144 | 148 | 128 | 132 | |
| Vana | 139 | 131 | 142 | 146 | 134 | 147 | 144 | 123 | 121 | 125 | |
| Cal_Del | 83 | 81 | 89 | 80 | 96 | 85 | 77 | 84 | 82 | 85 | |
| Vthrs_Comp | 87 | 69 | 81 | 83 | 73 | 77 | 83 | 83 | 76 | 65 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

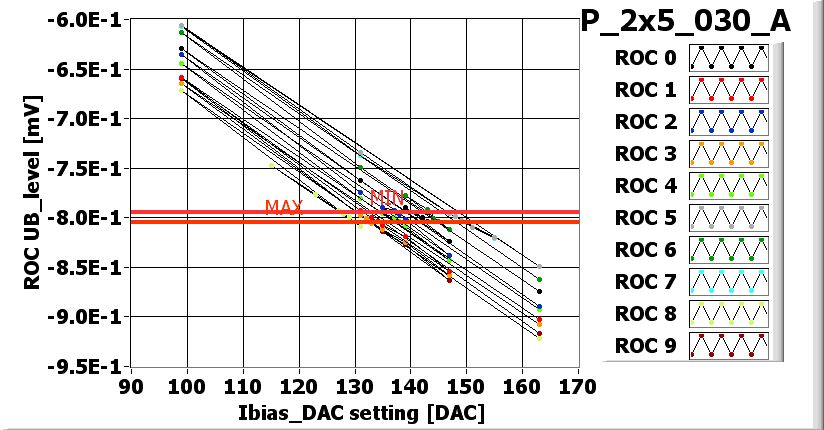

![[IMAGE] of](P_2x5_030_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

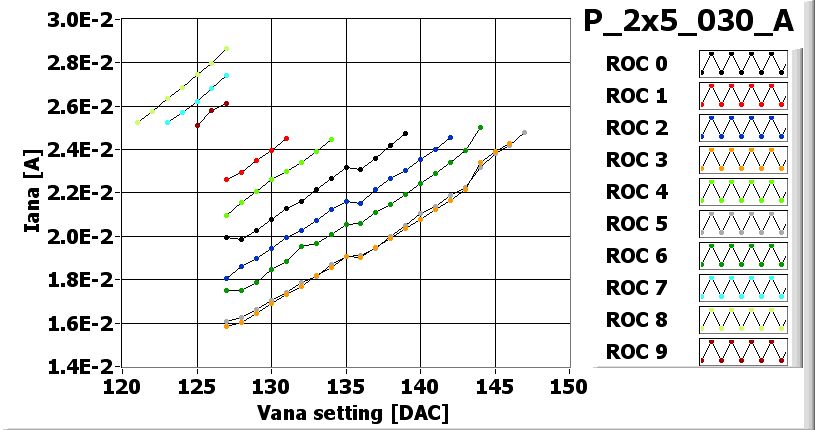

![[IMAGE] of](P_2x5_030_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_030_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_030_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_030_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_030_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 120 | 120 | 90 | 110 | 95 | 105 | 125 | 145 | 120 |
| Vsf | 145 | 145 | 140 | 140 | 140 | 145 | 145 | 140 | 140 | 130 |
| VoffsetOp | 85 | 75 | 75 | 85 | 80 | 105 | 105 | 95 | 70 | 50 |
| VIbias_PH | 100 | 100 | 100 | 100 | 95 | 100 | 105 | 100 | 105 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_030_A-1-580-noise.jpg)

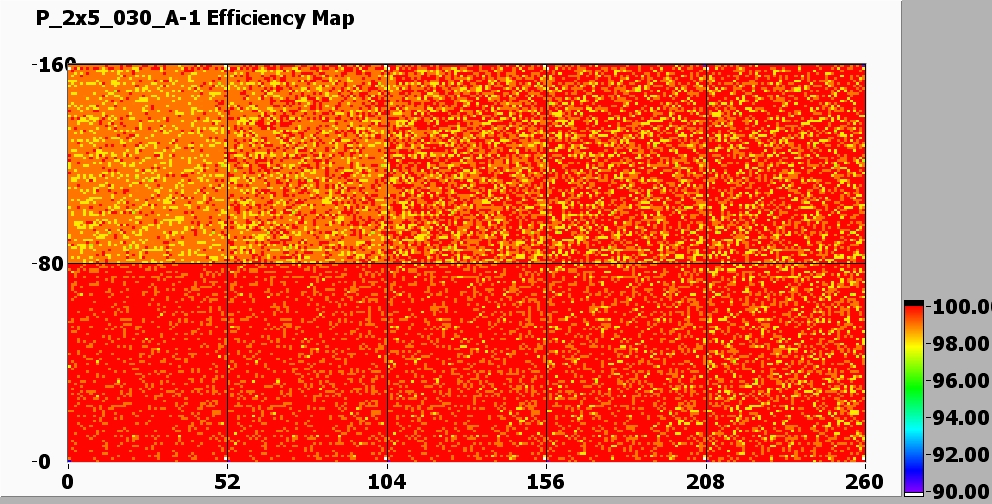

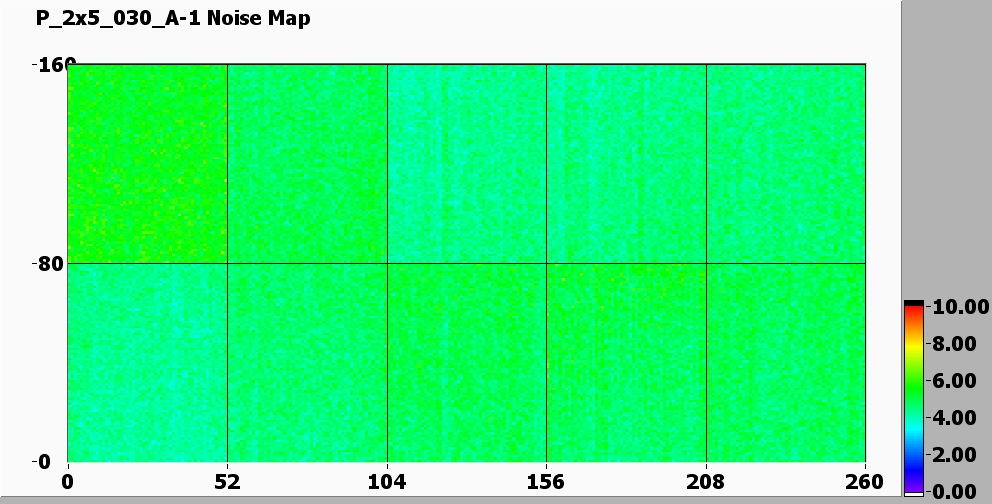

Efficiency MAP
![[IMAGE] of](P_2x5_030_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
