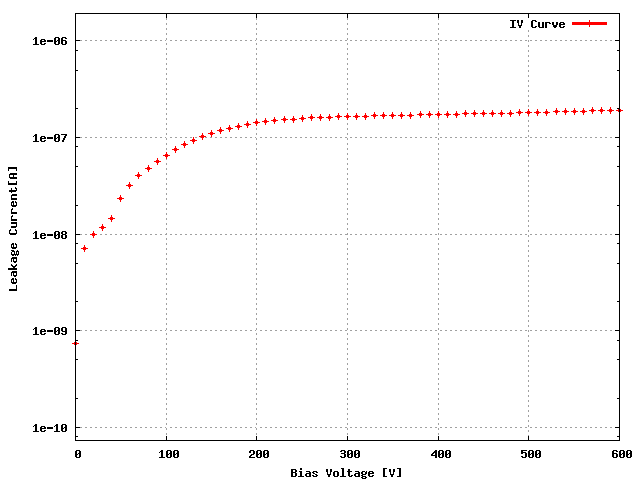

Sensor: S_2x5_030, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K3HT | 27C |
| ROC1 | W35_XH4K3HT | 27B |
| ROC2 | W35_XH4K3HT | 27A |
| ROC3 | W35_XH4K3HT | 26D |
| ROC4 | W35_XH4K3HT | 26A |
| ROC5 | W35_XH4K3HT | 49A |
| ROC6 | W35_XH4K3HT | 49B |
| ROC7 | W35_XH4K3HT | 49D |
| ROC8 | W35_XH4K3HT | 30A |
| ROC9 | W35_XH4K3HT | 30B |
| Ibias_DAC, Ibias_DAC Data | 140 | 130 | 136 | 130 | 134 | 146 | 144 | 146 | 128 | 130 |
| Vana, VanaData | 139 | 131 | 142 | 147 | 135 | 147 | 144 | 124 | 122 | 126 |
| CalDelData and plots | 83 | 81 | 89 | 80 | 96 | 86 | 78 | 84 | 82 | 85 |
| VthrCompData and plots | 87 | 69 | 81 | 84 | 74 | 77 | 83 | 83 | 77 | 66 | Depletion Voltage is -44 and suggested operational voltage is -84 TEsting the laser
