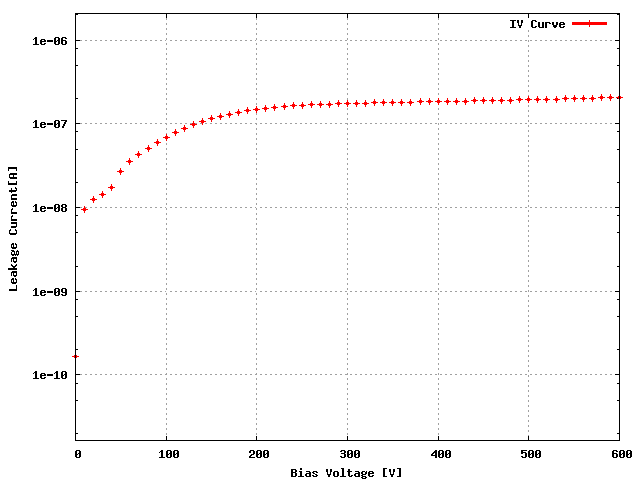

Sensor: S_2x5_030, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W35_XH4K3HT	27C
ROC1	W35_XH4K3HT	27B
ROC2	W35_XH4K3HT	27A
ROC3	W35_XH4K3HT	26D
ROC4	W35_XH4K3HT	26A
ROC5	W35_XH4K3HT	49A
ROC6	W35_XH4K3HT	49B
ROC7	W35_XH4K3HT	49D
ROC8	W35_XH4K3HT	30A
ROC9	W35_XH4K3HT	30B

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	142	134	138	132	138	148	144	148	128	132
Vana, VanaData	139	131	142	146	134	147	144	123	121	125
CalDelData and plots	83	81	89	80	96	85	77	84	82	85
VthrCompData and plots	87	69	81	83	73	77	83	83	76	65
TestDdata ,TestD Plots	0	0	0	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

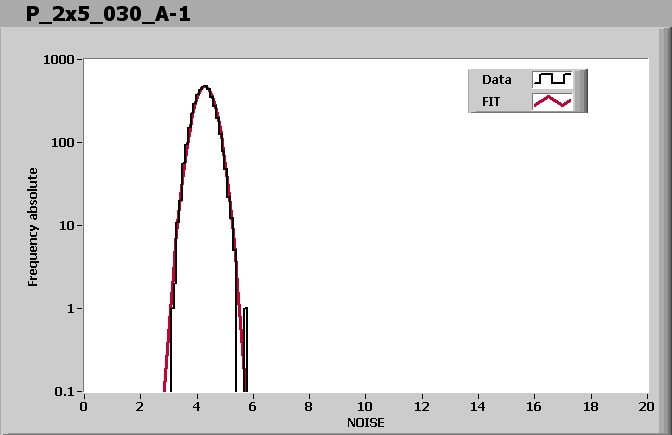

ROC0 NOISE			MEAN = 4.283758 SIGMA = 0.349958

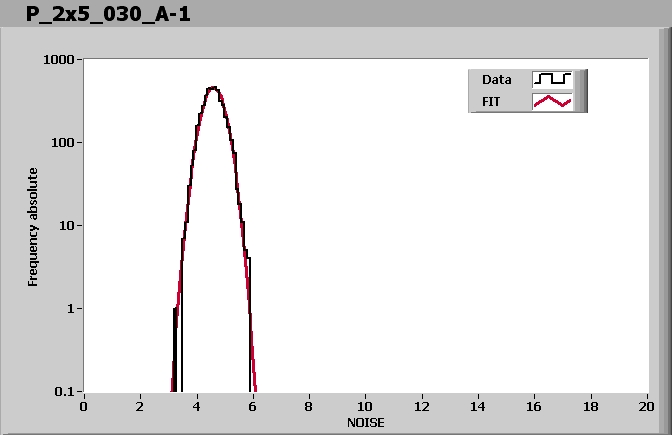

ROC1 NOISE			MEAN = 4.591127 SIGMA = 0.362958
ROC2 NOISE			MEAN = 4.823655 SIGMA = 0.383101
ROC3 NOISE			MEAN = 4.778793 SIGMA = 0.419272

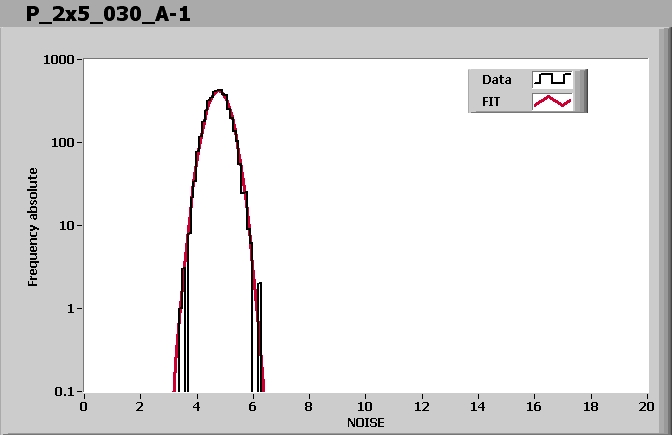

ROC4 NOISE			MEAN = 4.769904 SIGMA = 0.390295

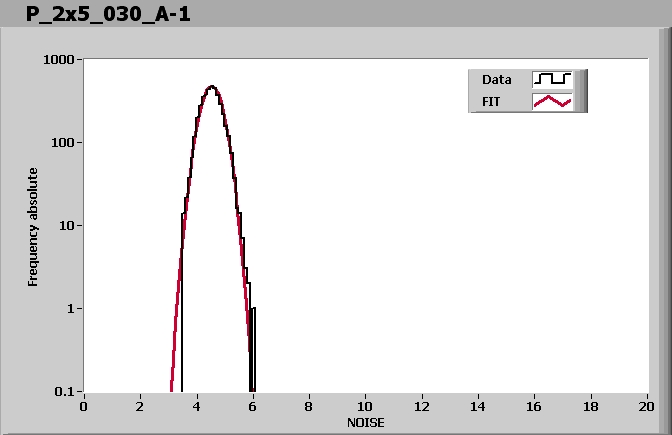

ROC5 NOISE			MEAN = 4.523634 SIGMA = 0.352218
ROC6 NOISE			MEAN = 4.421259 SIGMA = 0.349866
ROC7 NOISE			MEAN = 4.335530 SIGMA = 0.342631
ROC8 NOISE			MEAN = 4.811444 SIGMA = 0.390728

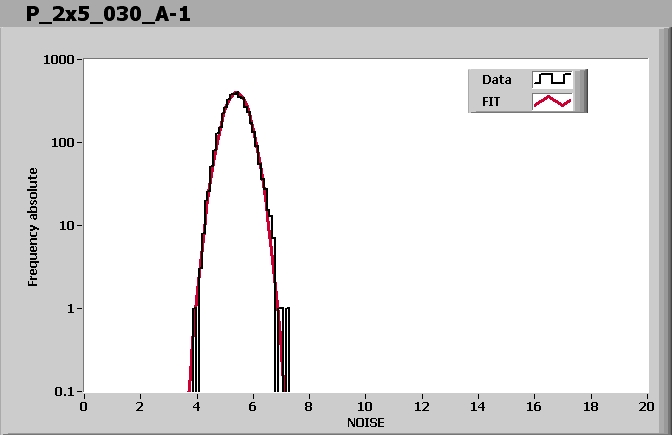

ROC9 NOISE			MEAN = 5.408154 SIGMA = 0.419074

Comment (if any): Perfect

P_2x5_030_A.html,

End testing time: 9:46 AM
