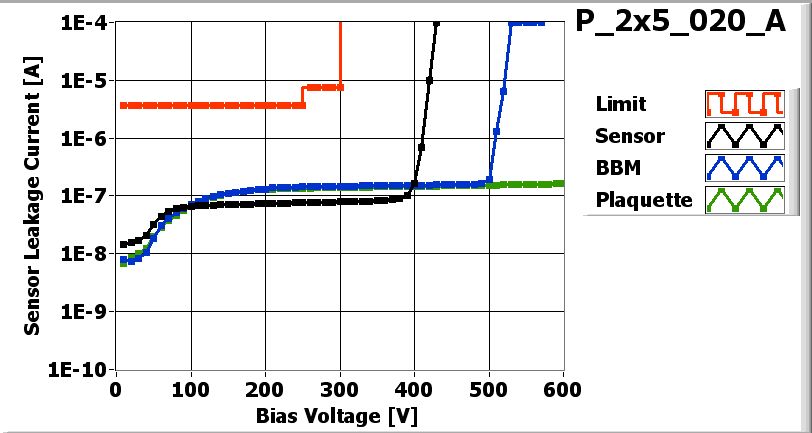

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_020_A_LASER.jpg)

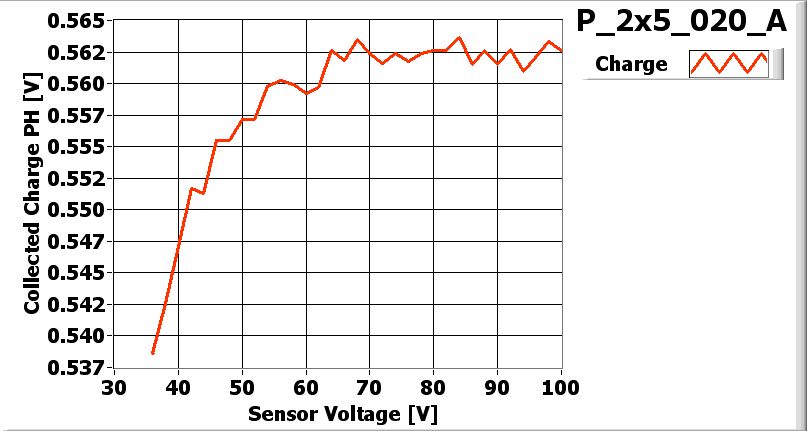

| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Arndt Kirk on date 5/7/2007
| Part | ID |
|---|---|
| BBM | BBM_020-2x5 |
| VHDI | 2x5_332 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W49_D1LQG5T | 36A |
| ROC1 | W49_D1LQG5T | 35B |
| ROC2 | W49_D1LQG5T | 34D |
| ROC3 | W49_D1LQG5T | 34A |
| ROC4 | W49_D1LQG5T | 33D |
| ROC5 | W49_D1LQG5T | 51C |
| ROC6 | W49_D1LQG5T | 52D |
| ROC7 | W49_D1LQG5T | 53B |
| ROC8 | W49_D1LQG5T | 54A |
| ROC9 | W49_D1LQG5T | 54B |
Inspected by Lockwood Gale on date 5/17/2007
| LR_dev | 0.056 |
| LL_dev | 0.058 |
PLAQUETTE GLUED with FULL PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Released pusher before releasing joining force. ROC 4 Ch 1 2 attempts, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/17/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/17/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/17/2007 by Perera Rajiv
P_2x5_020_Aon 5/21/2007 9:30 AM
P_2x5_020_A-1on 5/21/2007 9:33 AM
P_2x5_020_A-2on 5/21/2007 9:49 AM
P_2x5_020_A-2on 5/21/2007 9:49 AM
PLAQUETTE TESTED on 2007-05-21 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 146 | 160 | 168 | 148 | 148 | 170 | 150 | 150 | 150 | 144 | |
| Vana | 150 | 140 | 150 | 146 | 144 | 150 | 158 | 150 | 135 | 128 | |
| Cal_Del | 77 | 79 | 83 | 82 | 84 | 88 | 85 | 83 | 77 | 93 | |
| Vthrs_Comp | 85 | 83 | 85 | 80 | 85 | 84 | 93 | 91 | 88 | 68 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_020_A_Ibias-dac.jpg) |

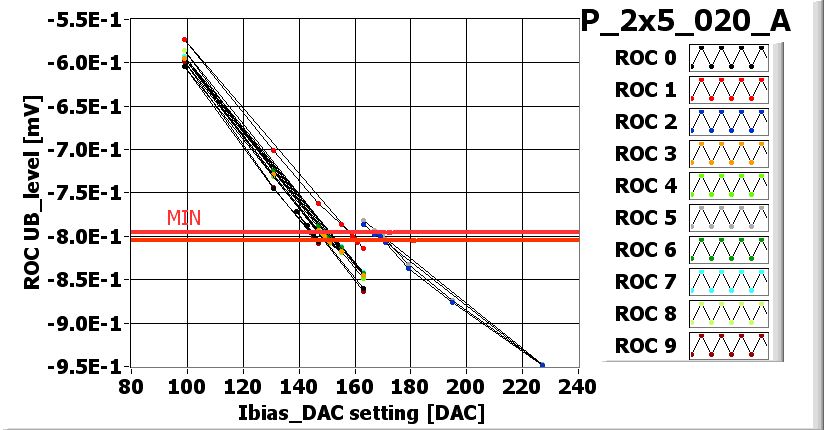

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_020_A_Vana.jpg) |

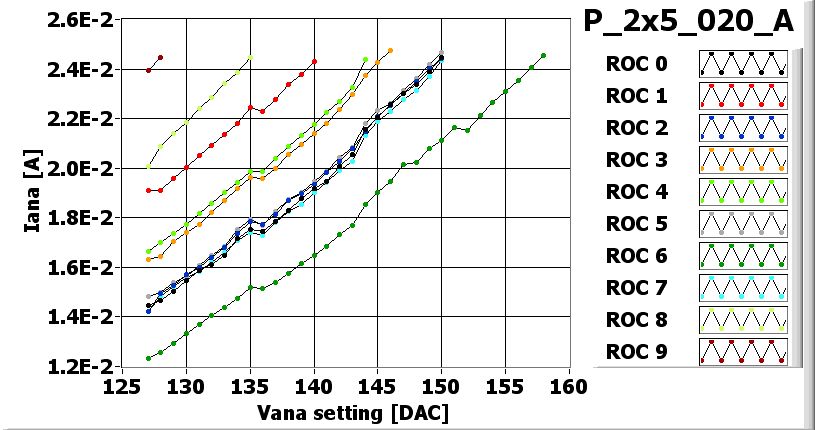

VANA_XML-File |
![[IMAGE] of](P_2x5_020_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_020_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_020_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_020_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 90 | 100 | 90 | 90 | 105 | 100 | 95 | 110 | 115 |
| Vsf | 145 | 135 | 155 | 150 | 145 | 145 | 150 | 150 | 140 | 140 |
| VoffsetOp | 115 | 110 | 105 | 105 | 110 | 120 | 110 | 105 | 90 | 80 |
| VIbias_PH | 100 | 95 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x5_020_A-2-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_020_A-2-580-efficiency.jpg)

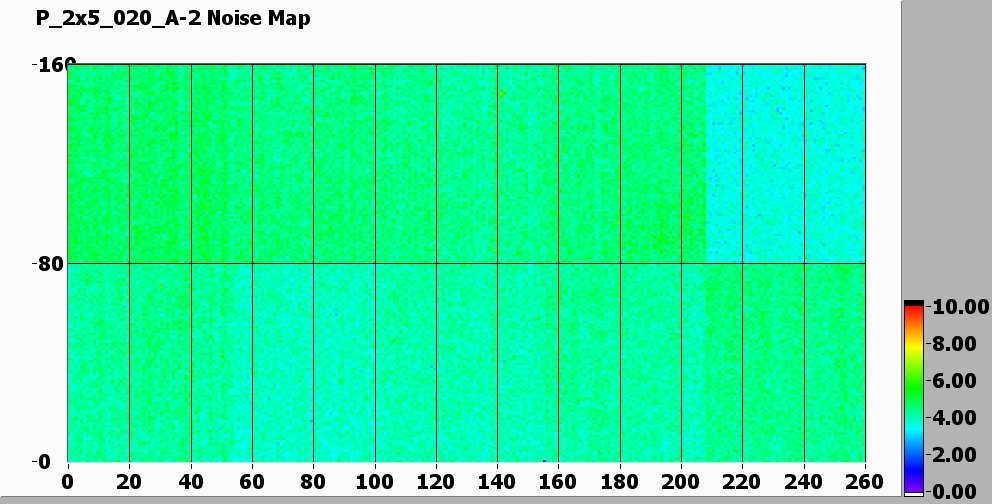

Noise MAP at -200 V
![[IMAGE] of](P_2x5_020_A-2-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_020_A-2-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
