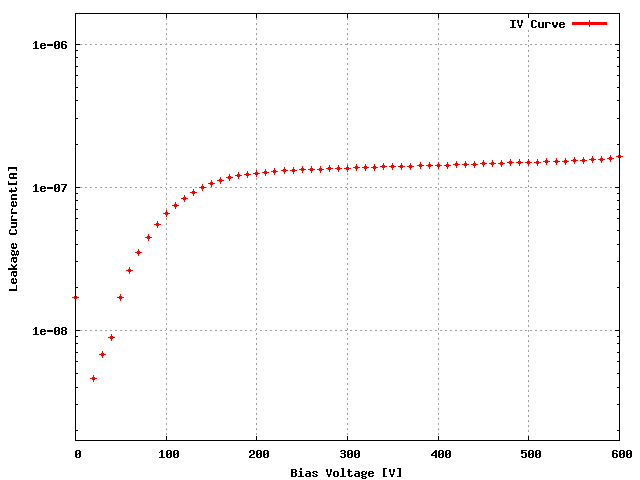

Sensor: S_2x5_020, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W49_D1LQG5T | 36A |
ROC1 | W49_D1LQG5T | 35B |
ROC2 | W49_D1LQG5T | 34D |
ROC3 | W49_D1LQG5T | 34A |
ROC4 | W49_D1LQG5T | 33D |
ROC5 | W49_D1LQG5T | 51C |
ROC6 | W49_D1LQG5T | 52D |
ROC7 | W49_D1LQG5T | 53B |
ROC8 | W49_D1LQG5T | 54A |
ROC9 | W49_D1LQG5T | 54B |
Ibias_DAC, Ibias_DAC Data | 134 | 146 | 158 | 142 | 142 | 158 | 144 | 142 | 142 | 134 |
Vana, VanaData | 144 | 133 | 144 | 139 | 139 | 144 | 149 | 144 | 128 | 124 |
CalDelData and plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
VthrCompData and plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Depletion Voltage is -94 and suggested operational voltage is -134
TestDdata ,TestD Plots | 4160 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | CalDel and VthrComp = 0 for all ROCS, Vop = -134
