P_2x5_020

P_2x5_020_A-2

Production testing

Date:5/21/2007

Operator: Emily Grace

start testing time:9:49 AM

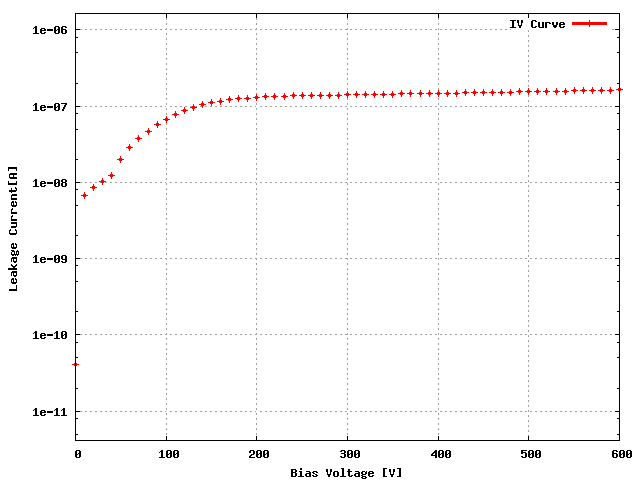

Sensor: S_2x5_020, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W49_D1LQG5T 36A

ROC1 W49_D1LQG5T 35B

ROC2 W49_D1LQG5T 34D

ROC3 W49_D1LQG5T 34A

ROC4 W49_D1LQG5T 33D

ROC5 W49_D1LQG5T 51C

ROC6 W49_D1LQG5T 52D

ROC7 W49_D1LQG5T 53B

ROC8 W49_D1LQG5T 54A

ROC9 W49_D1LQG5T 54B

ROC	ROC wafer	Label
ROC0	W49_D1LQG5T	36A
ROC1	W49_D1LQG5T	35B
ROC2	W49_D1LQG5T	34D
ROC3	W49_D1LQG5T	34A
ROC4	W49_D1LQG5T	33D
ROC5	W49_D1LQG5T	51C
ROC6	W49_D1LQG5T	52D
ROC7	W49_D1LQG5T	53B
ROC8	W49_D1LQG5T	54A
ROC9	W49_D1LQG5T	54B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 146 160 168 148 148 170 150 150 150 144

Vana, VanaData 150 140 150 146 144 150 158 150 135 128

CalDelData and plots 77 79 83 82 84 88 85 83 77 93

VthrCompData and plots 85 83 85 80 85 84 93 91 88 68

TestDdata ,TestD Plots 0 0 1 0 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD GOOD

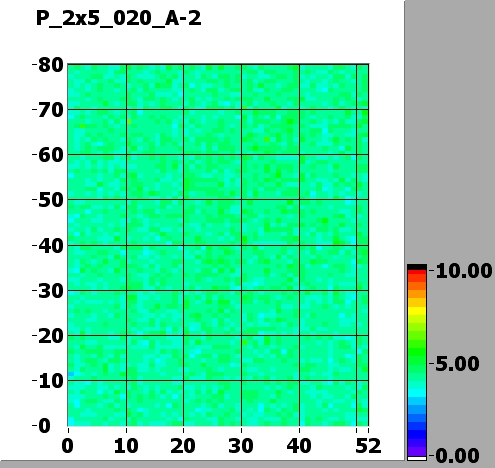

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	90	100	90	90	105	100	95	110	115
Vsf	145	135	155	150	145	145	150	150	140	140
VoffsetOp	115	110	105	105	110	120	110	105	90	80
VIbias_PH	100	95	100	100	100	100	100	100	100	100

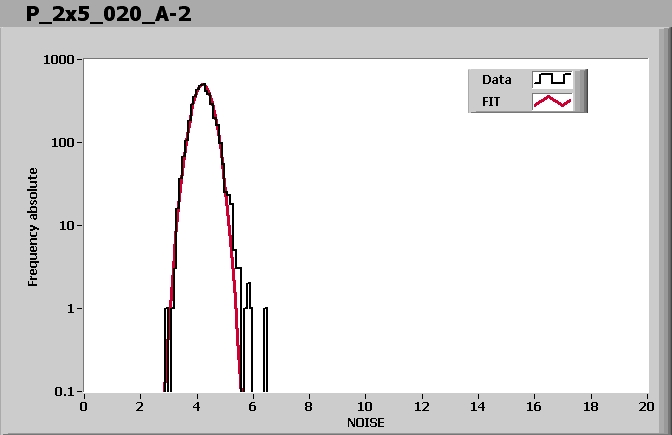

ROC0 NOISE			MEAN = 4.209520 SIGMA = 0.330445
ROC1 NOISE			MEAN = 3.890595 SIGMA = 0.311739
ROC2 NOISE			MEAN = 4.018734 SIGMA = 0.310997
ROC3 NOISE			MEAN = 4.135624 SIGMA = 0.335719
ROC4 NOISE			MEAN = 4.373431 SIGMA = 0.343664
ROC5 NOISE			MEAN = 3.567962 SIGMA = 0.288886
ROC6 NOISE			MEAN = 4.446063 SIGMA = 0.344142
ROC7 NOISE			MEAN = 4.275416 SIGMA = 0.350076
ROC8 NOISE			MEAN = 4.446110 SIGMA = 0.338139
ROC9 NOISE			MEAN = 4.623002 SIGMA = 0.354750

Comment (if any):

This Device have been tested 2Times prior to this one and here are the links to the previous tests:

P_2x5_020_A-1.html,

P_2x5_020_A.html,

End testing time: 10:16 AM

Ibias_DAC, Ibias_DAC Data	146	160	168	148	148	170	150	150	150	144
Vana, VanaData	150	140	150	146	144	150	158	150	135	128
CalDelData and plots	77	79	83	82	84	88	85	83	77	93
VthrCompData and plots	85	83	85	80	85	84	93	91	88	68
TestDdata ,TestD Plots	0	0	1	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
