P_2x4T_123

P_2x4T_123_A

Parts committed by Bolla Gino on date 11/19/2007

Part	ID
BBM	BBM_123-2x4T
VHDI	2x4_754

ROC ROC wafer Label

ROC0 W47_DXLQF5T 13D

ROC1 W47_DXLQF5T 13A

ROC2 W47_DXLQF5T 12D

ROC3 W47_DXLQF5T 12C

ROC4 W55_D3LQE4T 66C

ROC5 W52_DOLQC8T 55D

ROC6 W47_DXLQF5T 04D

ROC7 W55_D3LQE4T 67B

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	13D
ROC1	W47_DXLQF5T	13A
ROC2	W47_DXLQF5T	12D
ROC3	W47_DXLQF5T	12C
ROC4	W55_D3LQE4T	66C
ROC5	W52_DOLQC8T	55D
ROC6	W47_DXLQF5T	04D
ROC7	W55_D3LQE4T	67B

Inspected by Lockwood Gale on date 12/12/2007

LR_dev 0.035

LL_dev 0.041

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 0,Ch 9,2hb,2 tries,ROC 0 Ch 35,2Fl, 3 tries, ROC 0 Ch 35, 2hb1,2FL, 3tries, ROC 6 Ch 1, 2fl,5 tries, ROC 6 ch 2, 2fl, 2 tries, ROC 5, ch 33,2fl, 2 tries, ROC 5, Ch 1, 2hb, 2 tries, ROC 4, ch 1,2 , 2hb, 3 tries, No other wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 12/12/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/17/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/17/2007 by Ozhan Koybasi

P_2x4T_123_Aon 12/17/2007 2:06 PM

P_2x4T_123_A-1on 12/17/2007 2:36 PM

P_2x4T_123_A-2on 12/17/2007 2:40 PM

P_2x4T_123_A-3on 12/17/2007 3:43 PM

PLAQUETTE TESTED on 2007-12-17 by Ozhan Koybasi

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	144	156	142	150	146	142	156	134
Vana	144	158	134	137	144	141	154	128
Cal_Del	98	67	100	89	88	83	82	95
Vthrs_Comp	92	88	73	80	84	82	91	79
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	12	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	12	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

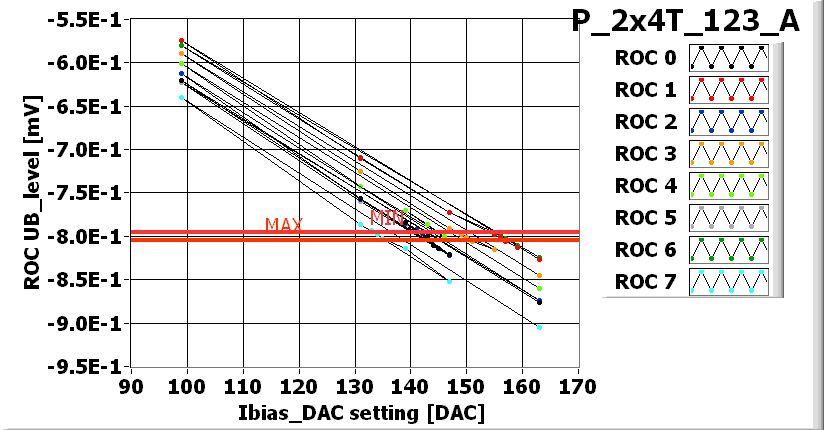

	I_BIAS_DAC_XML-File

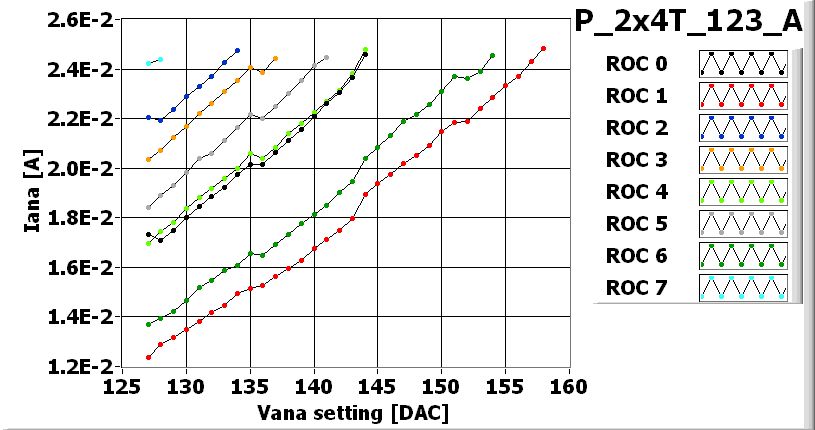

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	105	110	100	95	100	95	100	125
Vsf	145	150	140	140	140	140	150	135
VoffsetOp	100	115	90	90	90	105	120	95
VIbias_PH	95	100	105	105	100	100	100	95

Noise MAP at VMAX

Efficiency MAP

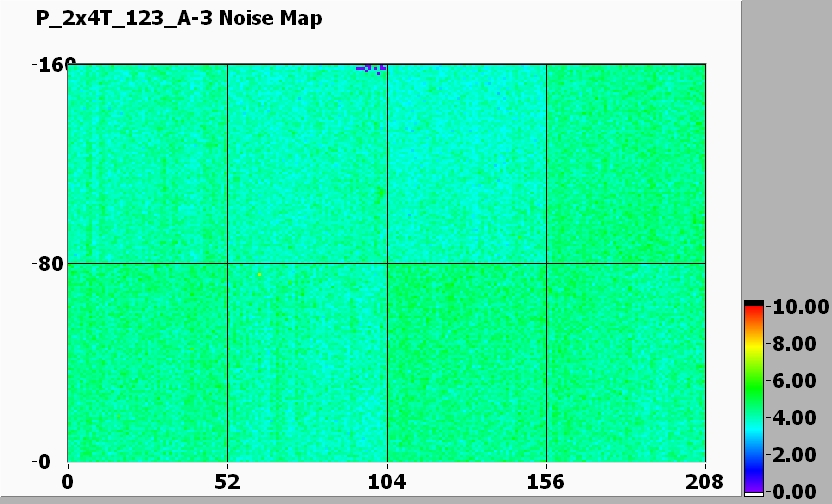

Noise MAP at -200 V

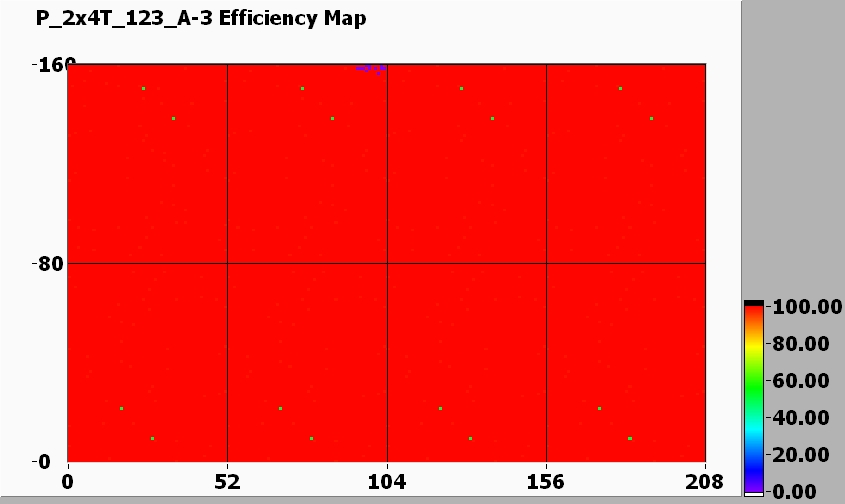

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-12-18
