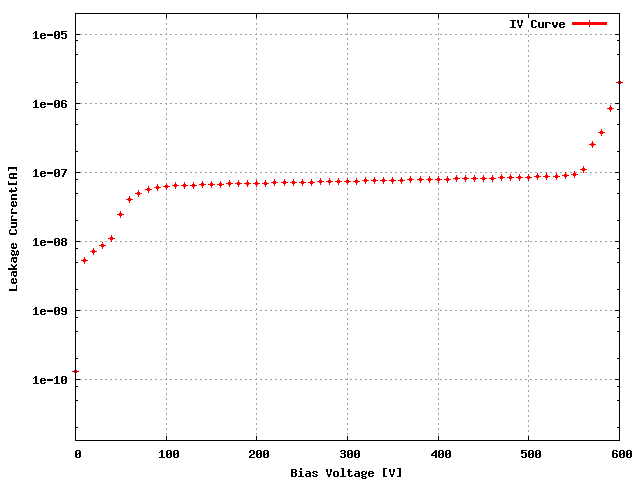

Sensor: S_2x4T_12, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	13D
ROC1	W47_DXLQF5T	13A
ROC2	W47_DXLQF5T	12D
ROC3	W47_DXLQF5T	12C
ROC4	W55_D3LQE4T	66C
ROC5	W52_DOLQC8T	55D
ROC6	W55_D3LQE4T	04D
ROC7	W55_D3LQE4T	67B

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data	142	156	142	150	146	142	156	134
Vana, VanaData	144	157	129	135	144	141	154	127
CalDelData and plots	98	67	100	89	88	83	82	95
VthrCompData and plots	92	88	69	79	84	82	91	78
TestDdata ,TestD Plots	1	0	0	0	0	0	14	0
LightData ,Light Plots	219	220	220	222	219	222	216	222
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	BAD	BAD	BAD	BAD	BAD	BAD	BAD	BAD

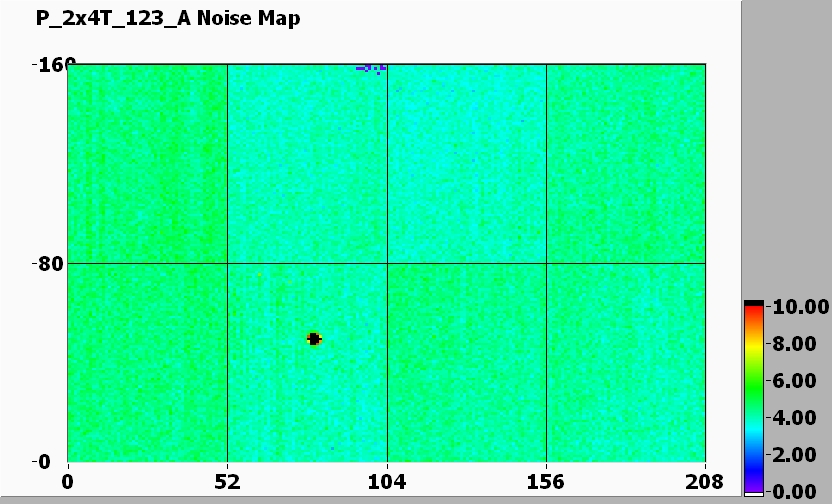

Noise MAP at VMAX

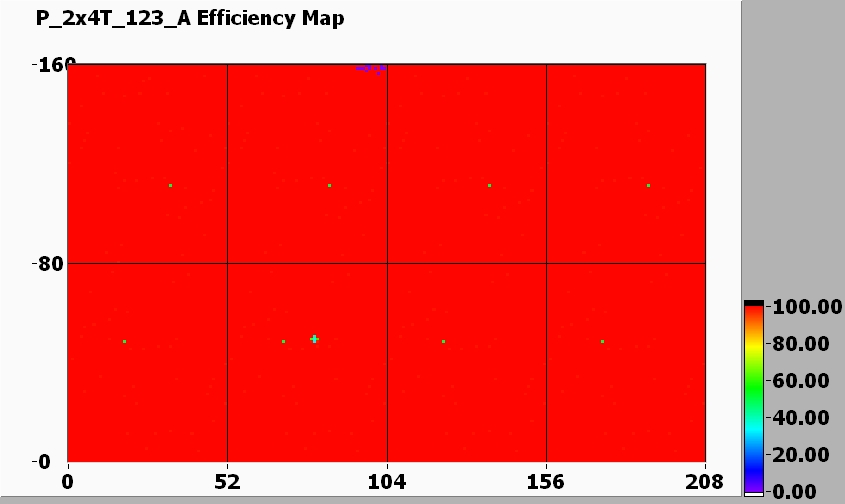

Efficiency MAP

EXTRA DACs for NOISE

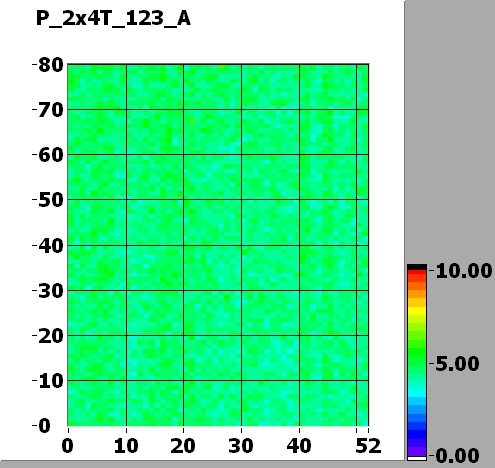

ROC0 NOISE			MEAN = 4.450356 SIGMA = 0.346885

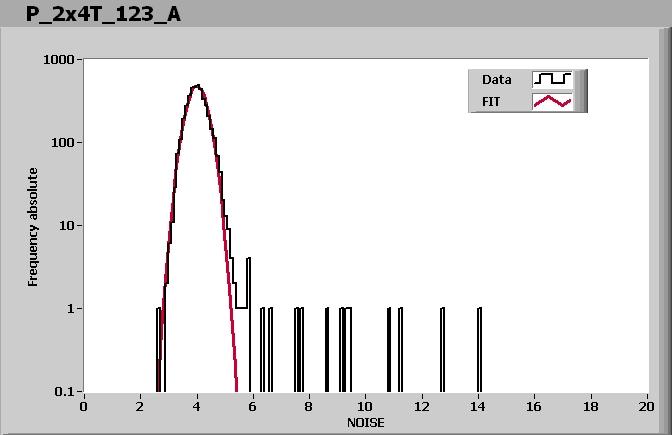

ROC1 NOISE			MEAN = 4.003679 SIGMA = 0.341074
ROC2 NOISE			MEAN = 4.262856 SIGMA = 0.338065

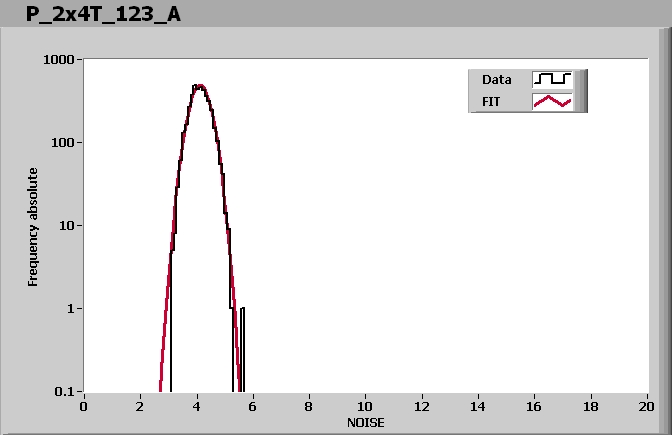

ROC3 NOISE			MEAN = 4.115483 SIGMA = 0.343483
ROC4 NOISE			MEAN = 4.269418 SIGMA = 0.335772

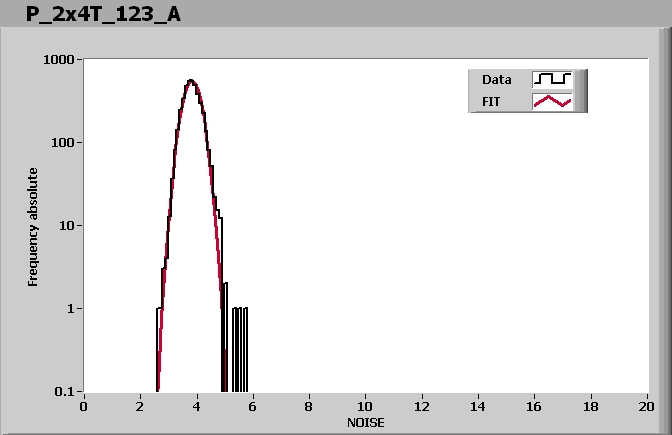

ROC5 NOISE			MEAN = 3.823512 SIGMA = 0.296043

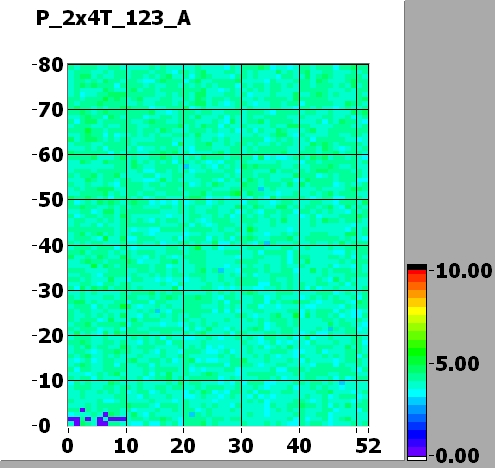

ROC6 NOISE			MEAN = 3.948617 SIGMA = 0.296785
ROC7 NOISE			MEAN = 4.490979 SIGMA = 0.362145

Comment (if any):

End testing time: 2:35 PM
