![[IMAGE] of](P_2x4T_110_C-0.jpg)
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_110-2x4T |
| VHDI | 2x4_505 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 34A |
| ROC1 | XW4KFXT | 32B |
| ROC2 | XW4KFXT | 31B |
| ROC3 | XW4KFXT | 31A |
| ROC4 | XW4KFXT | 37C |
| ROC5 | XW4KFXT | 37D |
| ROC6 | XW4KFXT | 38C |
| ROC7 | XW4KFXT | 38D |
Inspected by Arndt Kirk on date 4/12/2007
| Picture | Comment |
|---|---|

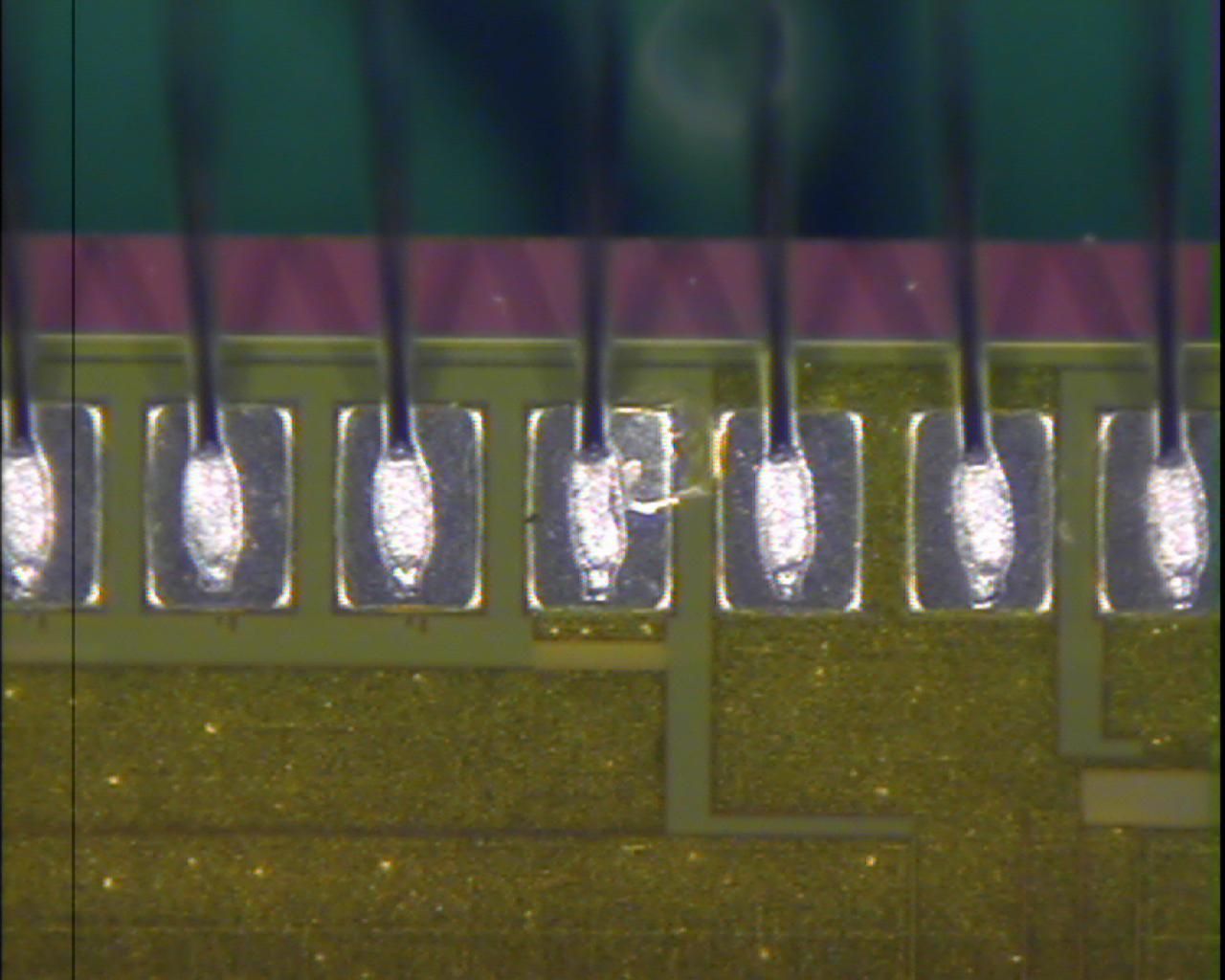

| Droplet od clear material overlapping ROC0 bond pad for channel 21 CAP_GND.. |
Inspected by Lockwood Gale on date 4/12/2007
| LR_dev | 0.077 |
| LL_dev | 0.083 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/12/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi
PLAQUETTE TESTED on 2007-04-13 by Cameron McKinney

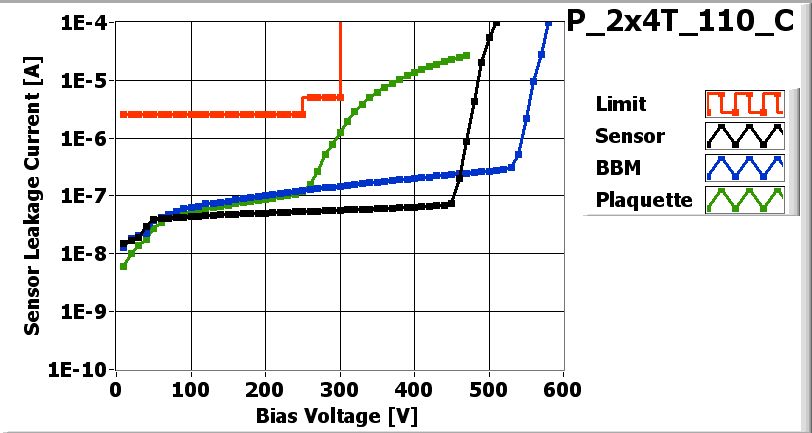

![[IMAGE] of](P_2x4T_110_C_IV.jpg) |
|
|||

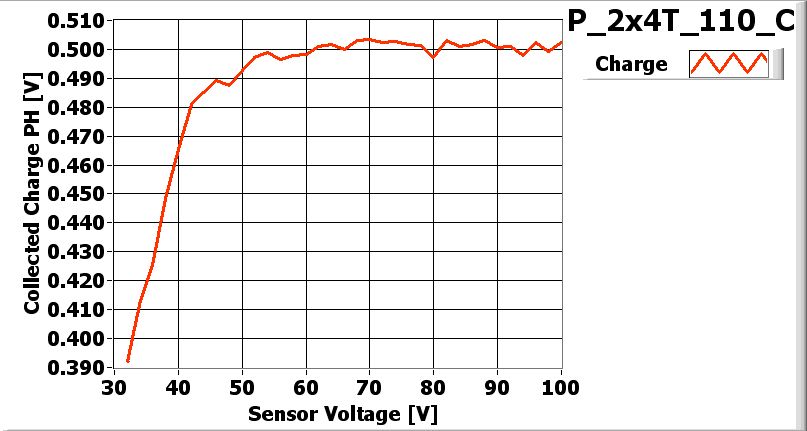

![[IMAGE] of](P_2x4T_110_C_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 128 | 134 | 144 | 132 | 142 | 130 | 140 | 144 | |
| Vana | 135 | 133 | 135 | 140 | 143 | 121 | 141 | 144 | |
| Cal_Del | 73 | 89 | 85 | 76 | 75 | 79 | 85 | 86 | |
| Vthrs_Comp | 82 | 70 | 74 | 84 | 88 | 74 | 74 | 76 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_110_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

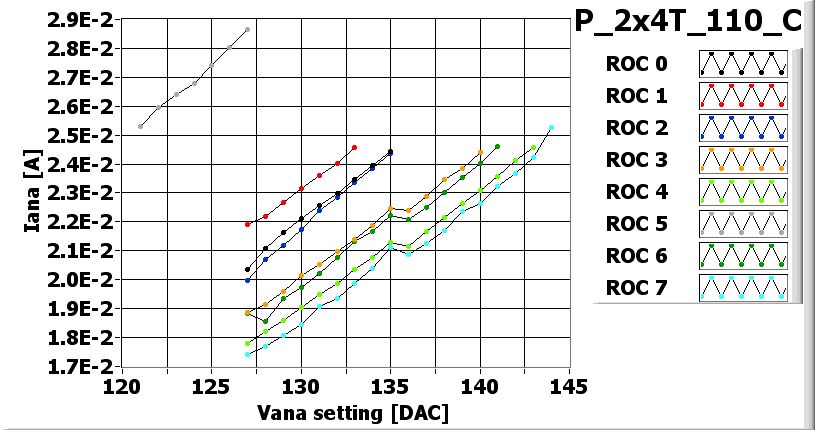

![[IMAGE] of](P_2x4T_110_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_110_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_110_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_110_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_110_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 100 | 115 | 90 | 110 | 145 | 100 | 100 |
| Vsf | 140 | 145 | 140 | 140 | 145 | 135 | 140 | 145 |
| VoffsetOp | 95 | 80 | 85 | 75 | 85 | 75 | 95 | 95 |
| VIbias_PH | 100 | 95 | 105 | 95 | 95 | 100 | 100 | 105 |

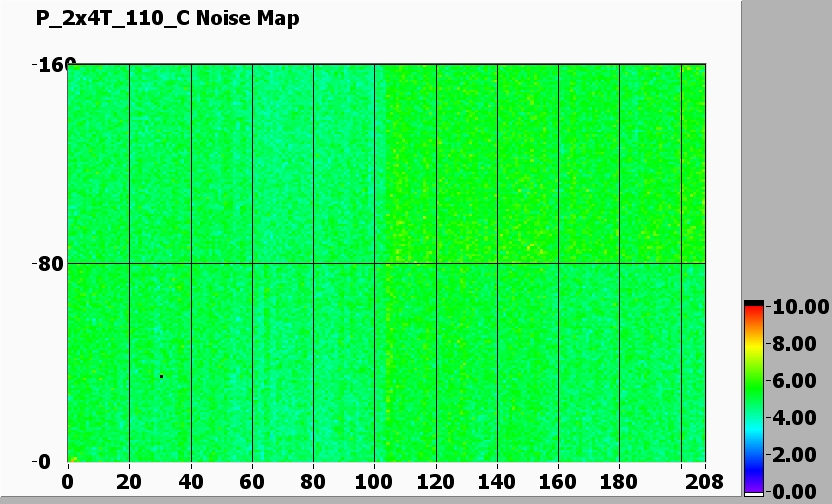

Noise MAP
![[IMAGE] of](P_2x4T_110_C-450-noise.jpg)

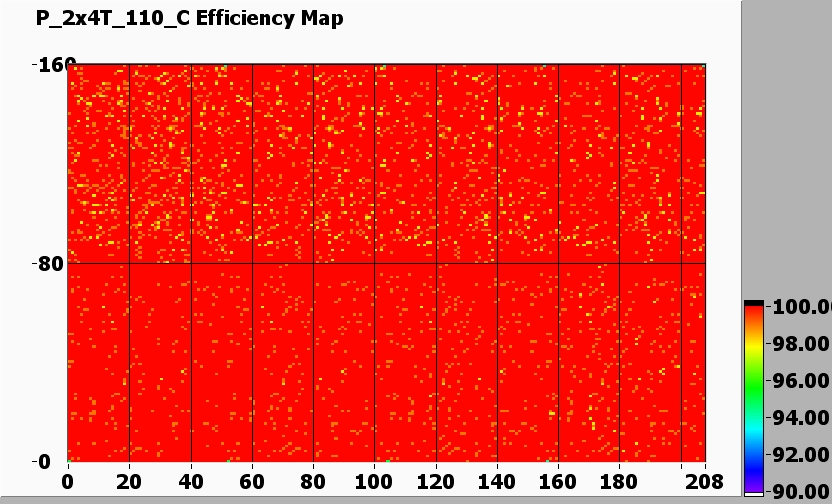

Efficiency MAP
![[IMAGE] of](P_2x4T_110_C-450-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
