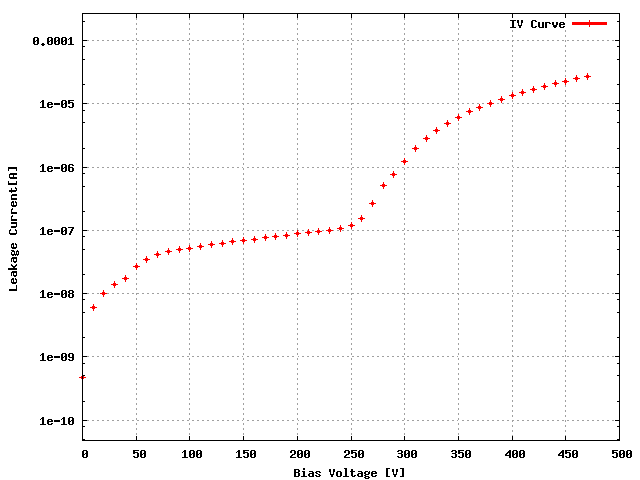

Sensor: S_2x4T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XW4KFXT | 34A |
ROC1 | XW4KFXT | 32B |
ROC2 | XW4KFXT | 31B |
ROC3 | XW4KFXT | 31A |
ROC4 | XW4KFXT | 37C |
ROC5 | XW4KFXT | 37D |
ROC6 | XW4KFXT | 38C |
ROC7 | XW4KFXT | 38D |
Ibias_DAC, Ibias_DAC Data | 128 | 134 | 144 | 132 | 142 | 130 | 140 | 144 |
Vana, VanaData | 135 | 133 | 135 | 140 | 143 | 121 | 141 | 144 |
CalDelData and plots | 73 | 89 | 85 | 76 | 75 | 79 | 85 | 86 |
VthrCompData and plots | 82 | 70 | 74 | 84 | 88 | 74 | 74 | 76 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 2 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

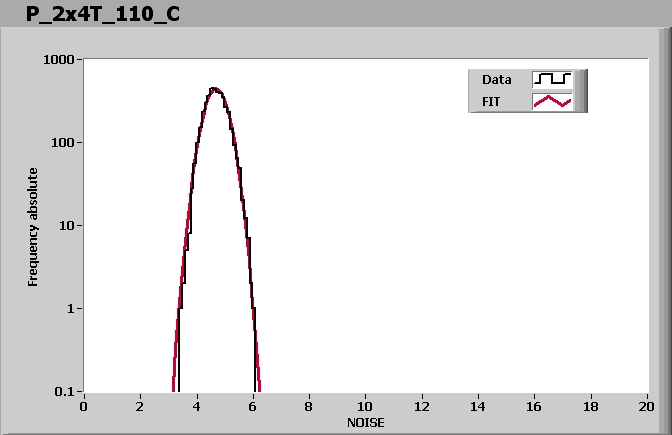

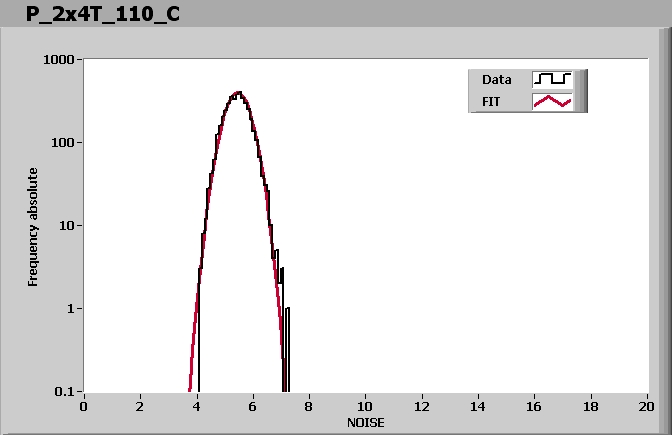

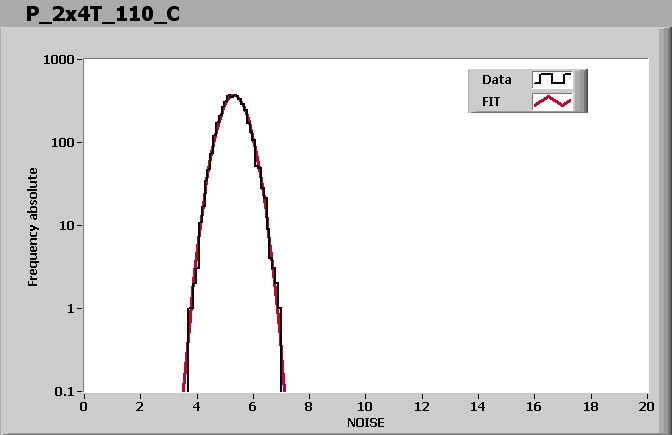

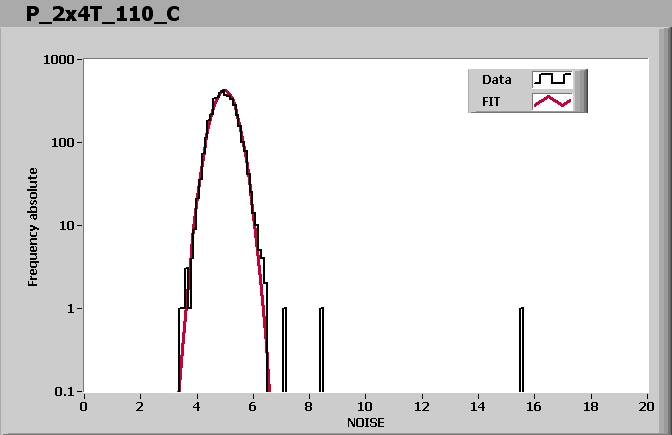

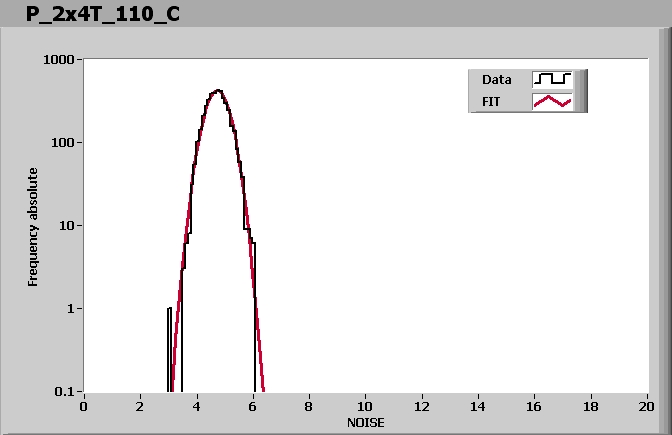

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 95 | 100 | 115 | 90 | 110 | 145 | 100 | 100 |
Vsf | 140 | 145 | 140 | 140 | 145 | 135 | 140 | 145 |
VoffsetOp | 95 | 80 | 85 | 75 | 85 | 75 | 95 | 95 |
VIbias_PH | 100 | 95 | 105 | 95 | 95 | 100 | 100 | 105 |
Comment (if any): Good.
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:36 PM
