P_2x4T_110_C-1

Production testing

Date:5/18/2007

Operator: Gino Bolla

start testing time:6:25 AM

Sensor: S_2x4T_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROCROC waferLabel
ROC0XW4KFXT34A
ROC1XW4KFXT32B
ROC2XW4KFXT31B
ROC3XW4KFXT31A
ROC4XW4KFXT37C
ROC5XW4KFXT37D
ROC6XW4KFXT38C
ROC7XW4KFXT38D

Inspected by Arndt Kirk on date 4/12/2007
PictureComment
[IMAGE] of Droplet od clear material overlapping ROC0 bond pad for channel 21 CAP_GND..

Inspected by Lockwood Gale on date 4/12/2007
LR_dev0.077
LL_dev0.083

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood GaleNo assembly problems. Assembled at HALF-PRESSURE.No wirebond problems.

PLAQUETTE made READY for ENCAPSULATION on 4/12/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi

P_2x4T_110_C.html

PLAQUETTE TESTED on 2007-04-13 by Cameron McKinney

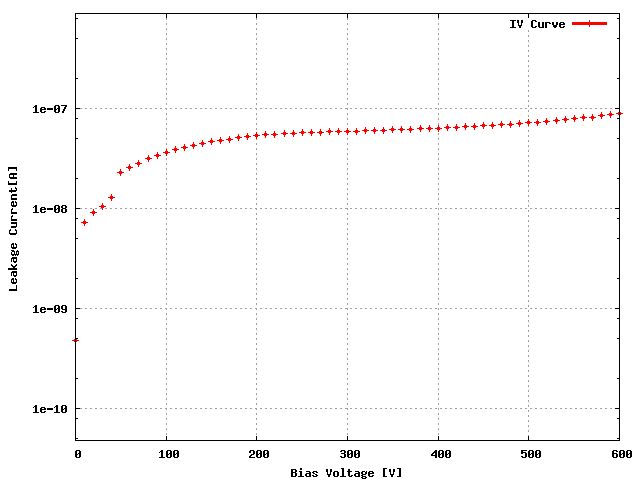

[IMAGE] of
IV_XML-File
Maximum Voltage 470 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 46 V
Operational Voltage 86 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7
Ibias_DAC128134144132142130140144
Vana135133135140143121141144
Cal_Del7389857675798586
Vthrs_Comp8270748488747476
Unbumped00000000
Dead00000000
Noisy00000000
Undecoded00000000
Total BAD00000000

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
[IMAGE] of I_BIAS_DAC_XML-File
[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File
[IMAGE] of LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe9510011590110145100100
Vsf140145140140145135140145
VoffsetOp9580857585759595
VIbias_PH100951059595100100105

Ibias_DAC, Ibias_DAC Data 150 174 154 164 160 144 160 154
Vana, VanaData 131 134 137 134 144 144 135 153
