| IV_XML-File |

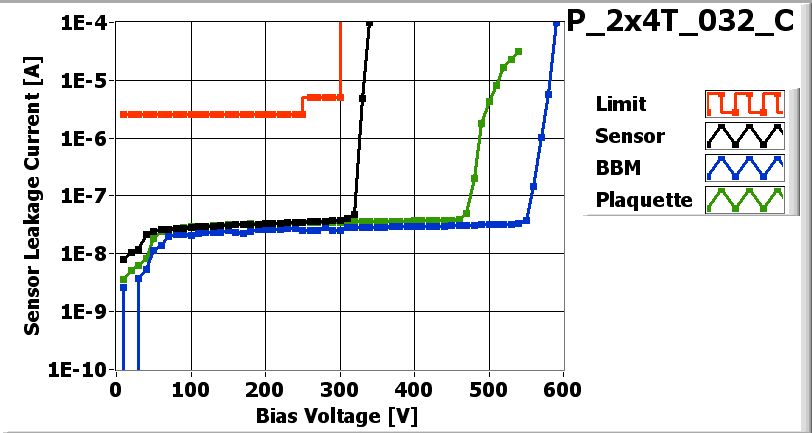

| Maximum Voltage 540 V |
![[IMAGE] of](P_2x4T_032_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/10/2007
| Part | ID |
|---|---|
| BBM | BBM_032-2x4T |
| VHDI | 2x4_500 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XW4KFXT | 13D |
| ROC1 | XW4KFXT | 14D |
| ROC2 | XW4KFXT | 16C |
| ROC3 | XW4KFXT | 17A |
| ROC4 | XW4KFXT | 15D |
| ROC5 | XW4KFXT | 16D |
| ROC6 | XW4KFXT | 16A |
| ROC7 | XW4KFXT | 12D |
Inspected by Lockwood Gale on date 4/11/2007
| LR_dev | 0.055 |
| LL_dev | 0.039 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | No assembly problems. Assembled at HALF-PRESSURE.No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 4/13/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 4/13/2007 by Ozhan Koybasi
PLAQUETTE TESTED on 2007-04-13 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 142 | 134 | 140 | 140 | 130 | 140 | 134 | 130 | |
| Vana | 137 | 134 | 120 | 124 | 129 | 129 | 134 | 137 | |
| Cal_Del | 96 | 79 | 93 | 92 | 104 | 83 | 69 | 95 | |
| Vthrs_Comp | 72 | 80 | 73 | 74 | 63 | 74 | 75 | 71 | |
| Unbumped | 0 | 3 | 0 | 0 | 7 | 0 | 24 | 15 | |
| Dead | 0 | 6 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 9 | 0 | 0 | 7 | 0 | 24 | 15 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_032_C_Ibias-dac.jpg) |

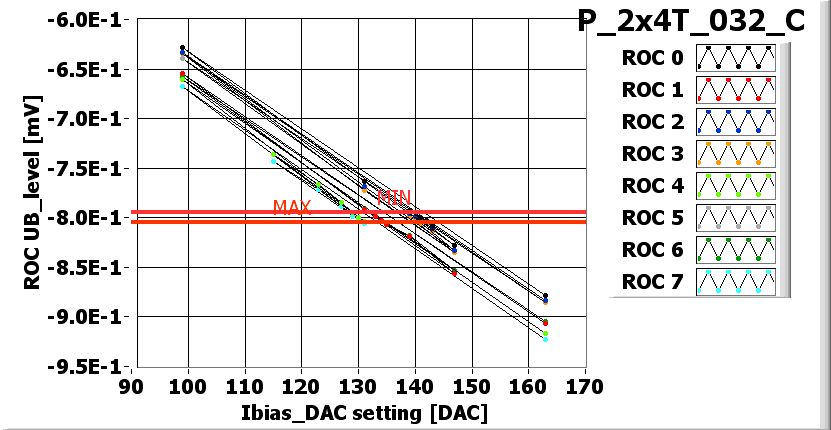

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4T_032_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_032_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_032_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_032_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_032_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 135 | 140 | 165 | 120 | 125 | 110 | 105 |
| Vsf | 140 | 140 | 135 | 135 | 140 | 140 | 140 | 140 |
| VoffsetOp | 80 | 80 | 70 | 80 | 60 | 80 | 75 | 90 |
| VIbias_PH | 95 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |

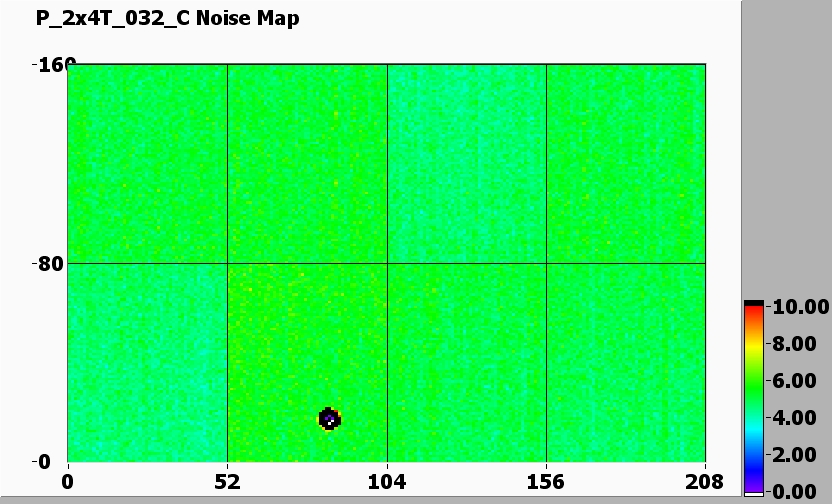

Noise MAP
![[IMAGE] of](P_2x4T_032_C-520-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_032_C-520-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
