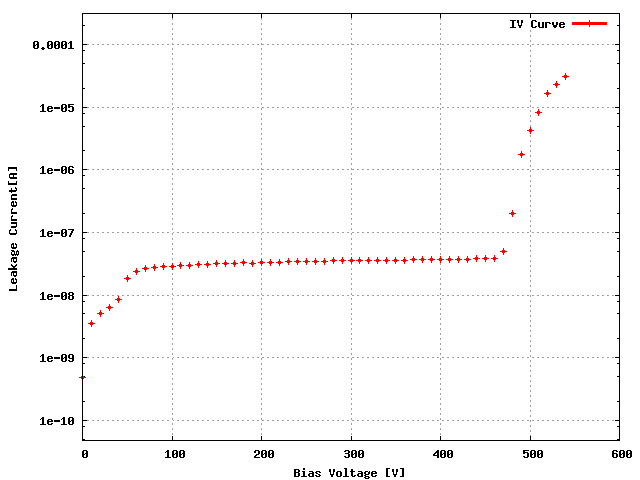

Sensor: S_2x4T_03, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XW4KFXT | 13D |
ROC1 | XW4KFXT | 14D |
ROC2 | XW4KFXT | 16C |
ROC3 | XW4KFXT | 17A |
ROC4 | XW4KFXT | 15D |
ROC5 | XW4KFXT | 16D |
ROC6 | XW4KFXT | 16A |
ROC7 | XW4KFXT | 12D |
Ibias_DAC, Ibias_DAC Data | 142 | 134 | 140 | 140 | 130 | 140 | 134 | 130 |
Vana, VanaData | 137 | 134 | 120 | 124 | 129 | 129 | 134 | 137 |
CalDelData and plots | 96 | 79 | 93 | 92 | 104 | 83 | 69 | 95 |
VthrCompData and plots | 72 | 80 | 73 | 74 | 63 | 74 | 75 | 71 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 10 | 0 | 4 | 0 | 0 | 1 | 2 |
LightData ,Light Plots | 0 | 3 | 0 | 0 | 7 | 0 | 24 | 15 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

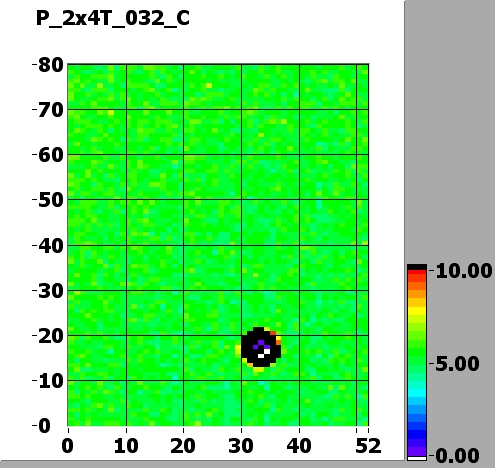

Noise MAP
Efficiency MAP

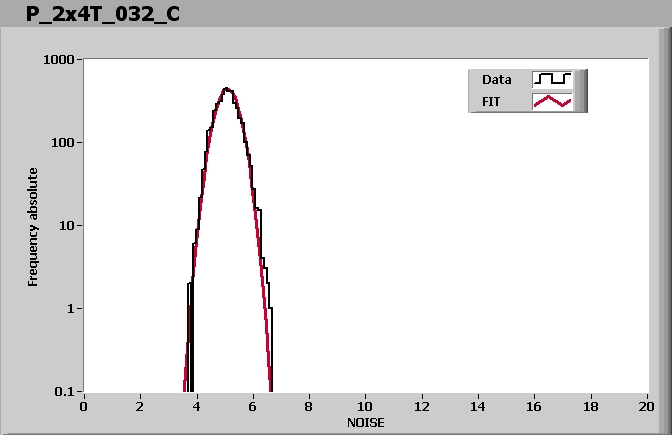

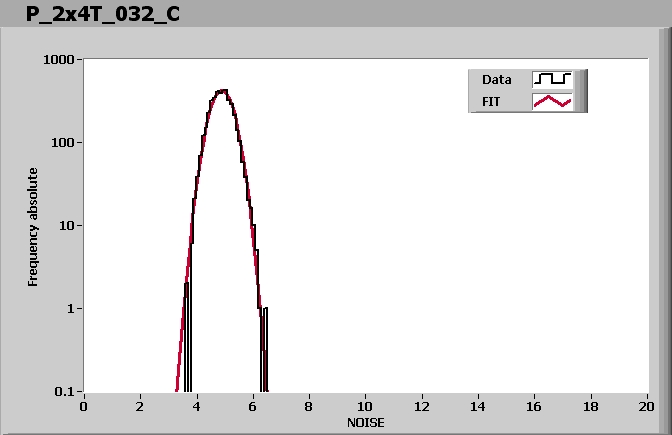

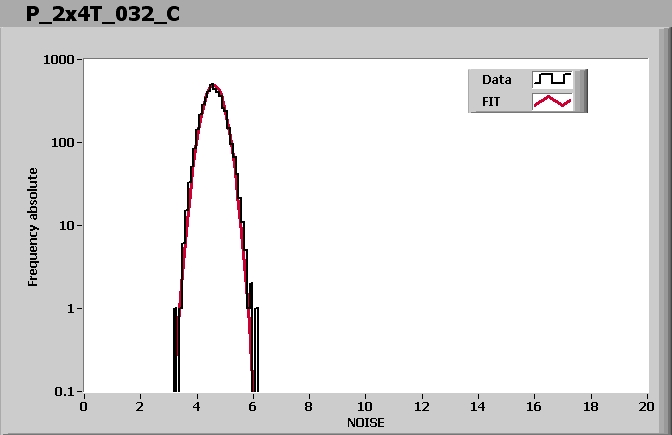

EXTRA DACs for NOISE
VHldDe | 95 | 135 | 140 | 165 | 120 | 125 | 110 | 105 |
Vsf | 140 | 140 | 135 | 135 | 140 | 140 | 140 | 140 |
VoffsetOp | 80 | 80 | 70 | 80 | 60 | 80 | 75 | 90 |
VIbias_PH | 95 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 5:46 PM
