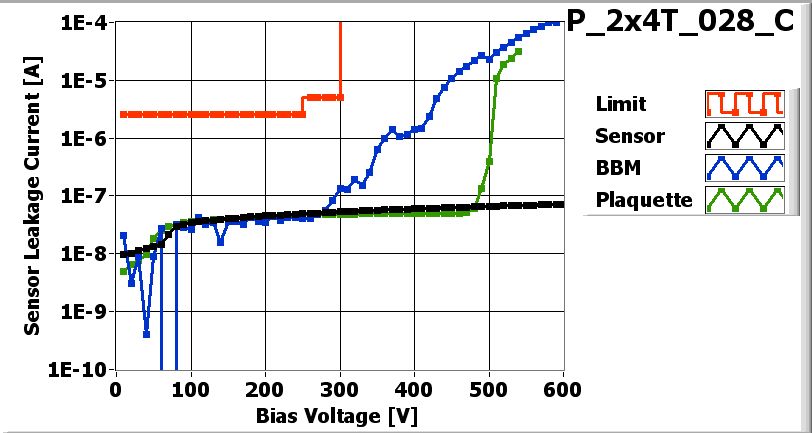

![[IMAGE] of](P_2x4T_028_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 540 V |

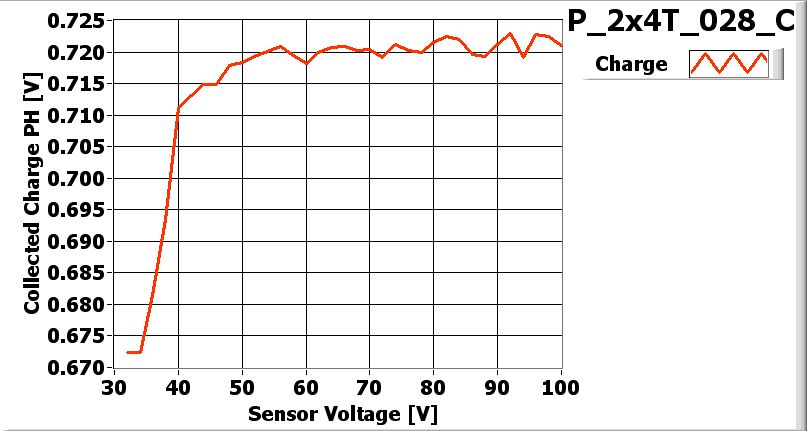

![[IMAGE] of](P_2x4T_028_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_028-2x4T |
| VHDI | 2x4_436 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 30B |
| ROC1 | XE4K3KT | 29B |
| ROC2 | XE4K3KT | 30C |
| ROC3 | XE4K3KT | 31D |
| ROC4 | XE4K3KT | 30A |
| ROC5 | XE4K3KT | 39D |
| ROC6 | XE4K3KT | 39C |
| ROC7 | XE4K3KT | 31B |
Inspected by Lockwood Gale on date 2/9/2007
| LR_dev | 0.065 |
| LL_dev | 0.096 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale
P_2x4T_028_Con 2/9/2007 4:38 PM
P_2x4T_028_Con 2/9/2007 4:38 PM
PLAQUETTE TESTED on 2007-02-09 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 122 | 140 | 140 | 134 | 134 | 134 | 142 | 150 | |
| Vana | 112 | 124 | 131 | 130 | 125 | 143 | 141 | 157 | |
| Cal_Del | 94 | 78 | 76 | 84 | 80 | 87 | 73 | 75 | |
| Vthrs_Comp | 58 | 74 | 73 | 79 | 69 | 74 | 82 | 92 | |
| Unbumped | 0 | 5 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 1 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 4 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 6 | 0 | 0 | 0 | 1 | 0 | 4 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

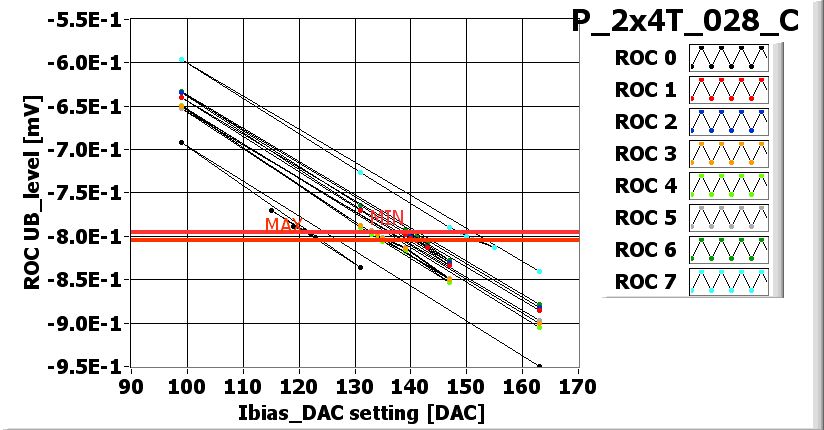

![[IMAGE] of](P_2x4T_028_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

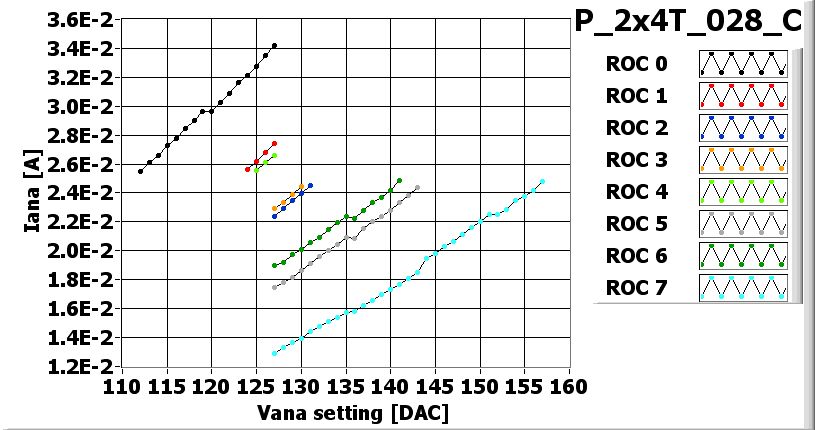

![[IMAGE] of](P_2x4T_028_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_028_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_028_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_028_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_028_Cno-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_2x4T_028_C-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_028_C-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC0-HISTO.jpg) | MEAN = 4.000415SIGMA = 0.295202 |
| ROC1 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC1-HISTO.jpg) | MEAN = 4.426165SIGMA = 0.345504 |
| ROC2 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC2-HISTO.jpg) | MEAN = 3.988052SIGMA = 0.322323 |
| ROC3 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC3-HISTO.jpg) | MEAN = 4.753833SIGMA = 0.369931 |
| ROC4 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC4-HISTO.jpg) | MEAN = 4.854372SIGMA = 0.392354 |
| ROC5 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC5-HISTO.jpg) | MEAN = 5.916592SIGMA = 0.442060 |
| ROC6 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC6-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC6-HISTO.jpg) | MEAN = 5.544884SIGMA = 0.416186 |
| ROC7 NOISE | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC7-MAP.jpg) | ![[IMAGE] of](P_2x4T_028_C-100-noise-ROC7-HISTO.jpg) | MEAN = 5.501713SIGMA = 0.436816 |

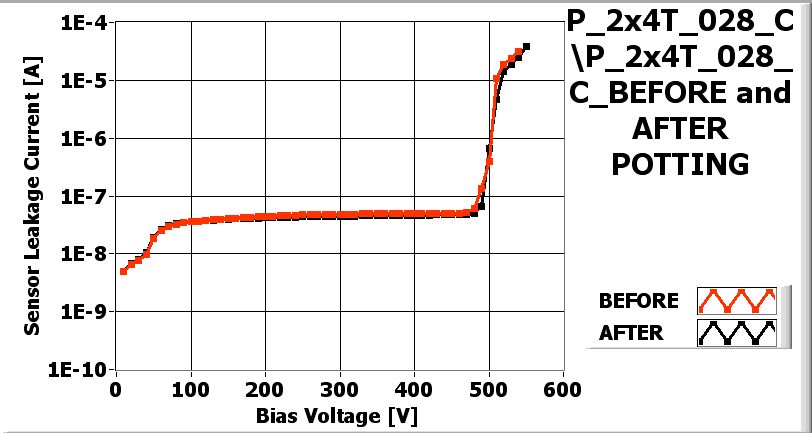

PLAQUETTE READY TO BE POTTED
