Sensor: S_2x4T_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XE4K3KT	30B
ROC1	XE4K3KT	29B
ROC2	XE4K3KT	30C
ROC3	XE4K3KT	31D
ROC4	XE4K3KT	30A
ROC5	XE4K3KT	39D
ROC6	XE4K3KT	39C
ROC7	XE4K3KT	31B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	122	140	140	134	134	134	142	150
Vana, VanaData	112	124	131	130	125	143	141	157
CalDelData and plots	94	78	76	84	80	87	73	75
VthrCompData and plots	58	74	73	79	69	74	82	92
TestDdata ,TestD Plots	0	6	0	1	0	1	0	4
LightData ,Light Plots	0	5	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

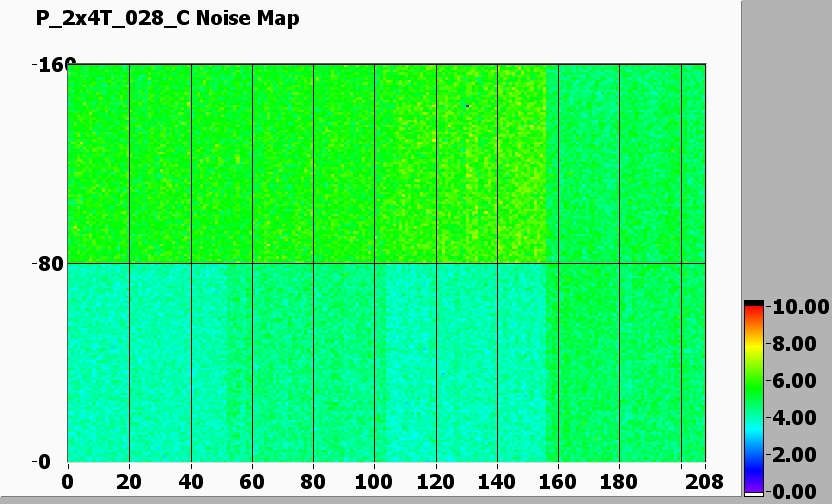

Noise MAP

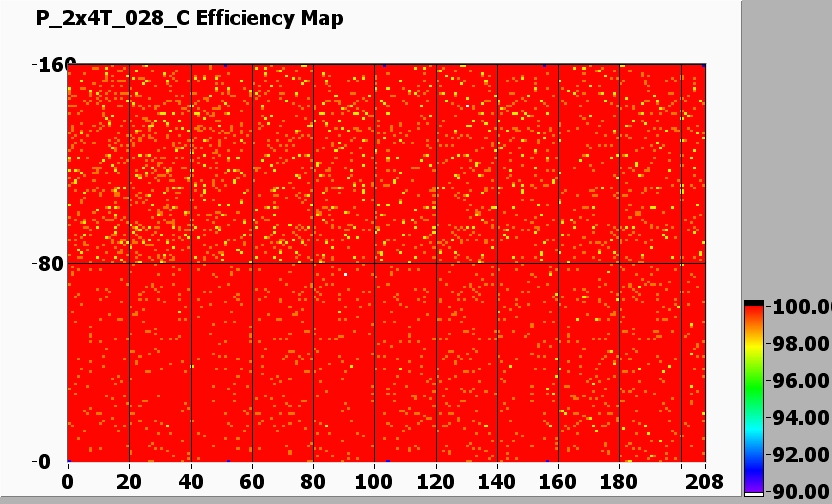

Efficiency MAP

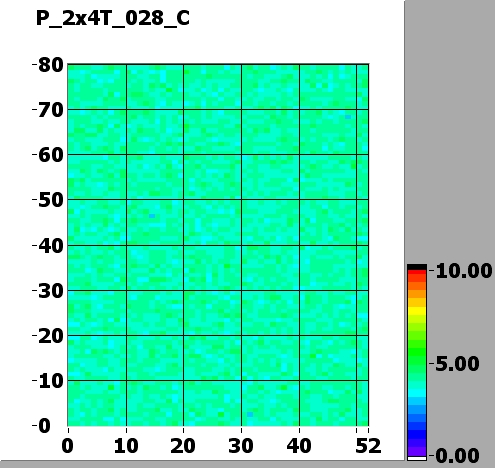

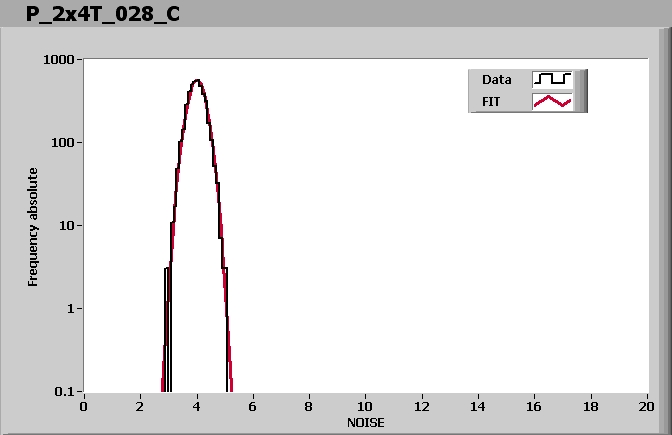

ROC0 NOISE			MEAN = 4.000415 SIGMA = 0.295202

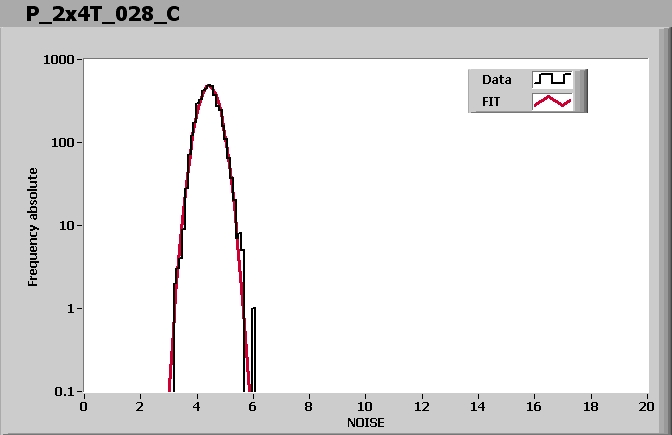

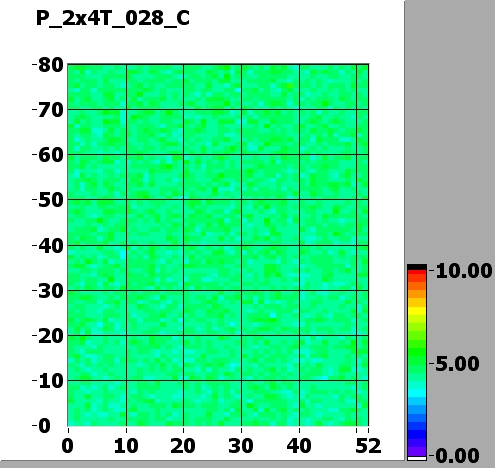

ROC1 NOISE			MEAN = 4.426165 SIGMA = 0.345504

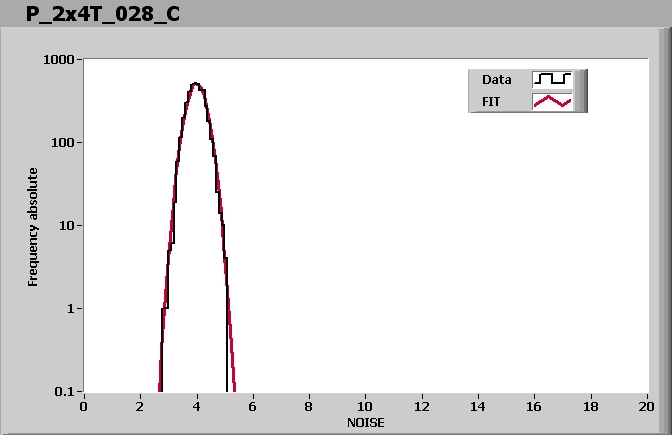

ROC2 NOISE			MEAN = 3.988052 SIGMA = 0.322323
ROC3 NOISE			MEAN = 4.753833 SIGMA = 0.369931

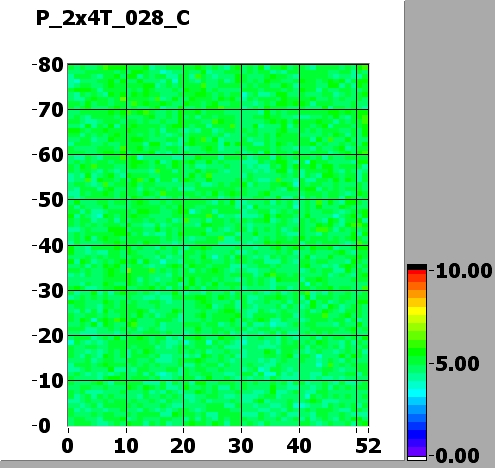

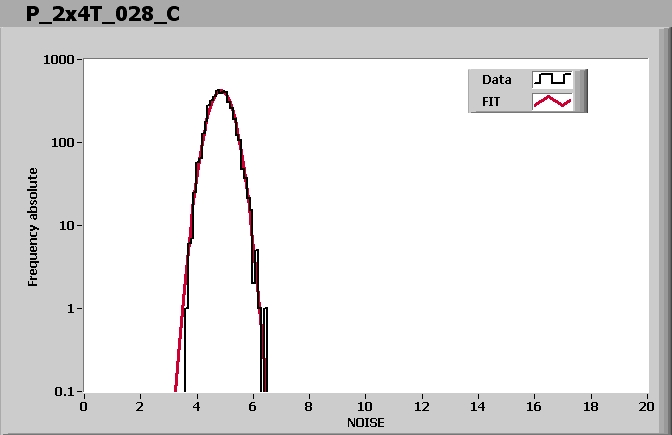

ROC4 NOISE			MEAN = 4.854372 SIGMA = 0.392354

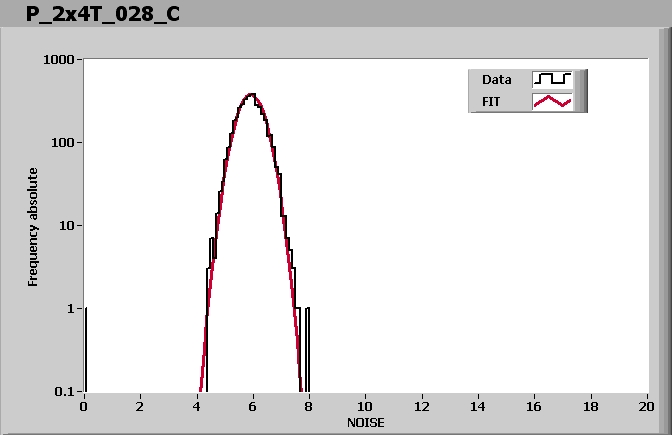

ROC5 NOISE			MEAN = 5.916592 SIGMA = 0.442060

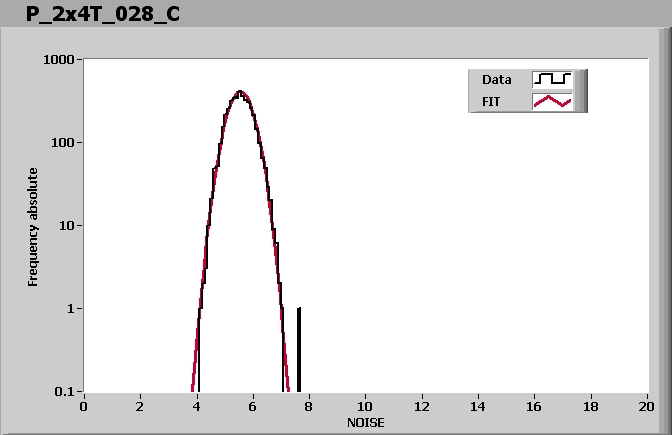

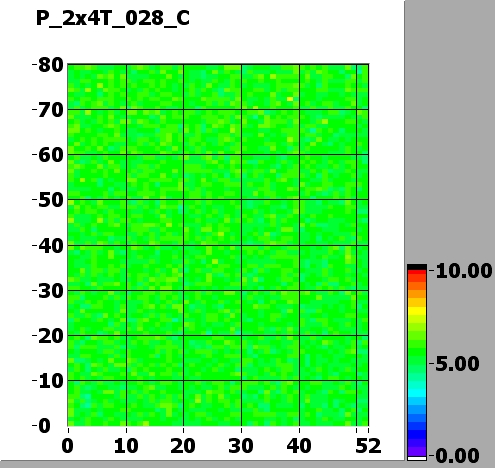

ROC6 NOISE			MEAN = 5.544884 SIGMA = 0.416186

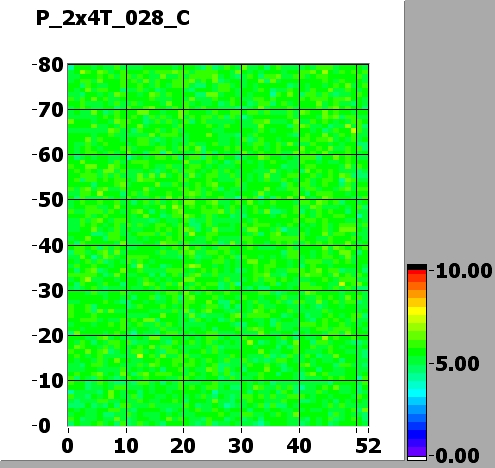

ROC7 NOISE			MEAN = 5.501713 SIGMA = 0.436816

Comment (if any): Okay

End testing time: 5:01 PM
