P_2x4T_025

P_2x4T_025_C

Parts committed by Bolla Gino on date 1/16/2007

Part	ID
BBM	BBM_025-2x4T
VHDI	2x4_264

ROC ROC wafer Label

ROC0 XE4KFET 25B

ROC1 XE4KFET 23B

ROC2 XE4KFET 21C

ROC3 XE4KFET 36D

ROC4 XE4KFET 20A

ROC5 XE4KFET 22D

ROC6 XE4KFET 20D

ROC7 XE4KFET 37D

ROC	ROC wafer	Label
ROC0	XE4KFET	25B
ROC1	XE4KFET	23B
ROC2	XE4KFET	21C
ROC3	XE4KFET	36D
ROC4	XE4KFET	20A
ROC5	XE4KFET	22D
ROC6	XE4KFET	20D
ROC7	XE4KFET	37D

Inspected by Lockwood Gale on date 1/18/2007

LR_dev 0.040

LL_dev 0.031

FINAL COMMENT by Lockwood Gale No assembly problems. No wirebonding problems.

PLAQUETTE made READY for testing on 1/18/2007 by Lockwood Gale

P_2x4T_025_Con 1/18/2007 2:09 PM

PLAQUETTE TESTED on 2007-01-18 by Gino Bolla

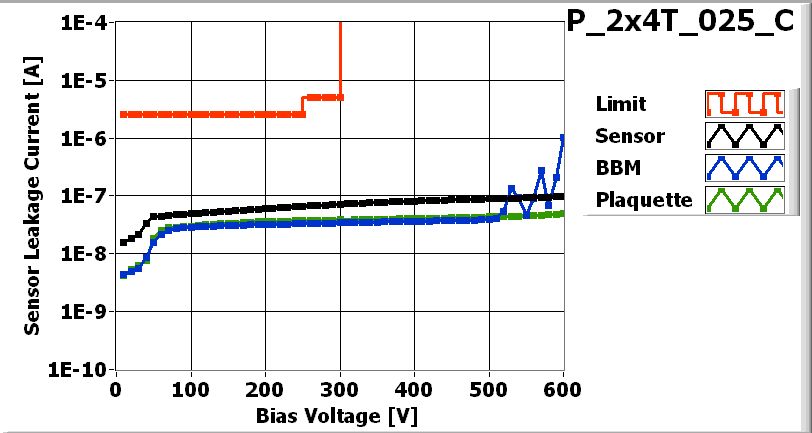

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	140	118	118	138	146	132	132	126
Vana	139	133	126	137	138	134	110	111
Cal_Del	89	97	92	76	81	87	82	86
Vthrs_Comp	79	66	64	79	79	71	70	63
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

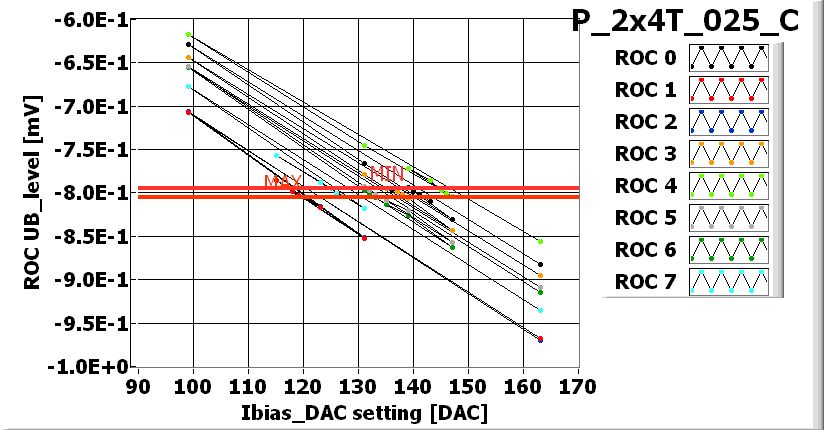

	I_BIAS_DAC_XML-File

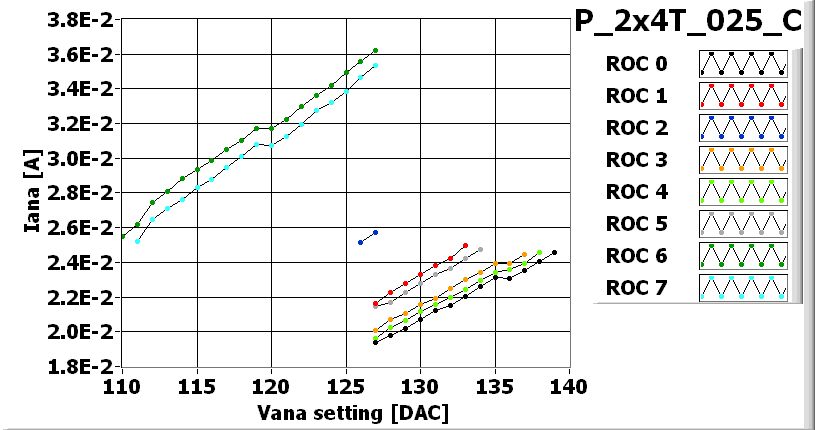

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 1/24/2007 by Arndt Kirk

P_2x4T_025_C-1on 1/24/2007 11:22 AM

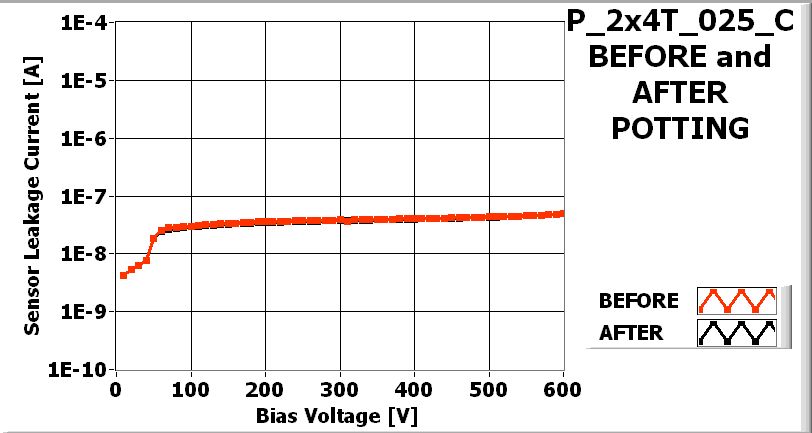

P_2x4T_025_C-1on 1/24/2007 11:22 AM AFTER POTTING

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 0/0 0/0

ROC1 0/0 0/0 0/0 0/0 0/0

ROC2 0/0 0/0 0/0 0/0 0/0

ROC3 0/0 0/0 0/0 0/0 0/0

ROC4 0/0 0/0 0/0 0/0 0/0

ROC5 0/0 0/0 0/0 0/1 0/0

ROC6 0/0 0/0 0/0 1/0 0/0

ROC7 0/0 0/0 0/0 0/0 0/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-01-24

Plaquette assigned to panel P4L_026
