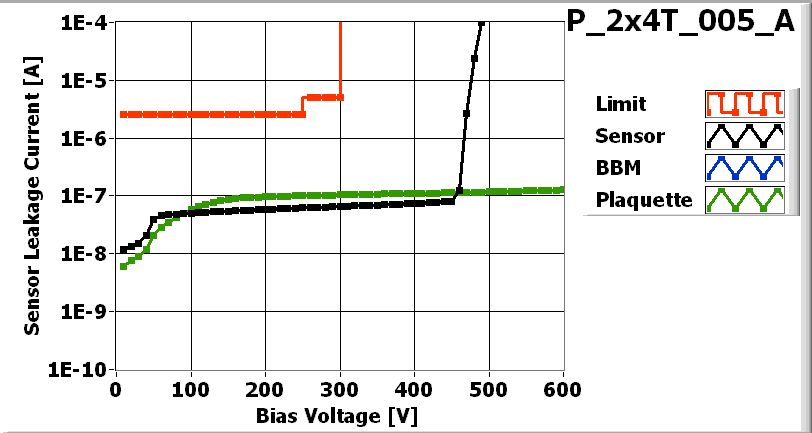

![[IMAGE] of](P_2x4T_005_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

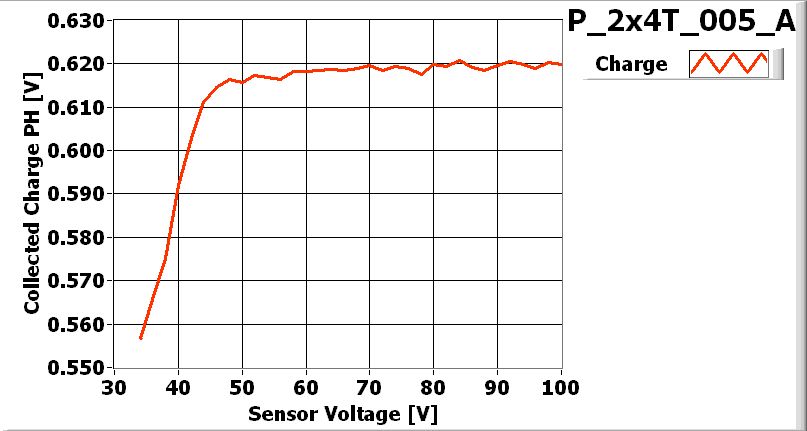

![[IMAGE] of](P_2x4T_005_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 11/8/2007
| Part | ID |
|---|---|
| BBM | BBM_005-2x4T |
| VHDI | 2x4_710 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 74A |
| ROC1 | W55_D3LQE4T | 74B |
| ROC2 | W55_D3LQE4T | 74C |
| ROC3 | W55_D3LQE4T | 74D |
| ROC4 | W46_D3LQC5T | 17B |
| ROC5 | W46_D3LQC5T | 17A |
| ROC6 | W46_D3LQC5T | 15D |
| ROC7 | W46_D3LQC5T | 15C |
Inspected by Lockwood Gale on date 11/21/2007
| LR_dev | 0.042 |
| LL_dev | 0.046 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 6,Ch 34,35, 2Fl, 4 tries scrap, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 11/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 11/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 11/21/2007 by Ozhan Koybasi
P_2x4T_005_Aon 11/26/2007 4:44 PM
P_2x4T_005_A-1on 11/26/2007 5:01 PM
P_2x4T_005_A-2on 11/26/2007 5:06 PM
P_2x4T_005_A-3on 11/28/2007 6:40 PM
P_2x4T_005_A-3on 11/28/2007 6:40 PM
PLAQUETTE TESTED on 2007-11-28 by Ozhan Koybasi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 170 | 150 | 158 | 154 | 156 | 158 | 156 | 152 | |
| Vana | 130 | 156 | 149 | 140 | 144 | 138 | 147 | 157 | |
| Cal_Del | 90 | 83 | 82 | 98 | 93 | 87 | 83 | 95 | |
| Vthrs_Comp | 83 | 89 | 87 | 83 | 84 | 90 | 93 | 94 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_005_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

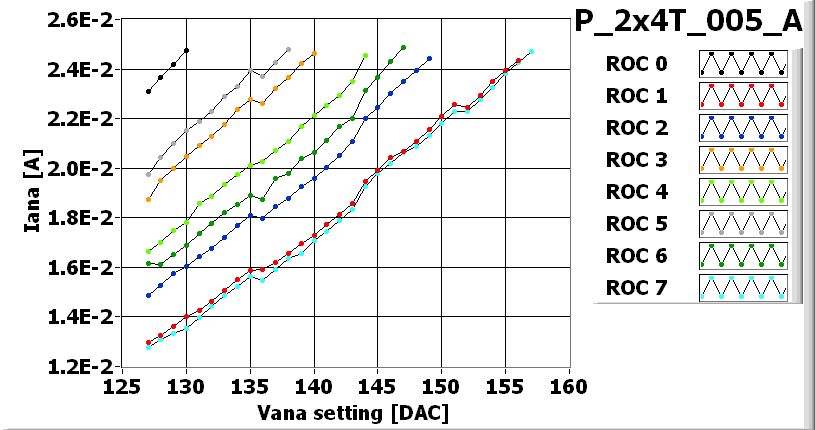

![[IMAGE] of](P_2x4T_005_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_005_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_005_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_005_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_005_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 130 | 90 | 100 | 100 | 95 | 100 | 105 | 100 |
| Vsf | 140 | 155 | 150 | 140 | 145 | 140 | 145 | 150 |
| VoffsetOp | 95 | 105 | 115 | 85 | 85 | 105 | 110 | 100 |
| VIbias_PH | 100 | 100 | 100 | 100 | 95 | 105 | 100 | 100 |
Noise MAP at VMAX
![[IMAGE] of](P_2x4T_005_A-3-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_005_A-3-580-efficiency.jpg)

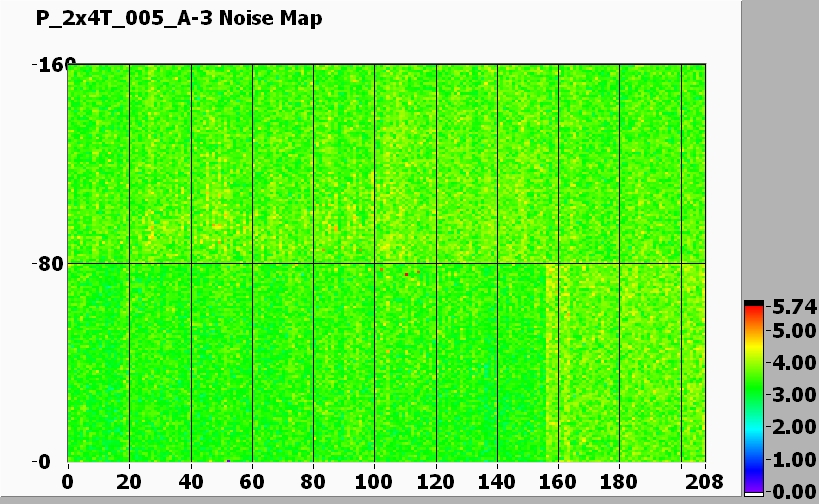

Noise MAP at -200 V
![[IMAGE] of](P_2x4T_005_A-3-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4T_005_A-3-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
