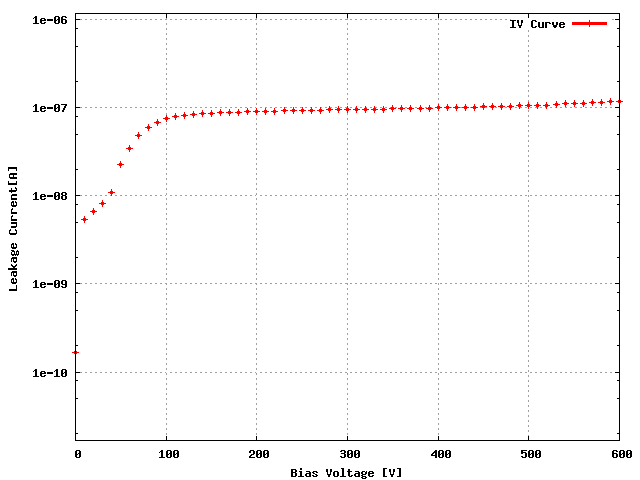

Sensor: S_2x4T_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor
Ibias_DAC, Ibias_DAC Data | 170 | 150 | 158 | 154 | 156 | 158 | 156 | 152 |
Vana, VanaData | 130 | 156 | 149 | 140 | 144 | 138 | 147 | 156 |
CalDelData and plots | 90 | 83 | 82 | 98 | 93 | 87 | 83 | 95 |
VthrCompData and plots | 83 | 89 | 87 | 83 | 84 | 90 | 93 | 93 | Depletion Voltage is -72 and suggested operational voltage is -112
TestDdata ,TestD Plots | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
