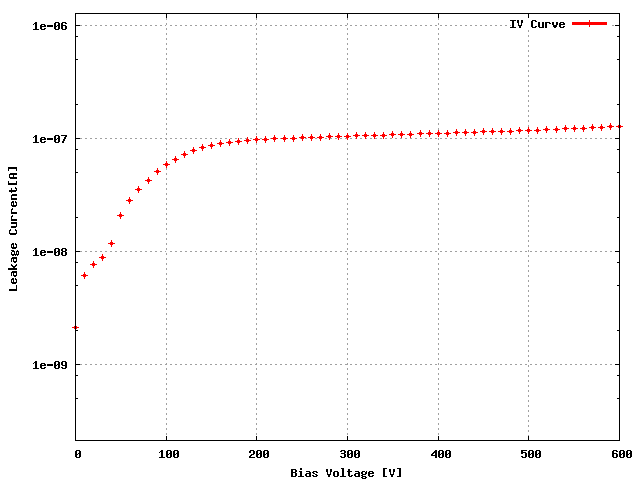

Sensor: S_2x4T_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W55_D3LQE4T	74A
ROC1	W55_D3LQE4T	74B
ROC2	W55_D3LQE4T	74C
ROC3	W55_D3LQE4T	74D
ROC4	W46_D3LQC5T	17B
ROC5	W46_D3LQC5T	17A
ROC6	W46_D3LQC5T	15D
ROC7	W46_D3LQC5T	15C

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	170	150	158	154	156	158	156	152
Vana, VanaData	130	156	149	140	144	138	147	157
CalDelData and plots	90	83	82	98	93	87	83	95
VthrCompData and plots	83	89	87	83	84	90	93	94
TestDdata ,TestD Plots	10	1	0	0	383	213	31	7
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	BAD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

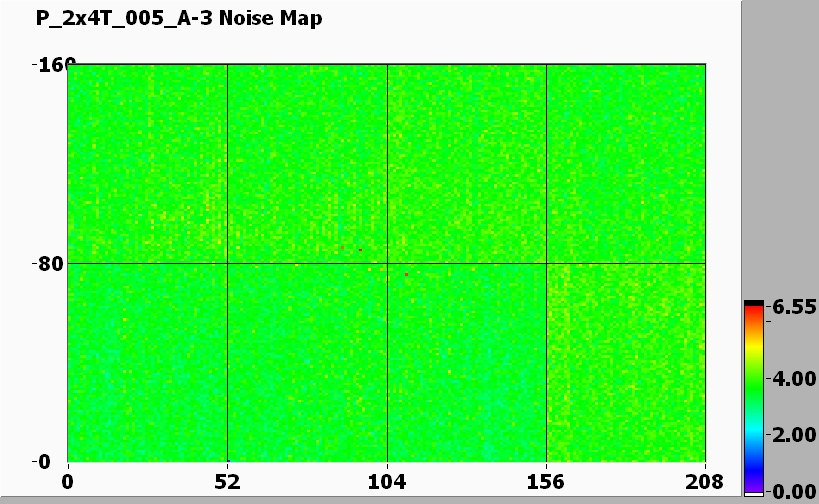

Noise MAP at VMAX

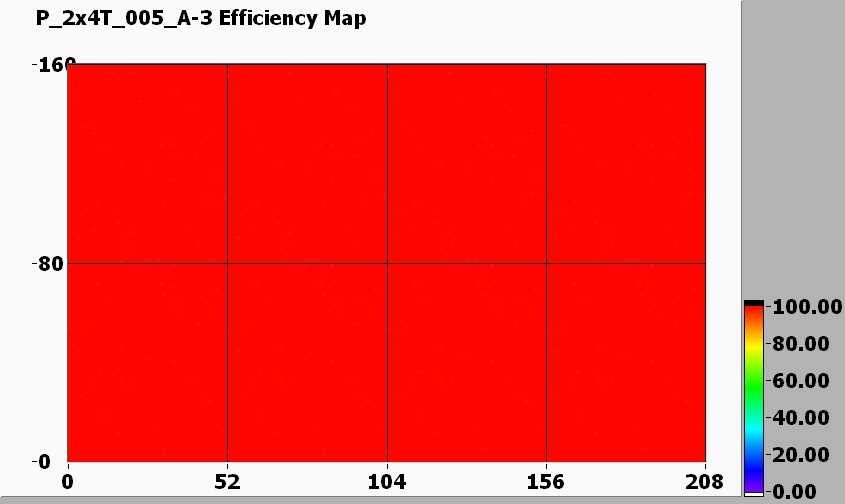

Efficiency MAP

EXTRA DACs for NOISE

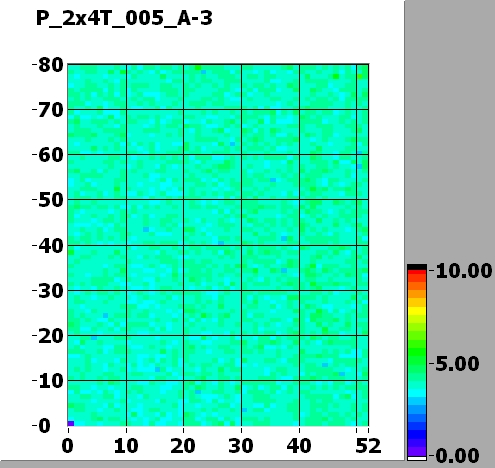

ROC0 NOISE			MEAN = 3.812533 SIGMA = 0.295708
ROC1 NOISE			MEAN = 3.874113 SIGMA = 0.286810
ROC2 NOISE			MEAN = 3.827962 SIGMA = 0.305856

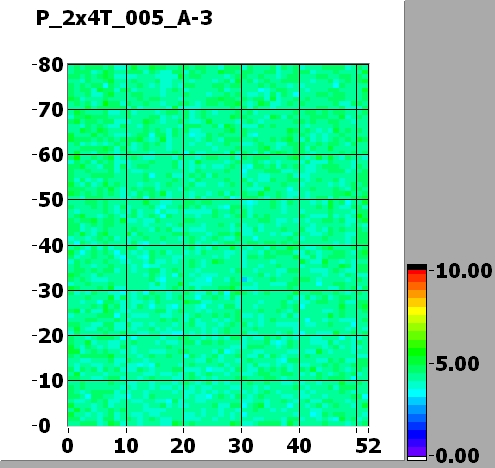

ROC3 NOISE			MEAN = 4.206741 SIGMA = 0.343193

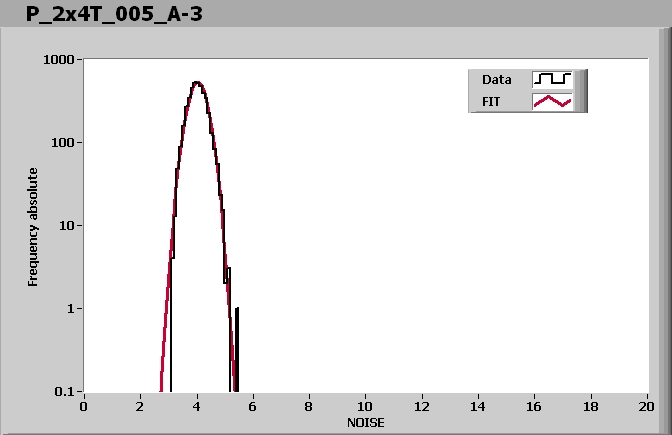

ROC4 NOISE			MEAN = 4.029086 SIGMA = 0.315249
ROC5 NOISE			MEAN = 4.157610 SIGMA = 0.328567

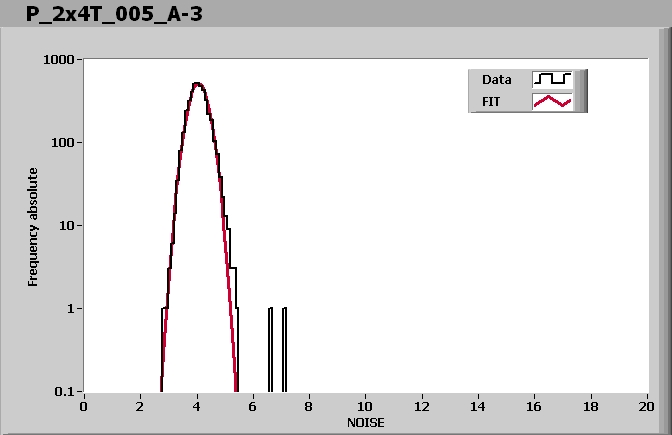

ROC6 NOISE			MEAN = 4.055550 SIGMA = 0.319546

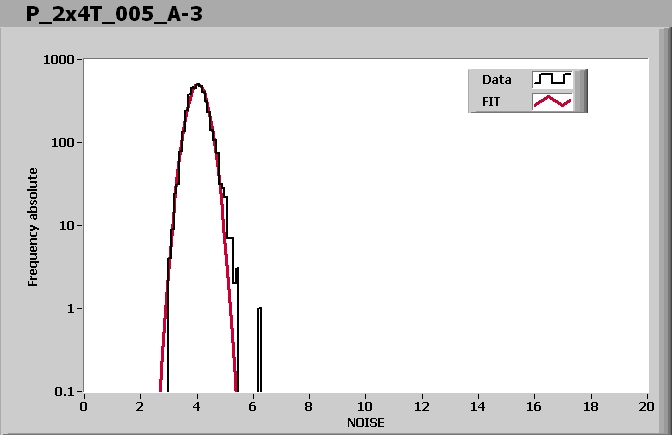

ROC7 NOISE			MEAN = 4.037958 SIGMA = 0.324371

Comment (if any): Tested with the laser on ROC7

P_2x4T_005_A-1.html,

P_2x4T_005_A-2.html,

P_2x4T_005_A.html,

End testing time: 7:06 PM
