P_2x4B_171_A

Parts committed by Bolla Gino on date 1/31/2007

Part	ID
BBM	BBM_171-2x4B
VHDI	2x4_407

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	29C
ROC1	W30_X74K5RT	29B
ROC2	W30_X74K5RT	29A
ROC3	W30_X74K5RT	28A
ROC4	W29_X64K5ST	74B
ROC5	W29_X64K5ST	75B
ROC6	W29_X64K5ST	75C
ROC7	W29_X64K5ST	75D

Inspected by Arndt Kirk on date 2/7/2007

LR_dev	0.087
LL_dev	0.096

FINAL COMMENT by Arndt Kirk

No assembly problem. No wirebond problem.

PLAQUETTE made READY for testing on 2/7/2007 by Arndt Kirk

P_2x4B_171_Aon 2/8/2007 9:22 AM

P_2x4B_171_Aon 2/8/2007 9:22 AM

PLAQUETTE TESTED on 2007-02-08 by Gino Bolla

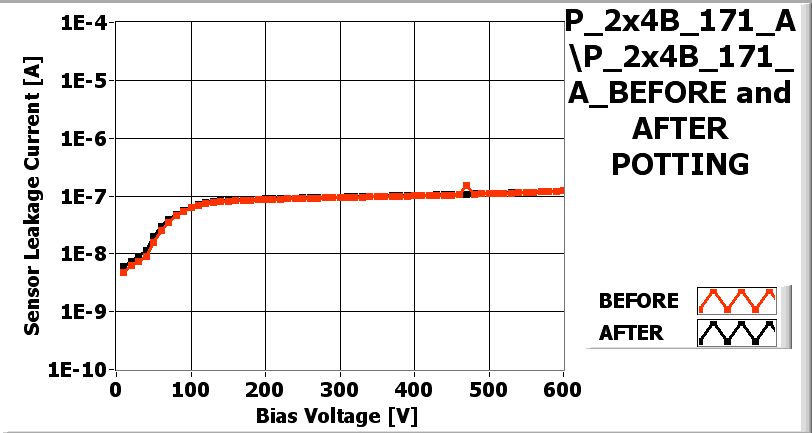

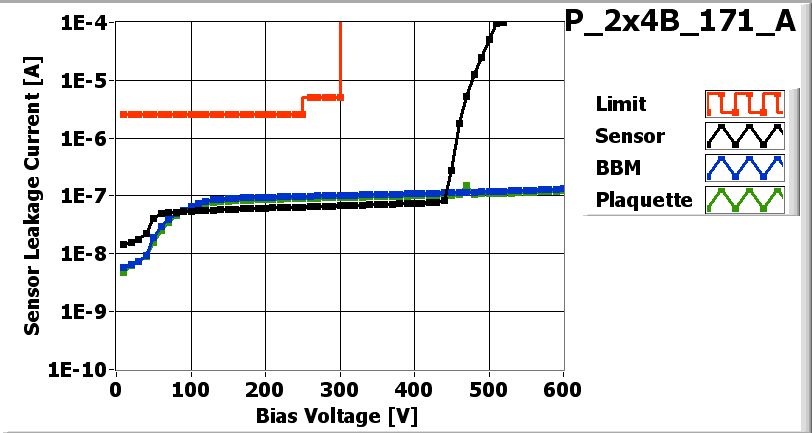

	IV_XML-File Maximum Voltage 600 V
	LASER_XML-File Depletion Voltage 50 V Operational Voltage 90 V

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

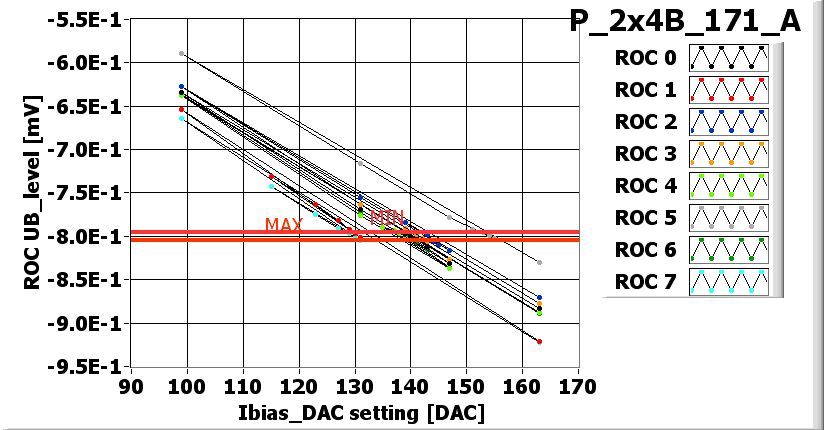

	I_BIAS_DAC_XML-File

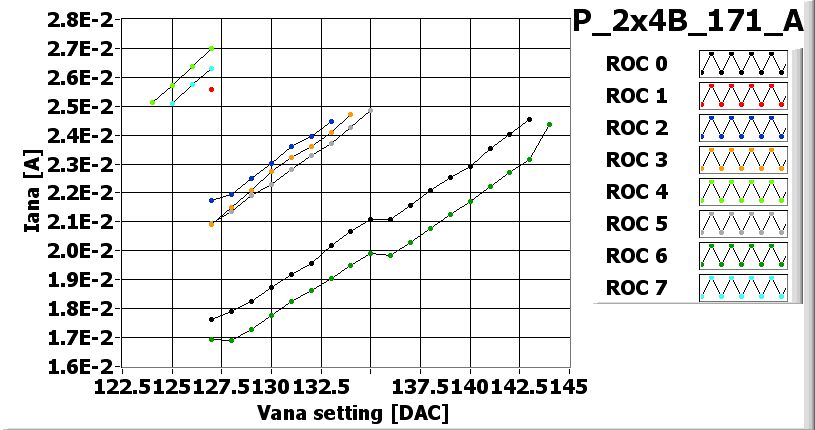

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

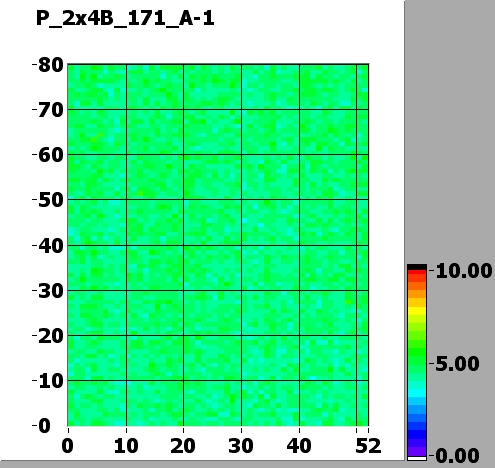

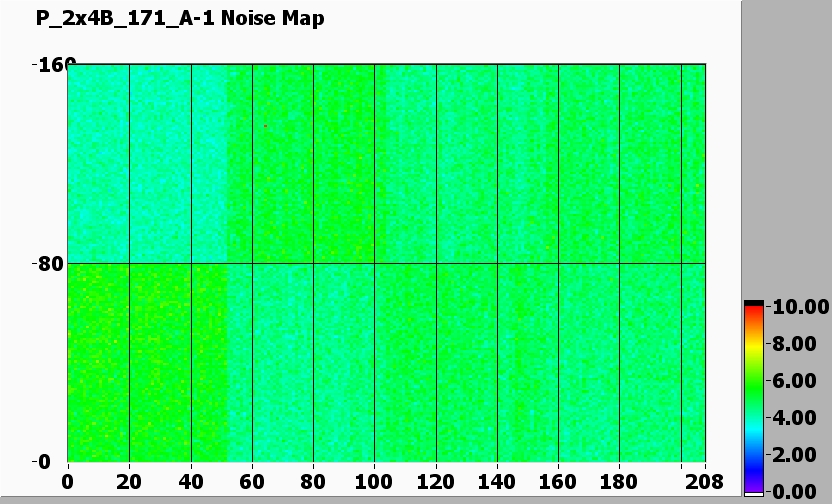

Noise MAP

Efficiency MAP

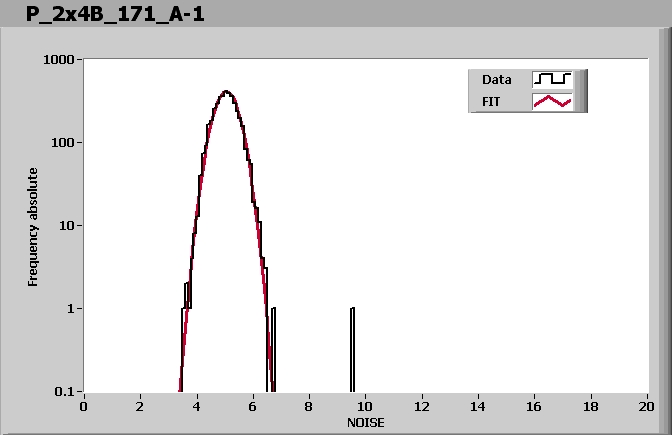

ROC0 NOISE			MEAN = 5.452419 SIGMA = 0.431449
ROC1 NOISE			MEAN = 4.417739 SIGMA = 0.356448

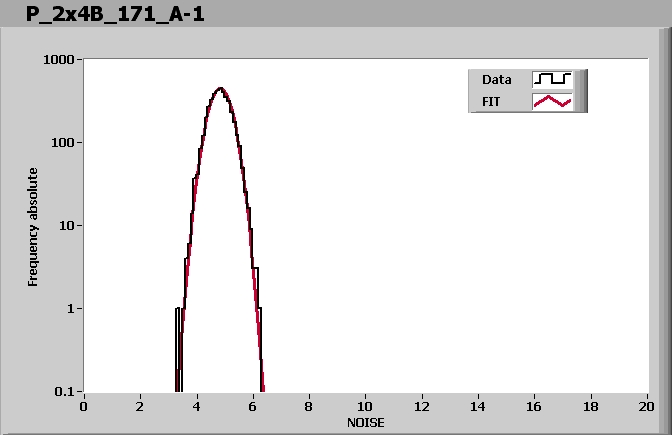

ROC2 NOISE			MEAN = 4.830009 SIGMA = 0.370388
ROC3 NOISE			MEAN = 4.540291 SIGMA = 0.344464
ROC4 NOISE			MEAN = 4.807612 SIGMA = 0.387464
ROC5 NOISE			MEAN = 4.533300 SIGMA = 0.369730
ROC6 NOISE			MEAN = 5.046191 SIGMA = 0.403864
ROC7 NOISE			MEAN = 4.062319 SIGMA = 0.300917

PLAQUETTE encapsulated on 2/9/2007 by Ozhan Koybasi

P_2x4B_171_A-1on 2/9/2007 12:47 PM

P_2x4B_171_A-1on 2/9/2007 12:47 PM AFTER POTTING
