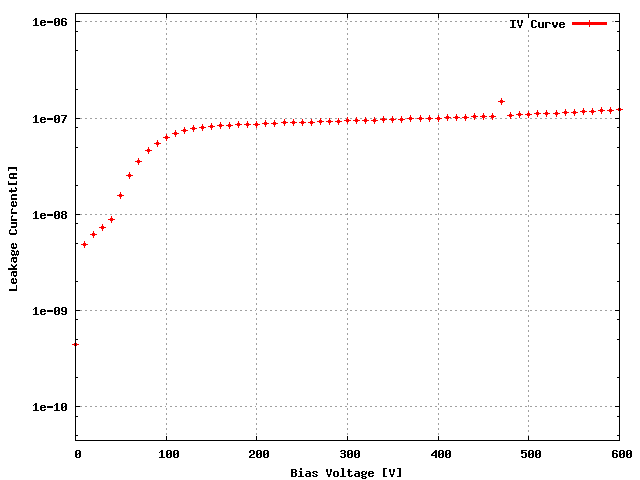

Sensor: S_2x4B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	29C
ROC1	W30_X74K5RT	29B
ROC2	W30_X74K5RT	29A
ROC3	W30_X74K5RT	28A
ROC4	W29_X64K5ST	74B
ROC5	W29_X64K5ST	75B
ROC6	W29_X64K5ST	75C
ROC7	W29_X64K5ST	75D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	140	130	144	142	138	154	140	130
Vana, VanaData	143	127	133	134	124	135	144	125
CalDelData and plots	75	71	74	88	70	80	69	101
VthrCompData and plots	76	78	86	72	79	75	84	66
TestDdata ,TestD Plots	0	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	1	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

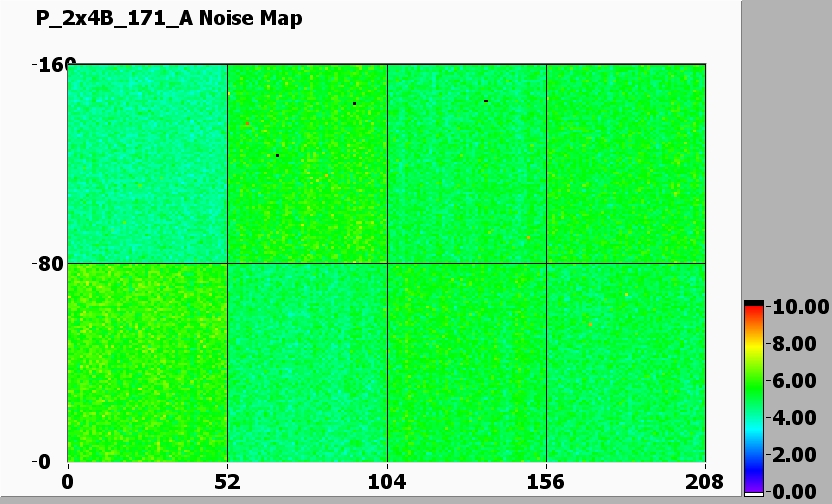

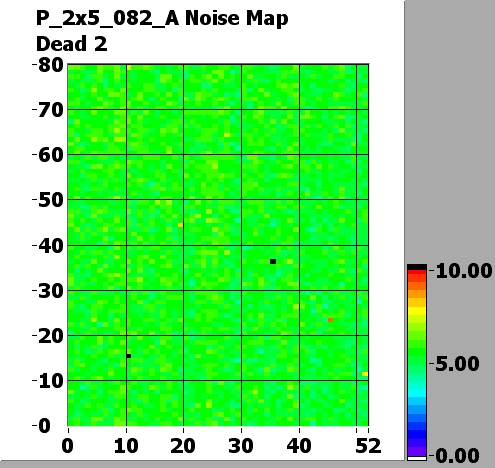

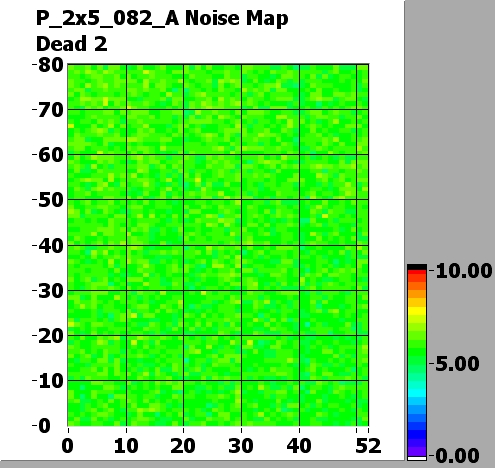

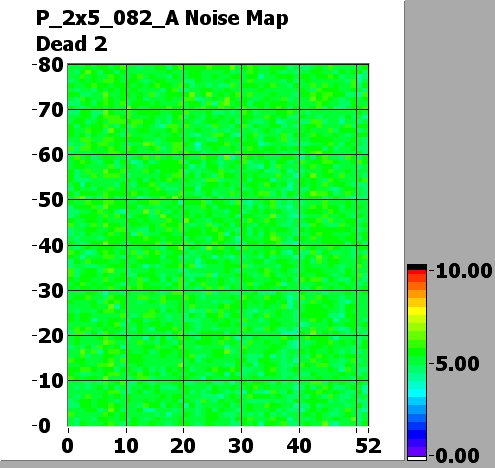

Noise MAP

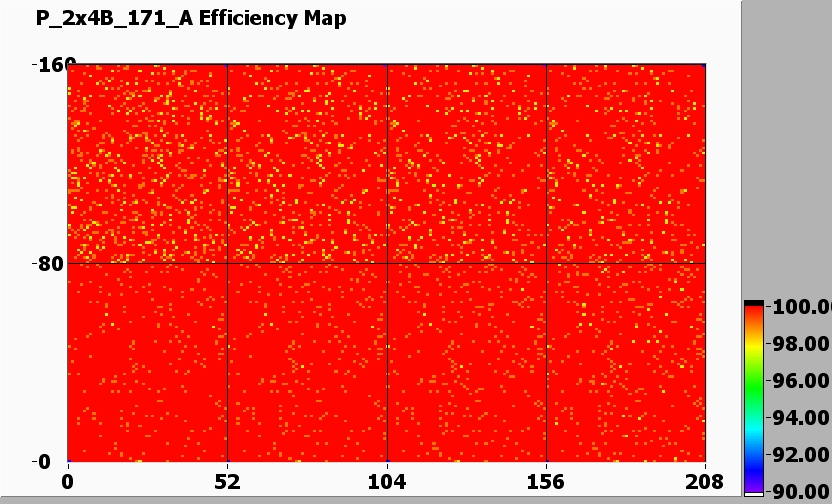

Efficiency MAP

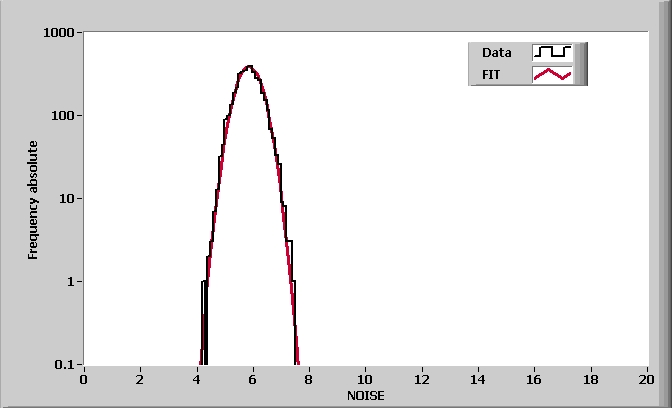

ROC0 NOISE			MEAN = 5.855081 SIGMA = 0.425655

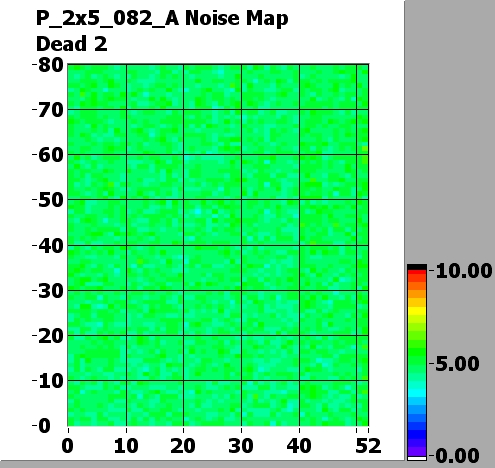

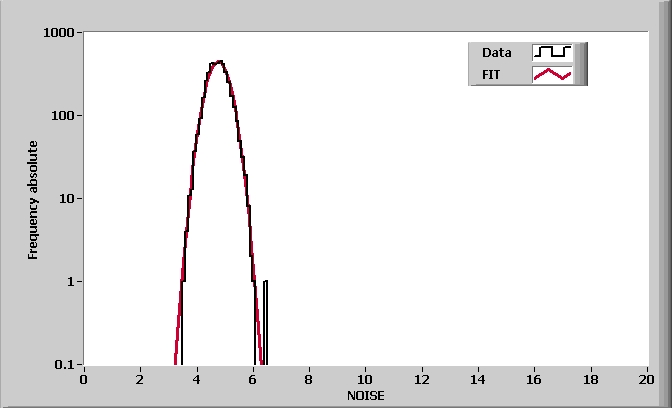

ROC1 NOISE			MEAN = 4.756860 SIGMA = 0.370881

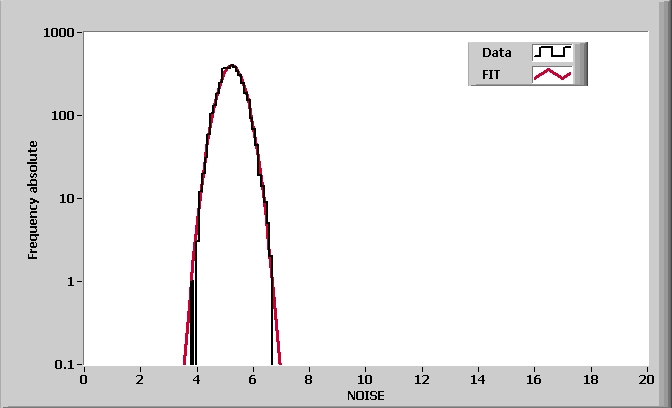

ROC2 NOISE			MEAN = 5.238549 SIGMA = 0.416562

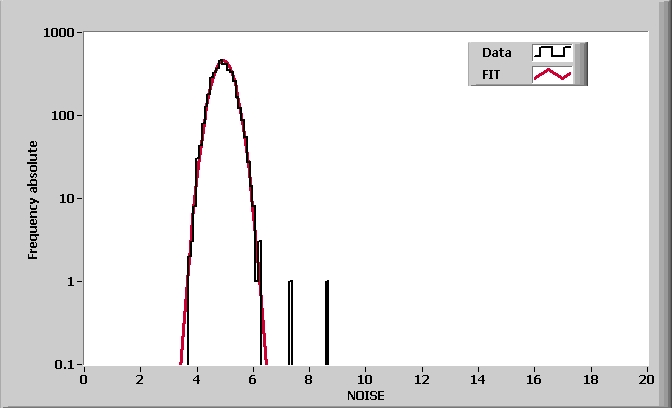

ROC3 NOISE			MEAN = 4.937767 SIGMA = 0.367552

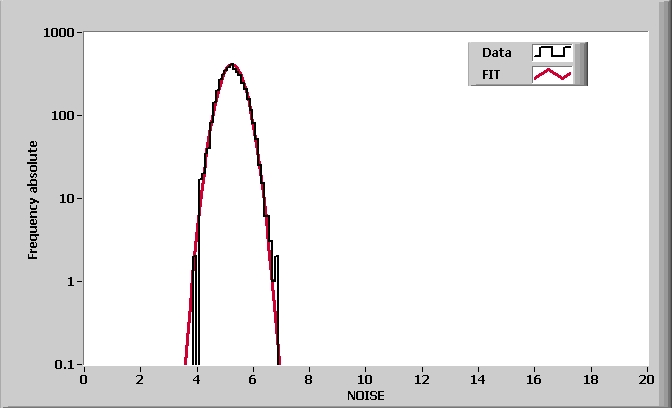

ROC4 NOISE			MEAN = 5.252250 SIGMA = 0.409646

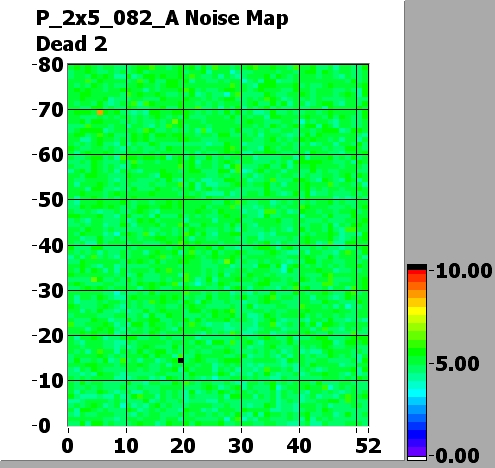

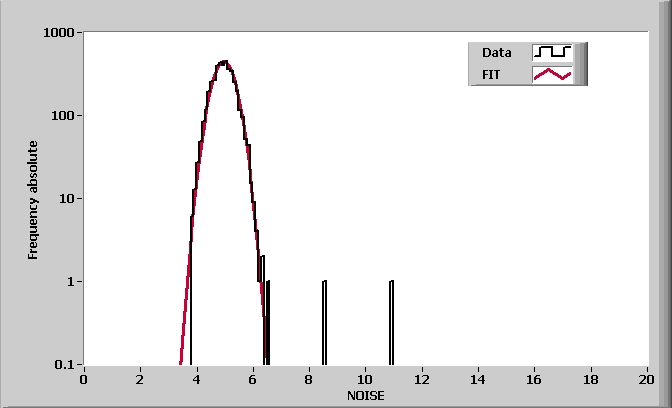

ROC5 NOISE			MEAN = 4.958946 SIGMA = 0.374051

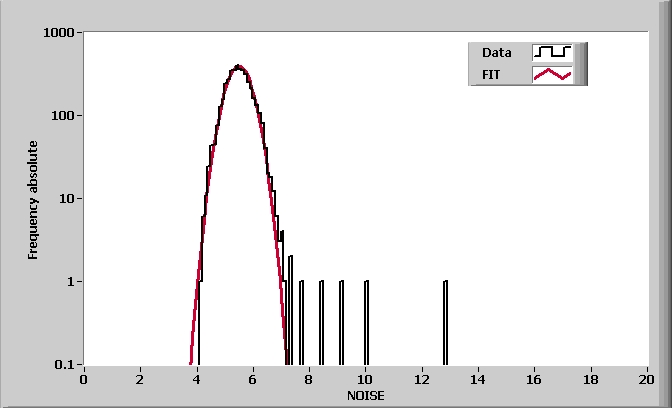

ROC6 NOISE			MEAN = 5.490251 SIGMA = 0.422933

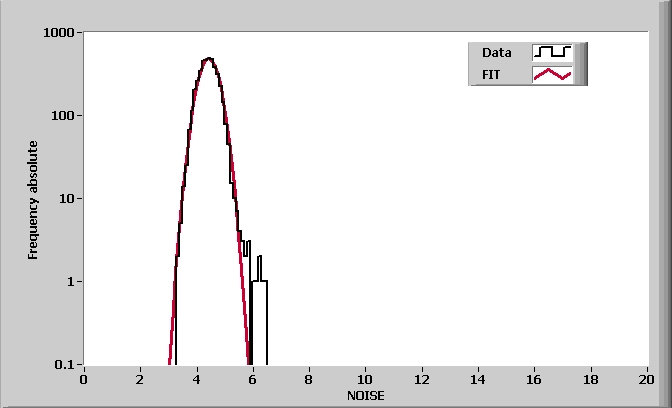

ROC7 NOISE			MEAN = 4.419983 SIGMA = 0.339716

Comment (if any):

End testing time: 9:42 AM
