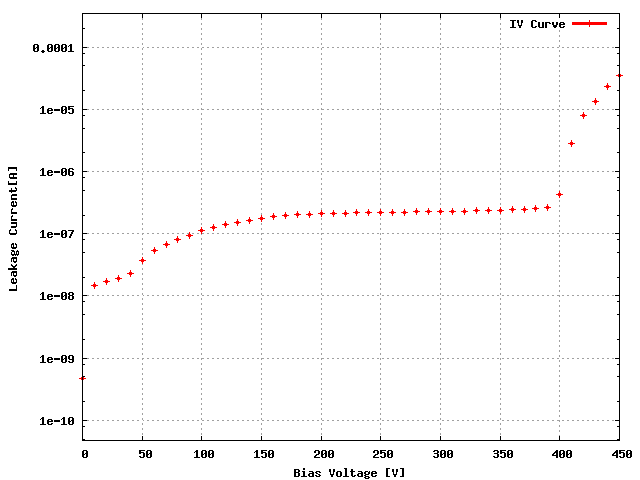

Sensor: S_2x4B_08, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W32_XA4K5NT | 40B |
ROC1 | W32_XA4K5NT | 40A |
ROC2 | W32_XA4K5NT | 58D |
ROC3 | W32_XA4K5NT | 58B |
ROC4 | W32_XA4K5NT | 37D |
ROC5 | W32_XA4K5NT | 38A |
ROC6 | W32_XA4K5NT | 39A |
ROC7 | W32_XA4K5NT | 39C |
Ibias_DAC, Ibias_DAC Data | 126 | 132 | 146 | 158 | 142 | 140 | 126 | 146 |
Vana, VanaData | 120 | 140 | 138 | 147 | 135 | 134 | 132 | 131 |
CalDelData and plots | 72 | 85 | 84 | 71 | 78 | 81 | 78 | 79 |
VthrCompData and plots | 74 | 79 | 74 | 86 | 68 | 74 | 75 | 83 | Depletion Voltage is -50 and suggested operational voltage is -90
TestDdata ,TestD Plots | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): Final measurement of this plaquette that should be uploaded to the DB.
This Device have been tested 13Times prior to this one and here are the links to the previous tests:End testing time: 4:31 PM
