P_2x4B_077

P_2x4B_077_C

Parts committed by Bolla Gino on date 4/17/2007

Part	ID
BBM	BBM_077-2x4B
VHDI	2x4_554

ROC ROC wafer Label

ROC0 X94KFJT 39C

ROC1 X94KFJT 18D

ROC2 X94KFJT 38A

ROC3 X94KFJT 28A

ROC4 X94KFJT 39D

ROC5 X94KFJT 67C

ROC6 X94KFJT 37D

ROC7 X94KFJT 48B

ROC	ROC wafer	Label
ROC0	X94KFJT	39C
ROC1	X94KFJT	18D
ROC2	X94KFJT	38A
ROC3	X94KFJT	28A
ROC4	X94KFJT	39D
ROC5	X94KFJT	67C
ROC6	X94KFJT	37D
ROC7	X94KFJT	48B

Inspected by Lockwood Gale on date 4/20/2007

LR_dev 0.037

LL_dev 0.022

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. ROC 0 Ch 34, 2 attempts, no wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 4/20/2007 by Lockwood Gale

PLAQUETTE encapsulated on 4/20/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 4/20/2007 by Ozhan Koybasi

P_2x4B_077_Con 4/23/2007 12:29 PM

P_2x4B_077_C-1on 4/23/2007 12:30 PM

PLAQUETTE TESTED on 2007-04-23 by Gino Bolla

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 52 V

Operational Voltage 92 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	144	144	138	130	150	148	142	144
Vana	155	146	118	129	138	154	145	131
Cal_Del	82	80	104	100	78	64	79	93
Vthrs_Comp	89	77	72	57	76	90	78	76
Unbumped	0	0	0	0	0	0	0	1
Dead	0	0	0	0	0	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	0	0	0	1

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

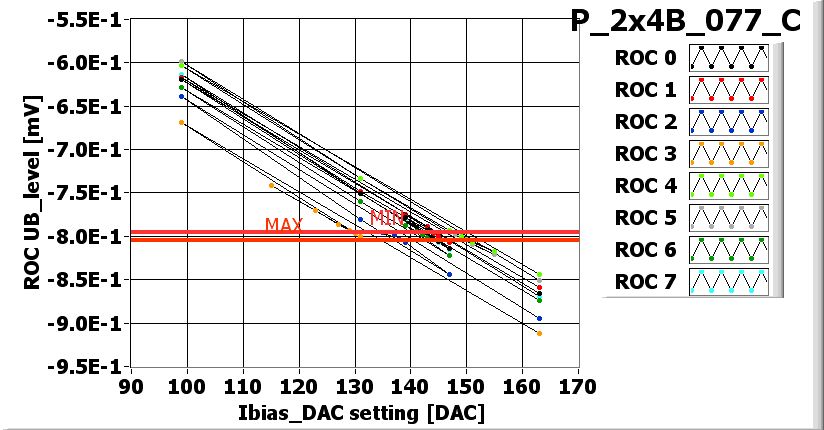

	I_BIAS_DAC_XML-File

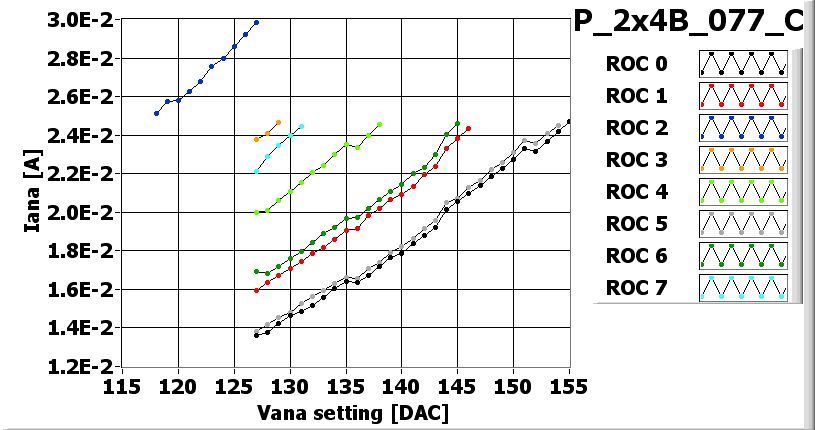

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

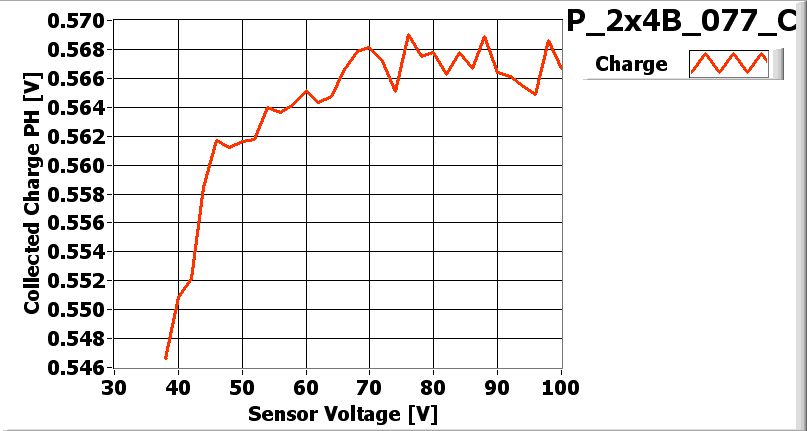

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	95	90	155	115	110	100	115	110
Vsf	155	145	140	140	140	150	145	140
VoffsetOp	125	90	65	85	100	105	100	75
VIbias_PH	100	100	105	100	100	105	100	105

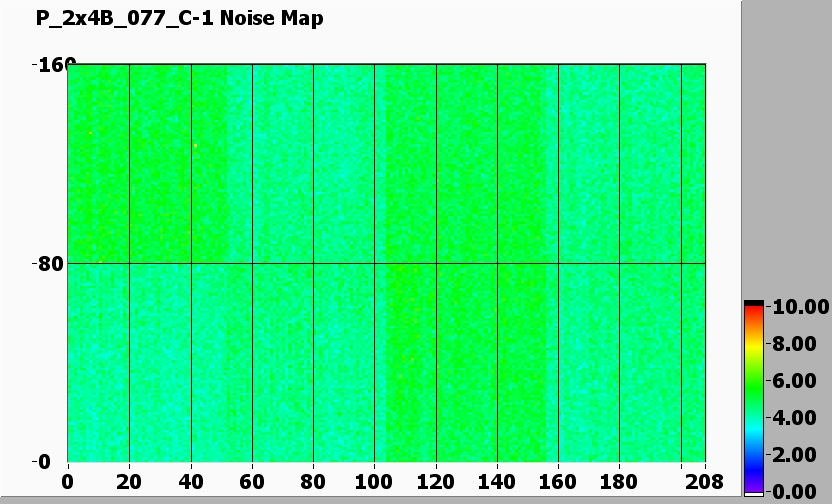

Noise MAP

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-04-25

Plaquette assigned to panel P3L_035
