Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
---|---|---|---|---|

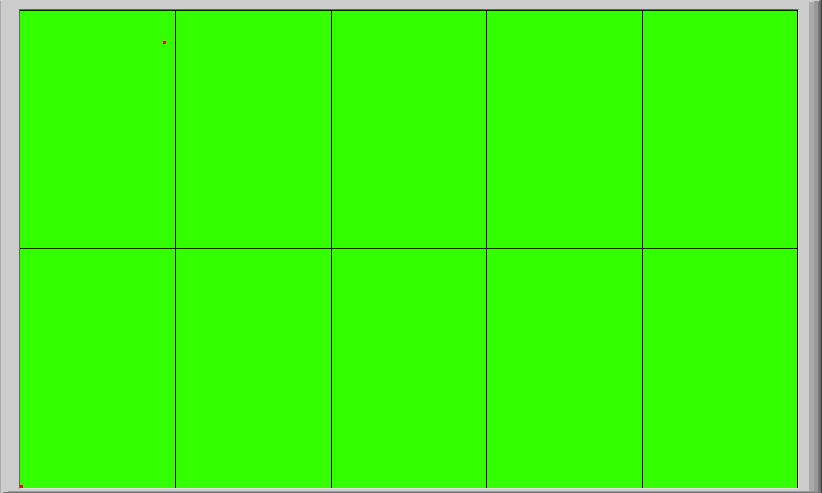

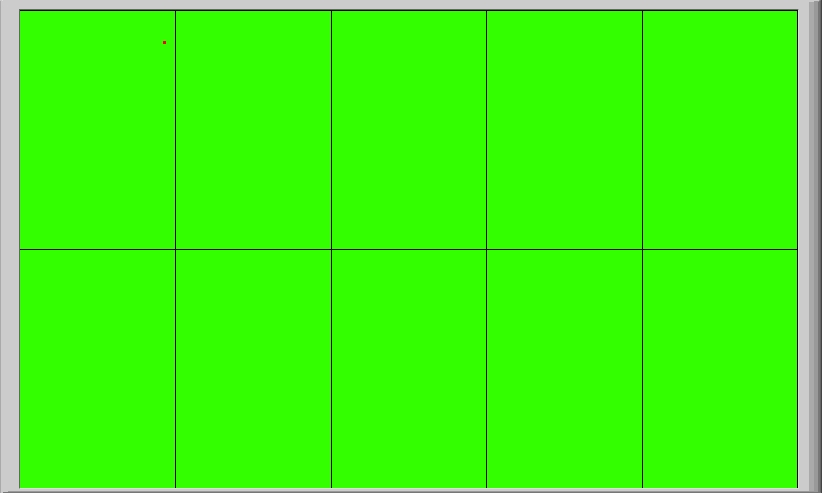

P_2x5_099_A | 3 | |||

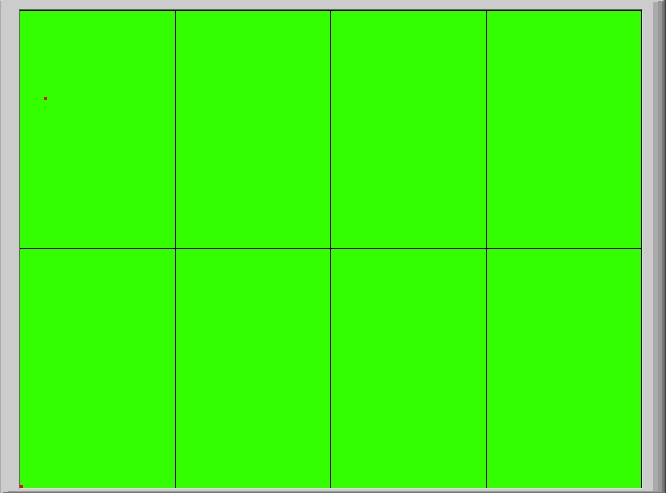

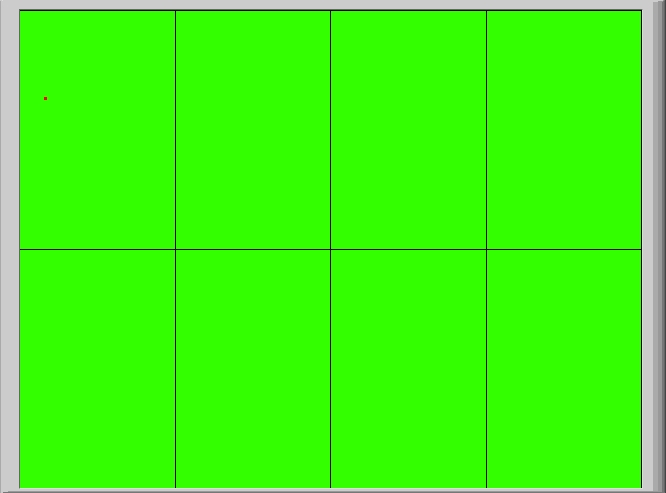

P_2x4B_077_C | 2 | |||

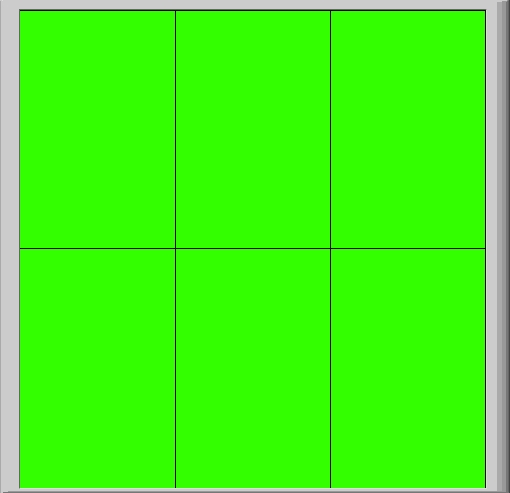

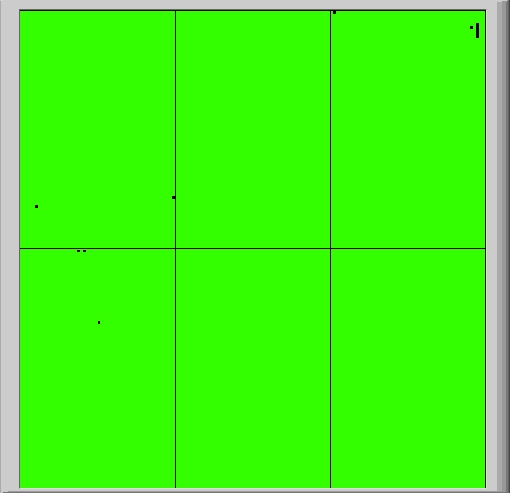

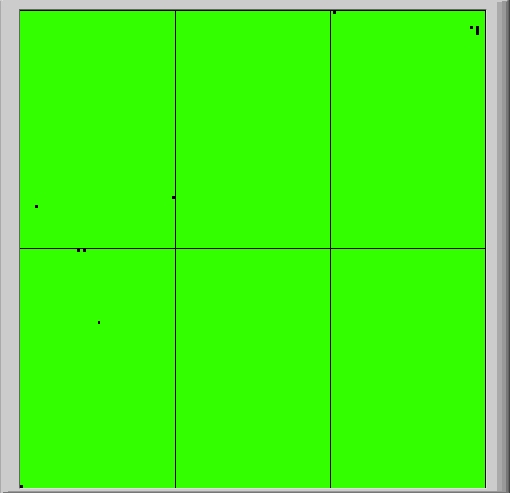

P_2x3B_016_A | 1 |
Panel assembly comments |
---|
RVS June 13, 2007. The 2x4 plaquette on this panel has three tiny drops of epoxy on the upper part. The plaquette was bowing up on that end. The tiny gap is now prevented from growing. |
