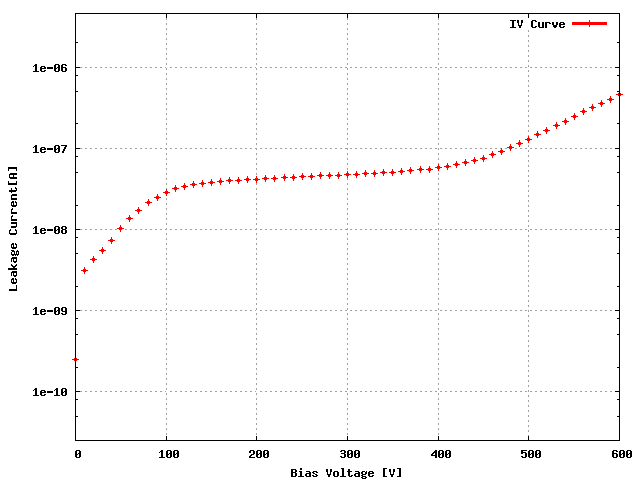

Sensor: S_2x4B_07, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	X94KFJT	39C
ROC1	X94KFJT	18D
ROC2	X94KFJT	38A
ROC3	X94KFJT	28A
ROC4	X94KFJT	39D
ROC5	X94KFJT	67C
ROC6	X94KFJT	37D
ROC7	X94KFJT	48B

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	144	144	138	130	150	148	142	144
Vana, VanaData	155	146	118	129	138	154	145	131
CalDelData and plots	82	80	104	100	78	64	79	93
VthrCompData and plots	89	77	72	57	76	90	78	76
TestDdata ,TestD Plots	0	0	0	0	0	0	0	7
LightData ,Light Plots	0	0	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

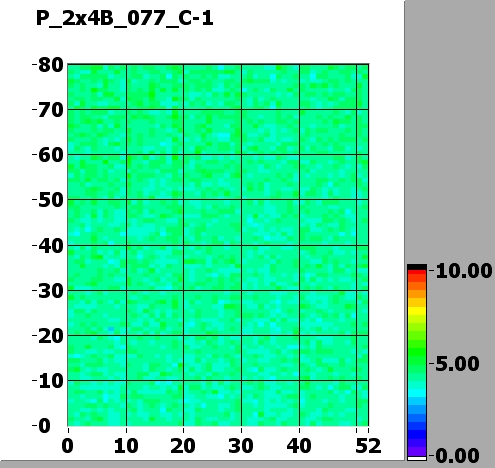

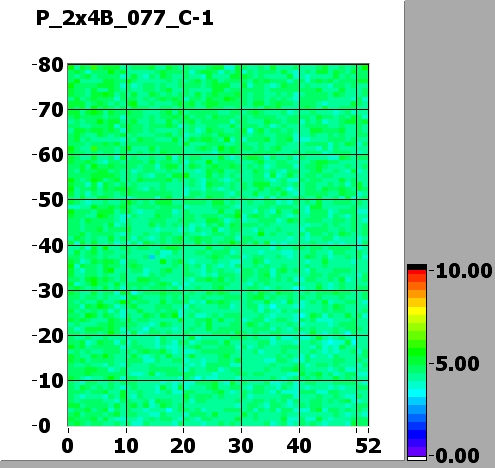

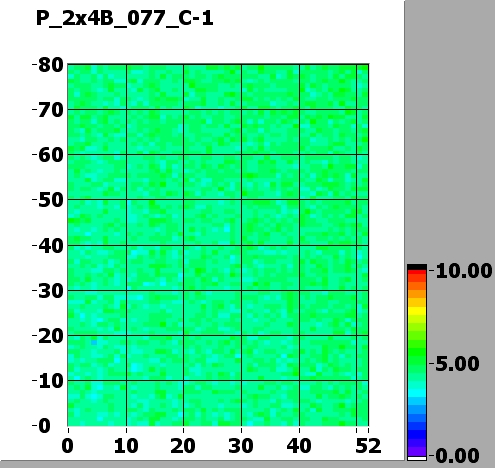

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.209818 SIGMA = 0.340722

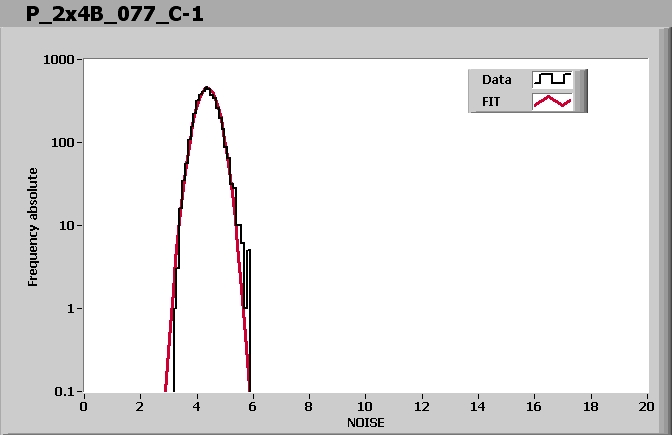

ROC1 NOISE			MEAN = 4.371148 SIGMA = 0.362764

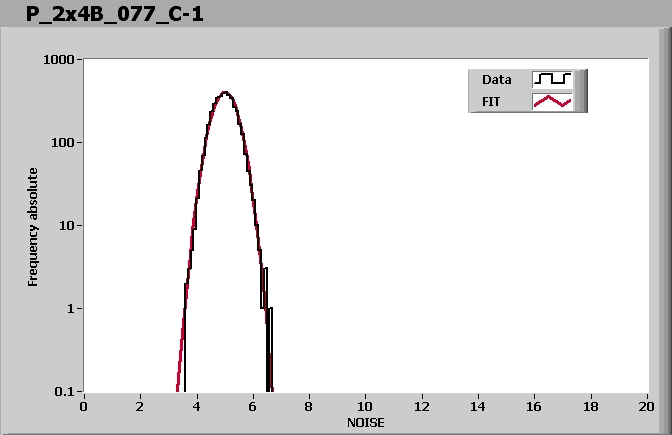

ROC2 NOISE			MEAN = 4.995493 SIGMA = 0.412738
ROC3 NOISE			MEAN = 4.400769 SIGMA = 0.347638
ROC4 NOISE			MEAN = 4.419604 SIGMA = 0.362012

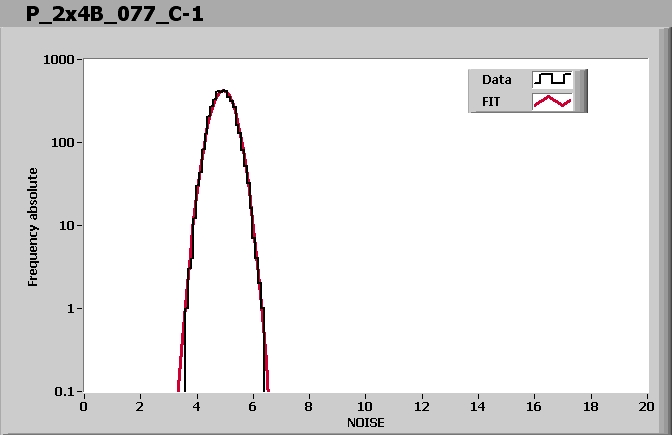

ROC5 NOISE			MEAN = 4.934184 SIGMA = 0.390917
ROC6 NOISE			MEAN = 4.353272 SIGMA = 0.340677

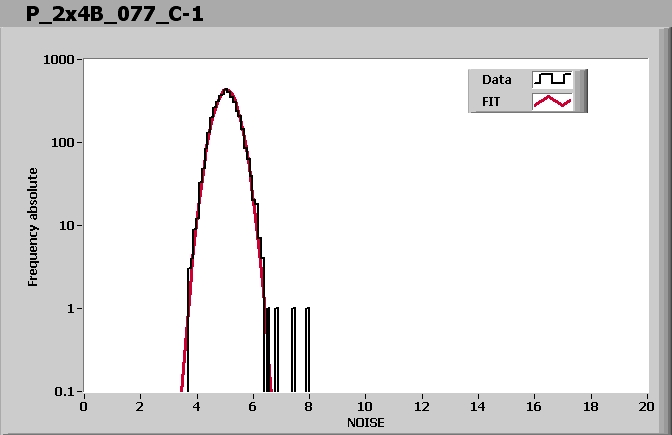

ROC7 NOISE			MEAN = 5.046211 SIGMA = 0.389159

Comment (if any):

P_2x4B_077_C.html,

End testing time: 12:50 PM
