Parts committed by Bolla Gino on date 5/29/2007
| Part | ID |
|---|---|
| BBM | BBM_056-2x4B |
| VHDI | 2x4_712 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KMNG2DT | 32A |
| ROC1 | KMNG2DT | 26B |
| ROC2 | KMNG2DT | 22C |
| ROC3 | KMNG2DT | 05C |
| ROC4 | KMNG2DT | 64A |
| ROC5 | KMNG2DT | 42B |
| ROC6 | KMNG2DT | 74B |
| ROC7 | KMNG2DT | 42D |
Inspected by Arndt Kirk on date 6/6/2007
| Picture | Comment |
|---|---|

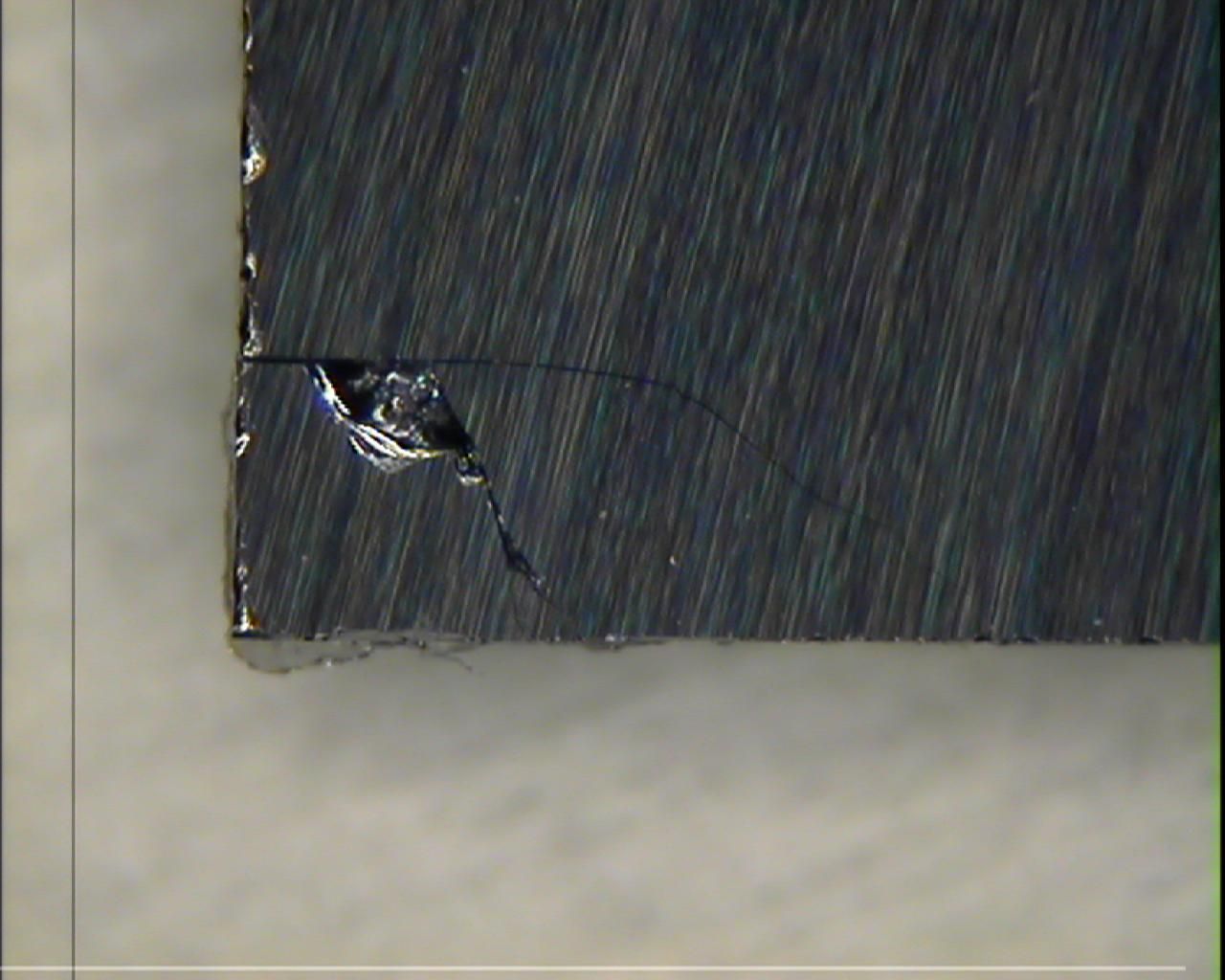

| [IMAGE] of Crack through silicon substrate of VHDI in corner nearest ROC7 (noticed during visual inspection after BBM joined to VHDI). |
Inspected by Lockwood Gale on date 6/7/2007
| LR_dev | 0.022 |
| LL_dev | 0.021 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 7, CH 35, ROC 3 Ch 34,17, ROC 1 Ch 34,35 No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 6/7/2007 by Lockwood Gale
PLAQUETTE encapsulated on 6/7/2007 by Kozak Brian
PLAQUETTE made READY for testing on 6/7/2007 by Kozak Brian
P_2x4B_056_Con 6/8/2007 11:09 AM
P_2x4B_056_Con 6/8/2007 11:09 AM
PLAQUETTE TESTED on 2007-06-08 by Emily Grace

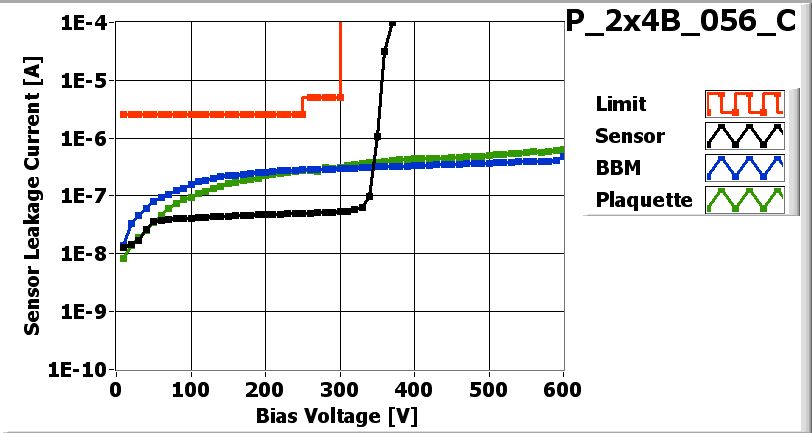

![[IMAGE] of](P_2x4B_056_C_IV.jpg) |
|
|||
![[IMAGE] of](P_2x4B_056_C_LASER.jpg) |
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 158 | 166 | 154 | 158 | 160 | 160 | 154 | 164 | |
| Vana | 128 | 124 | 144 | 145 | 140 | 143 | 140 | 143 | |
| Cal_Del | 74 | 82 | 80 | 79 | 70 | 63 | 75 | 80 | |
| Vthrs_Comp | 64 | 76 | 83 | 80 | 88 | 88 | 86 | 87 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 1 | 30 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 1 | 30 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

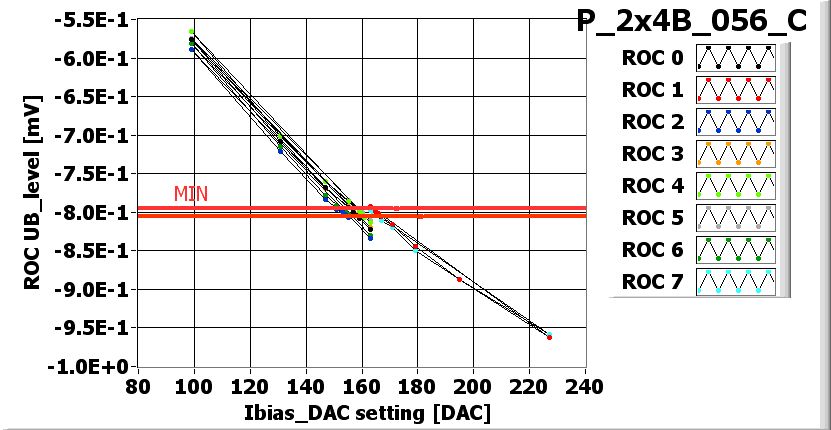

![[IMAGE] of](P_2x4B_056_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

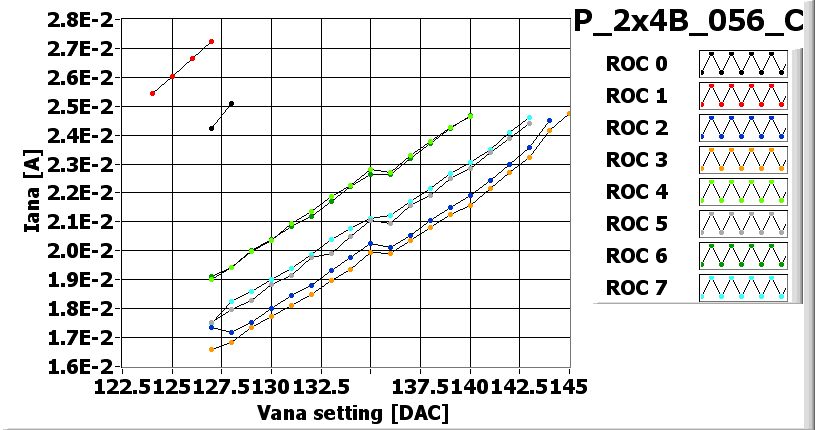

![[IMAGE] of](P_2x4B_056_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_056_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_056_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_056_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_056_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 115 | 115 | 95 | 85 | 100 | 95 | 95 |
| Vsf | 140 | 140 | 140 | 145 | 140 | 145 | 140 | 145 |
| VoffsetOp | 80 | 90 | 90 | 95 | 85 | 115 | 95 | 100 |
| VIbias_PH | 100 | 100 | 100 | 105 | 100 | 95 | 105 | 100 |

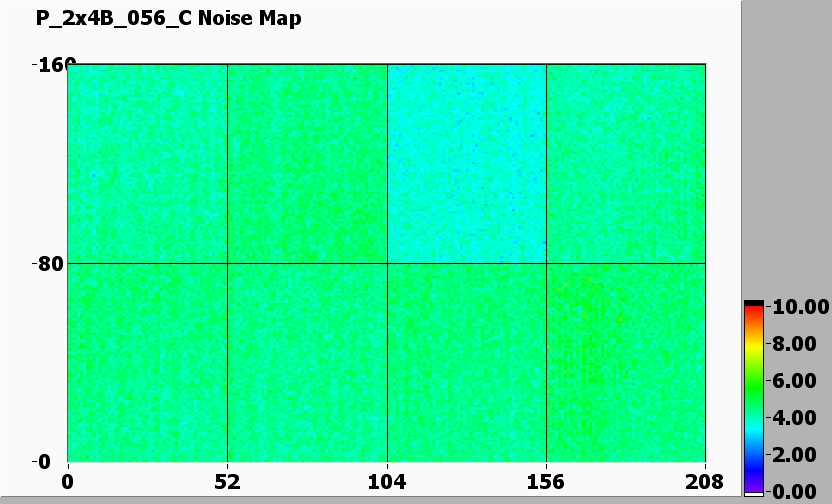

Noise MAP at VMAX
![[IMAGE] of](P_2x4B_056_C-580-noise.jpg)

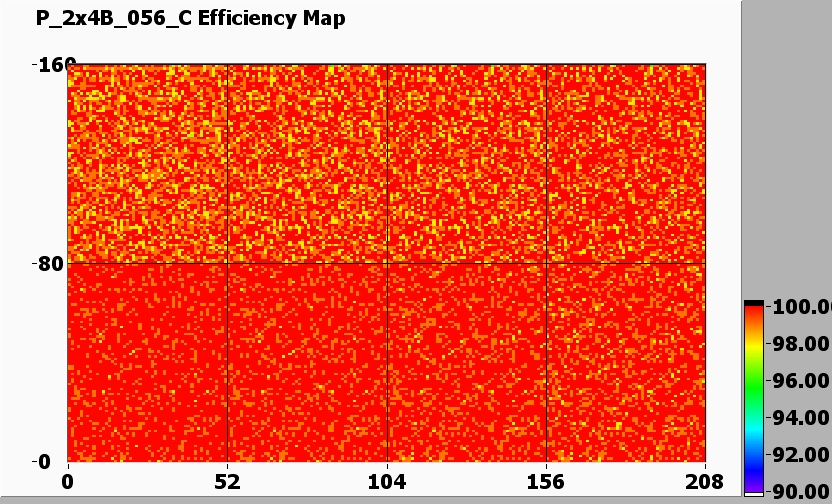

Efficiency MAP
![[IMAGE] of](P_2x4B_056_C-580-efficiency.jpg)

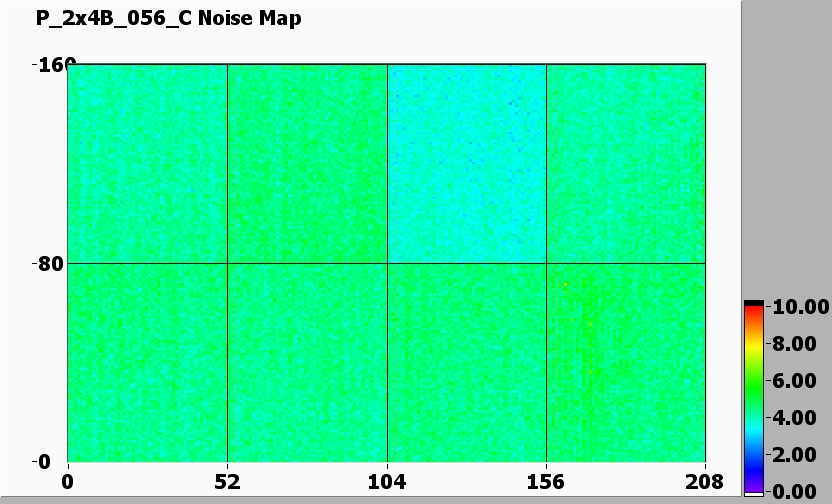

Noise MAP at -200 V
![[IMAGE] of](P_2x4B_056_C-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_056_C-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
