Sensor: S_2x4B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KMNG2DT	32A
ROC1	KMNG2DT	26B
ROC2	KMNG2DT	22C
ROC3	KMNG2DT	05C
ROC4	KMNG2DT	64A
ROC5	KMNG2DT	42B
ROC6	KMNG2DT	74B
ROC7	KMNG2DT	42D

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	158	166	154	158	160	160	154	164
Vana, VanaData	128	124	144	145	140	143	140	143
CalDelData and plots	74	82	80	79	70	63	75	80
VthrCompData and plots	64	76	83	80	88	88	86	87
TestDdata ,TestD Plots	0	1	0	1	0	0	0	0
LightData ,Light Plots	0	1	0	0	0	1	30	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 4.342056 SIGMA = 0.359030
ROC1 NOISE			MEAN = 4.301993 SIGMA = 0.326157

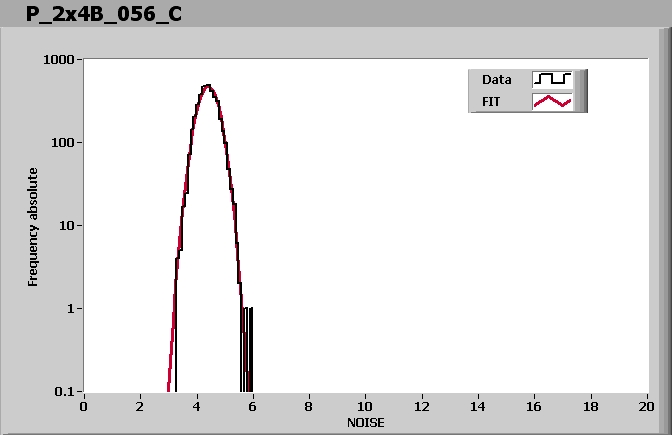

ROC2 NOISE			MEAN = 4.395934 SIGMA = 0.344239
ROC3 NOISE			MEAN = 4.503282 SIGMA = 0.364598
ROC4 NOISE			MEAN = 4.182814 SIGMA = 0.340690

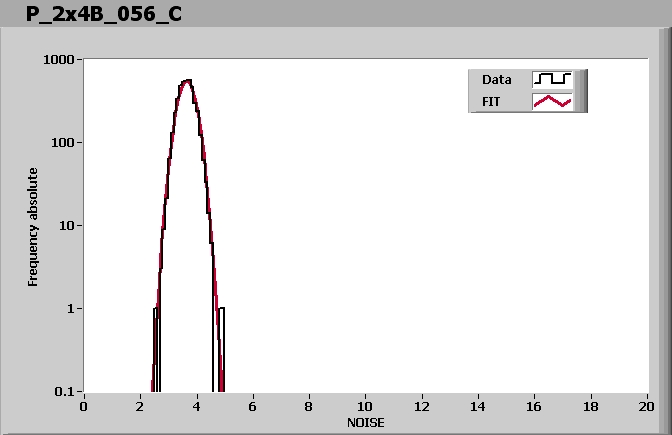

ROC5 NOISE			MEAN = 3.643715 SIGMA = 0.296750
ROC6 NOISE			MEAN = 4.445764 SIGMA = 0.364797

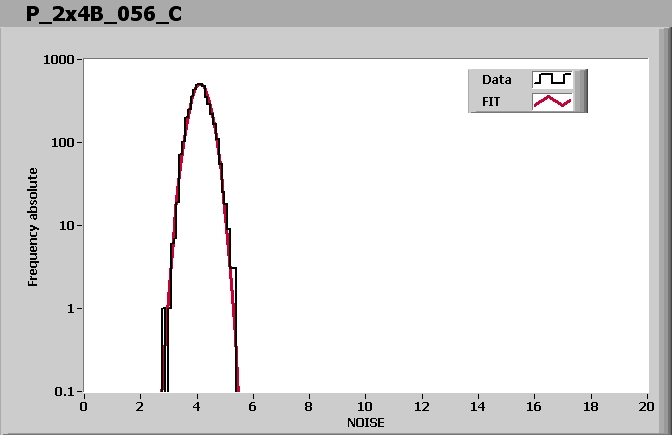

ROC7 NOISE			MEAN = 4.119977 SIGMA = 0.329121

Comment (if any):

End testing time: 11:35 AM
