RECEIVED by McKinney Cameron on date 5/25/2007 From RTI
ROC | ROC wafer | Label |
---|---|---|
ROC0 | KMNG2DT | 32A |
ROC1 | KMNG2DT | 26B |
ROC2 | KMNG2DT | 22C |
ROC3 | KMNG2DT | 05C |
ROC4 | KMNG2DT | 64A |
ROC5 | KMNG2DT | 42B |
ROC6 | KMNG2DT | 74B |
ROC7 | KMNG2DT | 42D |
Inspected by McKinney Cameron on date 5/29/2007
Picture | Comment |
---|---|

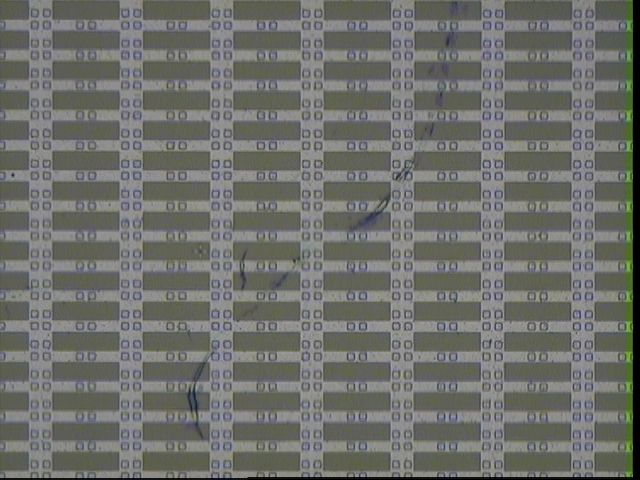

Scratch in the bottom-center of ROC0 | |

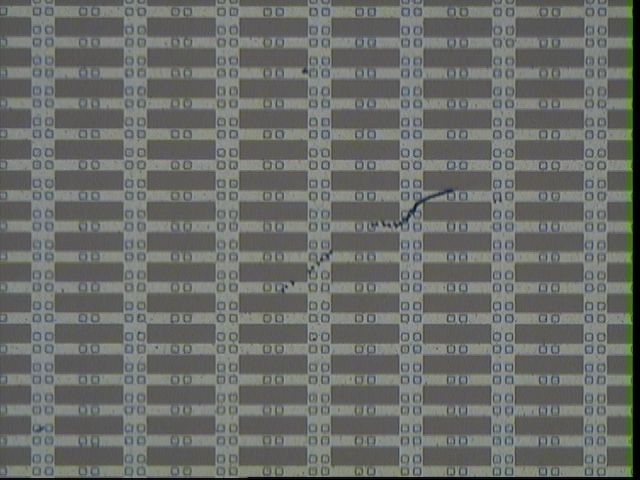

Residue in the middle of ROC4 | |

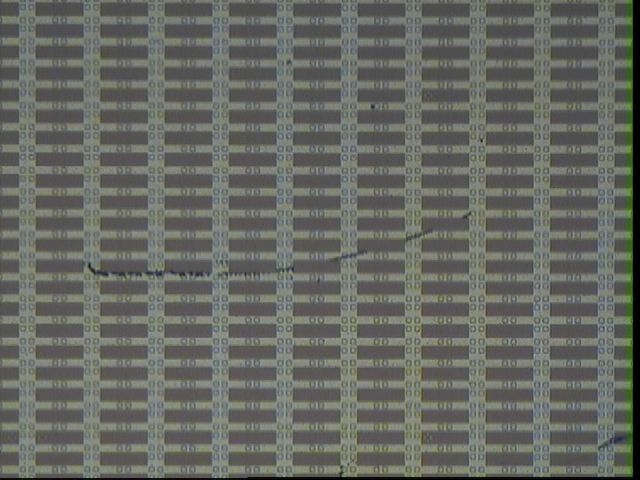

Streaks of residue in the upper-left corner of ROC4 | |

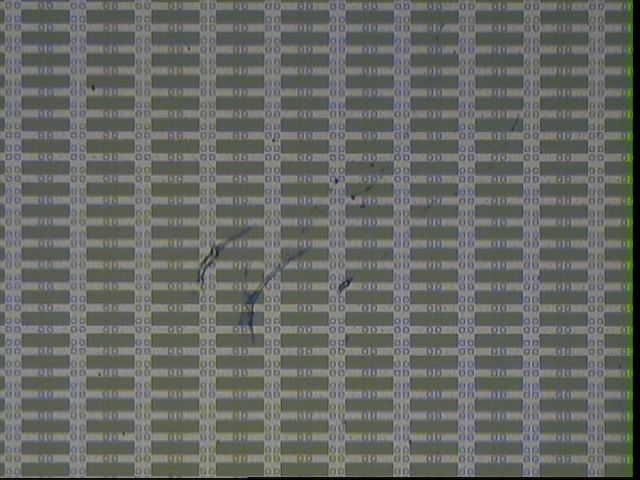

Marks in the center of ROC6 |

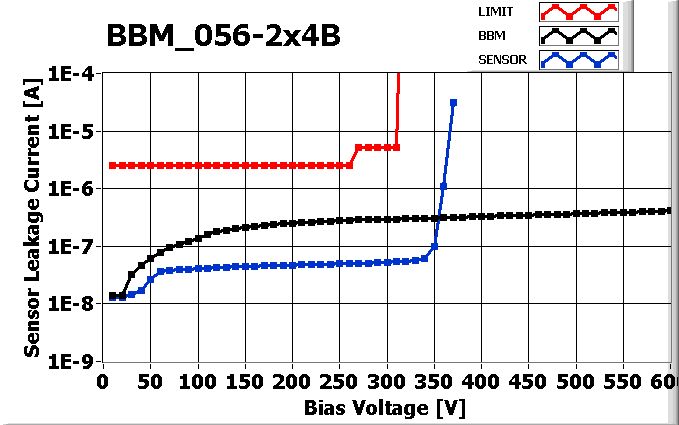

IV Measured by McKinney Cameron on date 5/29/2007
IV XML File |
