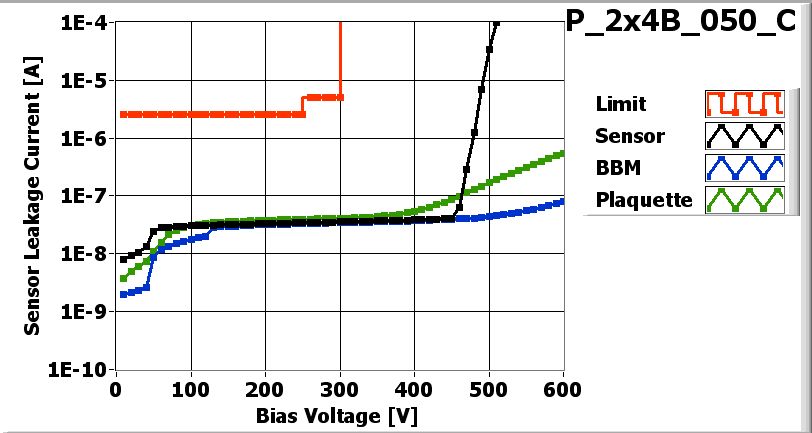

![[IMAGE] of](P_2x4B_050_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_050_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/16/2007
| Part | ID |
|---|---|
| BBM | BBM_050-2x4B |
| VHDI | 2x4_468 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 39A |
| ROC1 | XG4KFCT | 38A |
| ROC2 | XG4KFCT | 37B |
| ROC3 | XG4KFCT | 37A |
| ROC4 | XG4KFCT | 35A |
| ROC5 | XG4KFCT | 35B |
| ROC6 | XG4KFCT | 36A |
| ROC7 | XG4KFCT | 36B |
Inspected by Lockwood Gale on date 2/21/2007
| LR_dev | 0.020 |
| LL_dev | 0.034 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 2/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 2/22/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 2/22/2007 by Ozhan Koybasi
P_2x4B_050_Con 2/26/2007 11:38 AM
P_2x4B_050_Con 2/26/2007 11:38 AM
PLAQUETTE TESTED on 2007-02-26 by Joseph Clampitt
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 146 | 130 | 140 | 138 | 144 | 134 | 146 | |
| Vana | 134 | 127 | 127 | 153 | 134 | 129 | 126 | 134 | |
| Cal_Del | 84 | 95 | 76 | 63 | 74 | 70 | 81 | 84 | |
| Vthrs_Comp | 86 | 69 | 73 | 92 | 77 | 80 | 84 | 75 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 2 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 3 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 3 | 0 | 0 | 1 | 0 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

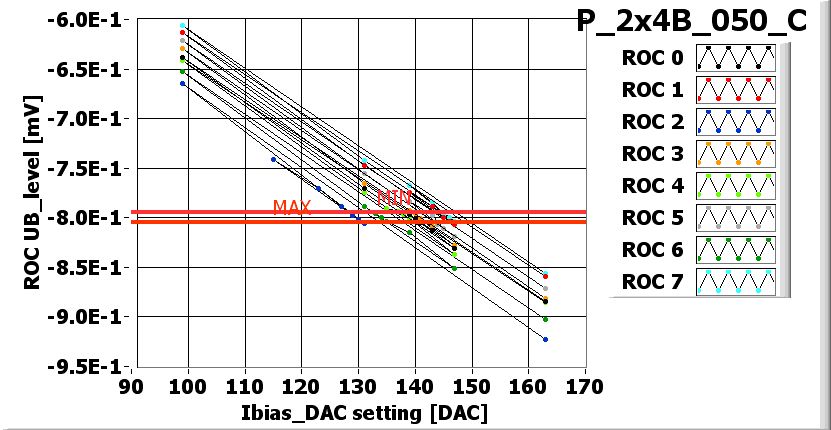

![[IMAGE] of](P_2x4B_050_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

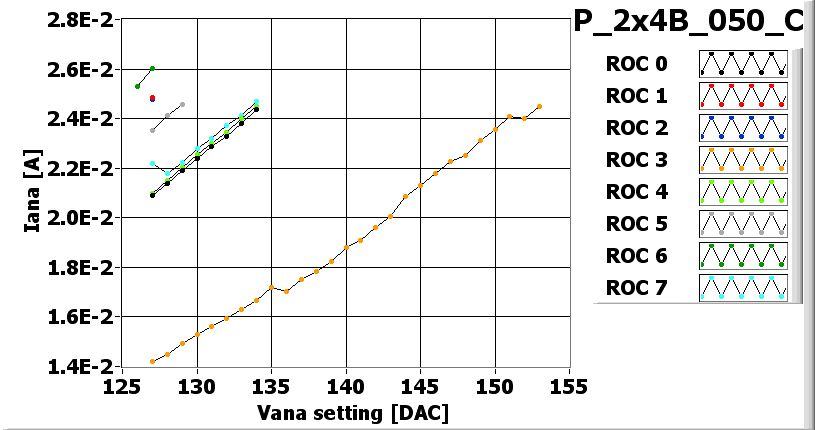

![[IMAGE] of](P_2x4B_050_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_050_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_050_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_050_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_050_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 115 | 135 | 90 | 115 | 115 | 125 | 115 |
| Vsf | 140 | 140 | 140 | 145 | 140 | 140 | 140 | 135 |
| VoffsetOp | 100 | 100 | 50 | 115 | 70 | 70 | 85 | 90 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 95 | 100 | 100 |

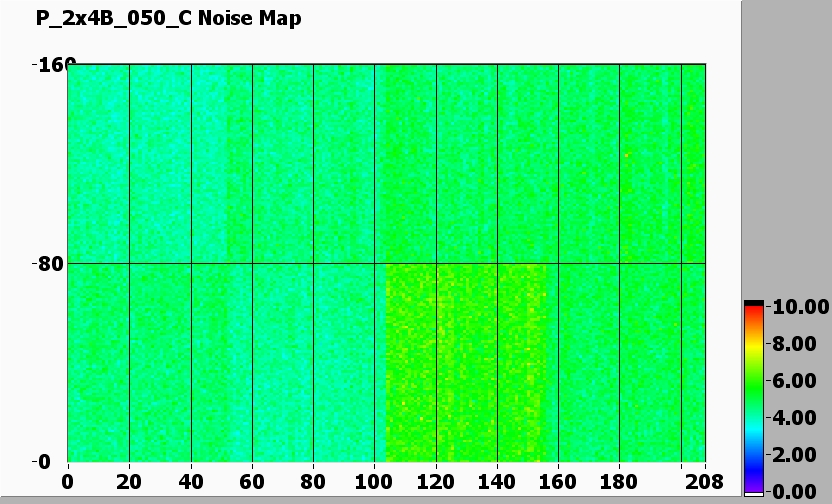

Noise MAP
![[IMAGE] of](P_2x4B_050_C-580-noise.jpg)

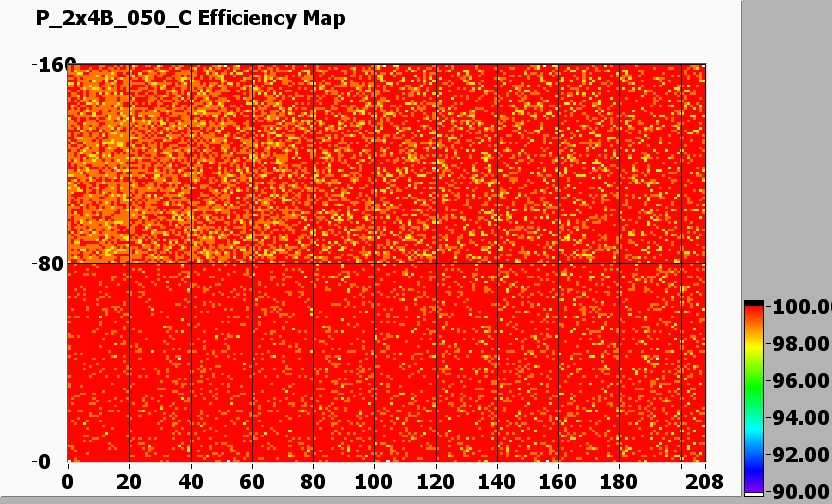

Efficiency MAP
![[IMAGE] of](P_2x4B_050_C-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
