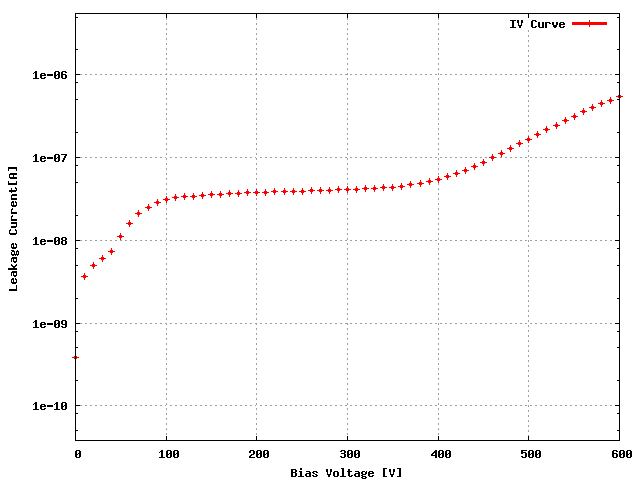

Sensor: S_2x4B_05, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | XG4KFCT | 39A |
ROC1 | XG4KFCT | 38A |
ROC2 | XG4KFCT | 37B |
ROC3 | XG4KFCT | 37A |
ROC4 | XG4KFCT | 35A |
ROC5 | XG4KFCT | 35B |
ROC6 | XG4KFCT | 36A |
ROC7 | XG4KFCT | 36B |
Ibias_DAC, Ibias_DAC Data | 140 | 146 | 130 | 140 | 138 | 144 | 134 | 146 |
Vana, VanaData | 134 | 127 | 127 | 153 | 134 | 129 | 126 | 134 |
CalDelData and plots | 84 | 95 | 76 | 63 | 74 | 70 | 81 | 84 |
VthrCompData and plots | 86 | 69 | 73 | 92 | 77 | 80 | 84 | 75 | Depletion Voltage is -48 and suggested operational voltage is -88
TestDdata ,TestD Plots | 0 | 0 | 3 | 0 | 0 | 1 | 0 | 2 |
LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 2 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

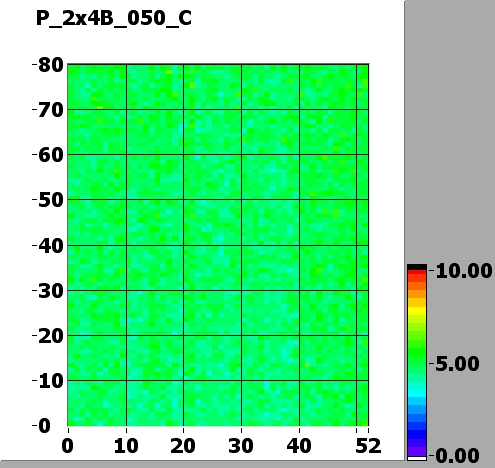

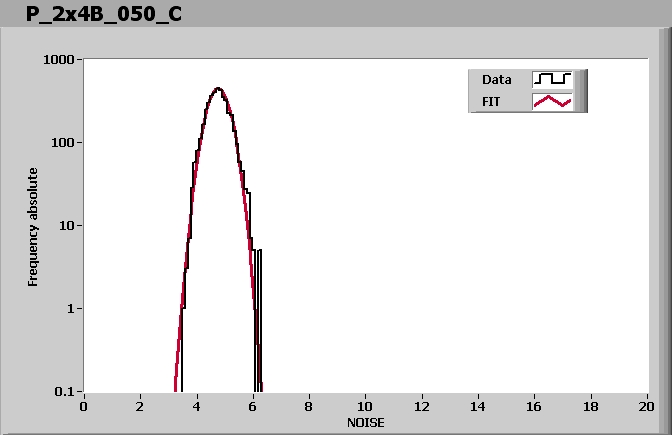

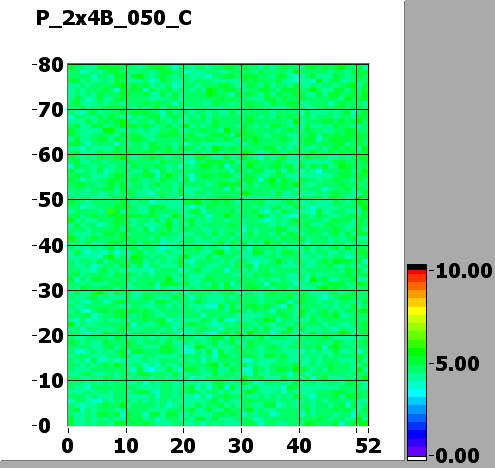

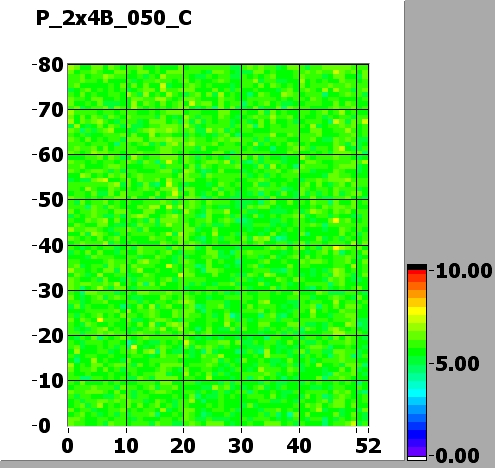

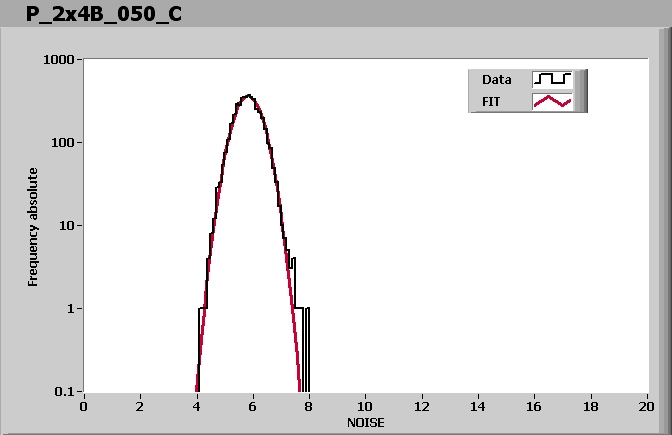

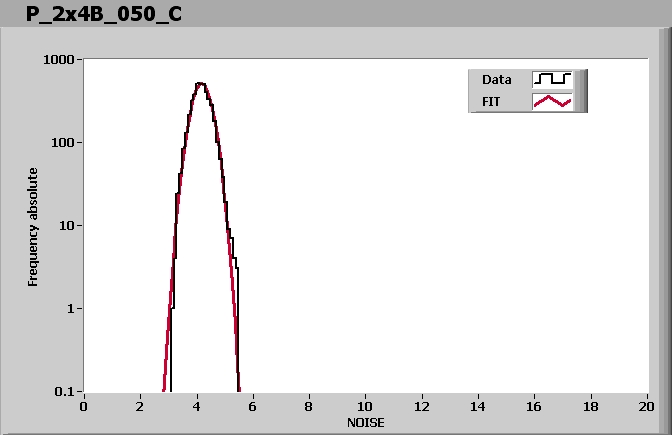

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 105 | 115 | 135 | 90 | 115 | 115 | 125 | 115 |
Vsf | 140 | 140 | 140 | 145 | 140 | 140 | 140 | 135 |
VoffsetOp | 100 | 100 | 50 | 115 | 70 | 70 | 85 | 90 |
VIbias_PH | 100 | 100 | 105 | 100 | 100 | 95 | 100 | 100 |
Comment (if any): Good
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:00 PM
