P4L_038
Unbumped pixels are red, dead are black, noisy are yellow, and undecoded are blue
Plaquette
Position
Purdue Map
FNAL Plaq. Map
FNAL Panel Map

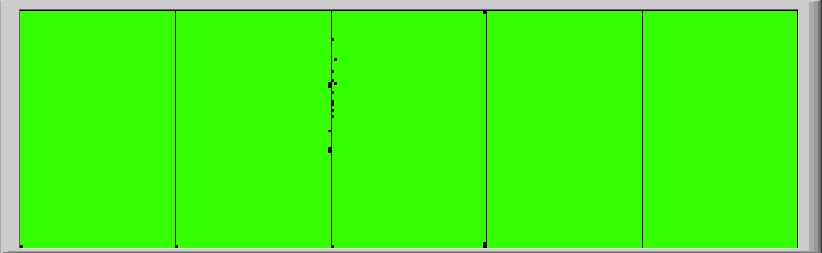

P_1x5R_116_A
4

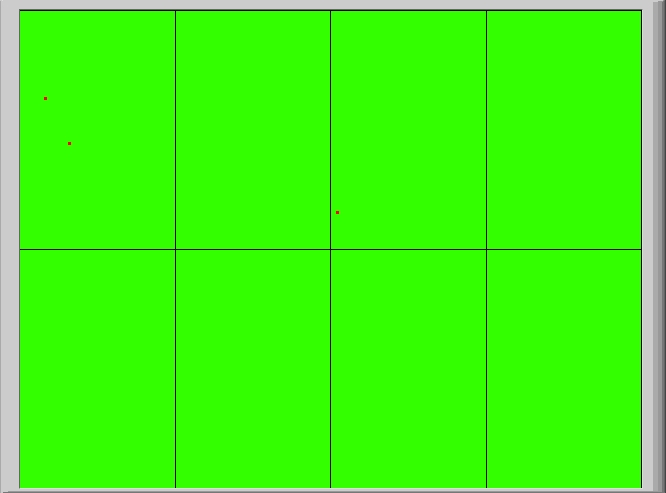

P_2x4B_050_C
3

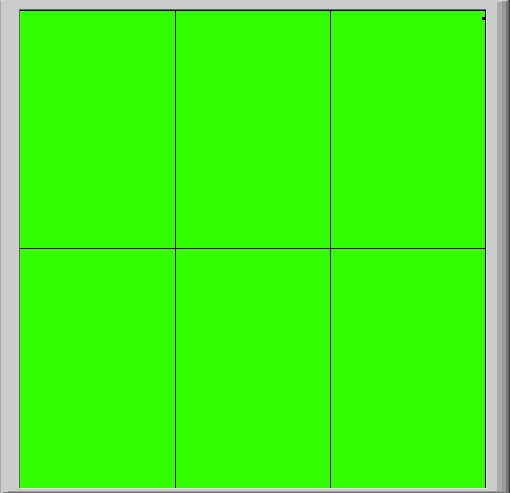

P_2x3B_116_A
2
P_1x2L_102_A
1
Panel assembly comments
Overall panel grade:
A
