P_2x4B_005

P_2x4B_005_A

Parts committed by Bolla Gino on date 11/8/2007

Part	ID
BBM	BBM_005-2x4B
VHDI	2x4_704

ROC ROC wafer Label

ROC0 W47_DXLQF5T 27D

ROC1 W47_DXLQF5T 27A

ROC2 W47_DXLQF5T 26C

ROC3 W47_DXLQF5T 38C

ROC4 W55_D3LQE4T 75D

ROC5 W55_D3LQE4T 76C

ROC6 W55_D3LQE4T 61B

ROC7 W55_D3LQE4T 61D

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	27D
ROC1	W47_DXLQF5T	27A
ROC2	W47_DXLQF5T	26C
ROC3	W47_DXLQF5T	38C
ROC4	W55_D3LQE4T	75D
ROC5	W55_D3LQE4T	76C
ROC6	W55_D3LQE4T	61B
ROC7	W55_D3LQE4T	61D

Inspected by Lockwood Gale on date 11/13/2007

LR_dev 0.057

LL_dev 0.050

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2 kg per ROC. No assembly problems. ROC 6 Ch 1, ROC 6 CH 35, 2 FL, 2 tries, ROC 5 Ch 35, wo, 2fl, 4 tries. No other wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 11/13/2007 by Lockwood Gale

PLAQUETTE encapsulated on 11/14/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 11/14/2007 by Ozhan Koybasi

P_2x4B_005_Aon 11/15/2007 5:07 PM

P_2x4B_005_A-1on 11/16/2007 11:30 AM

PLAQUETTE TESTED on 2007-11-16 by Ozhan Koybasi

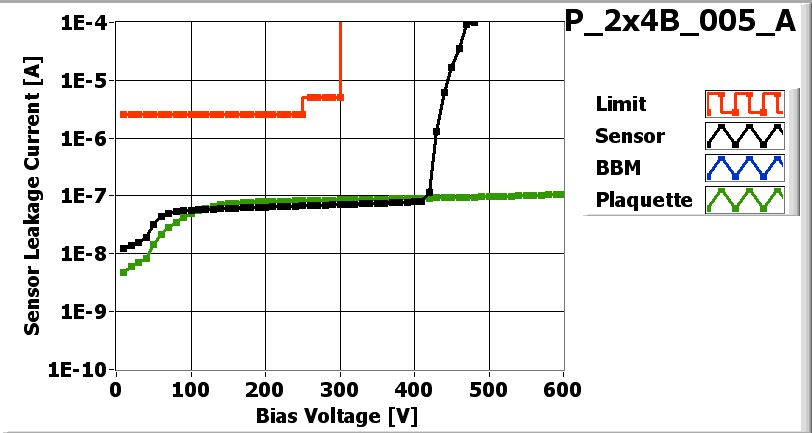

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 50 V

Operational Voltage 90 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7
Ibias_DAC	158	150	146	150	144	158	156	142
Vana	153	126	144	147	126	153	144	146
Cal_Del	80	91	83	89	94	102	92	84
Vthrs_Comp	93	83	87	84	90	85	86	82
Unbumped	0	0	0	0	0	0	0	0
Dead	0	0	0	0	1	0	0	0
Noisy	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0
Total BAD	0	0	0	0	1	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

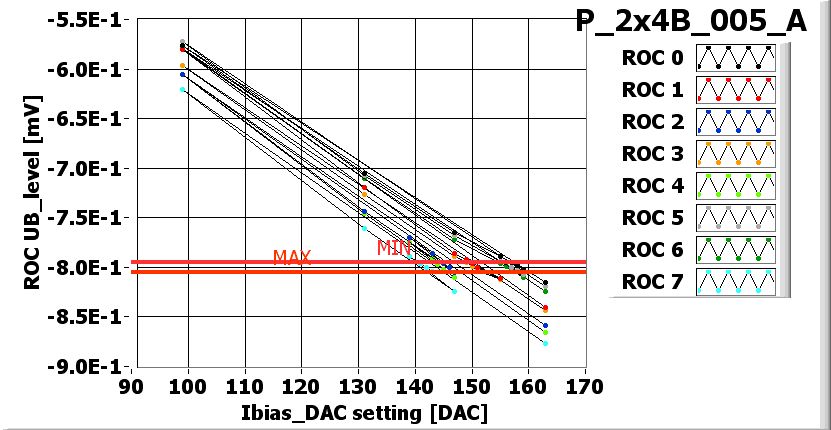

	I_BIAS_DAC_XML-File

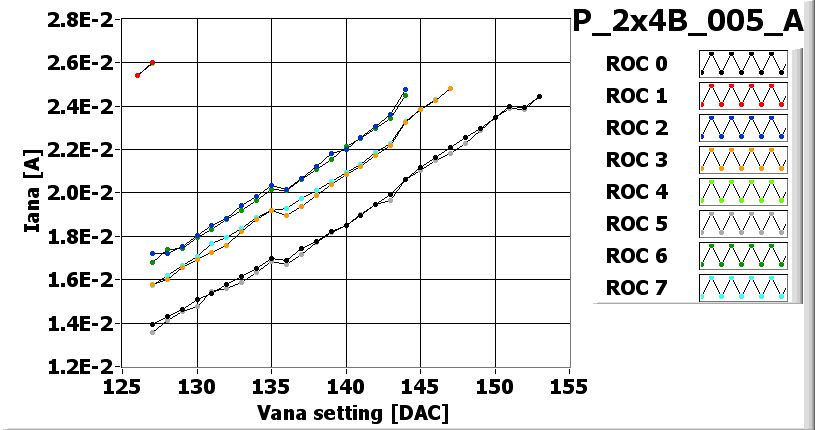

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	100	125	100	100	135	90	100	90
Vsf	150	135	145	150	140	155	145	145
VoffsetOp	125	80	130	100	65	95	105	100
VIbias_PH	100	100	95	100	100	95	95	95

Noise MAP at VMAX

Efficiency MAP

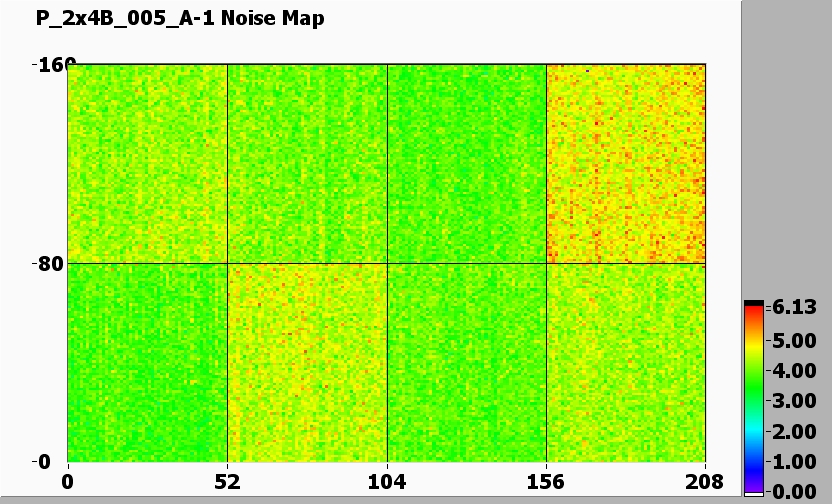

Noise MAP at -200 V

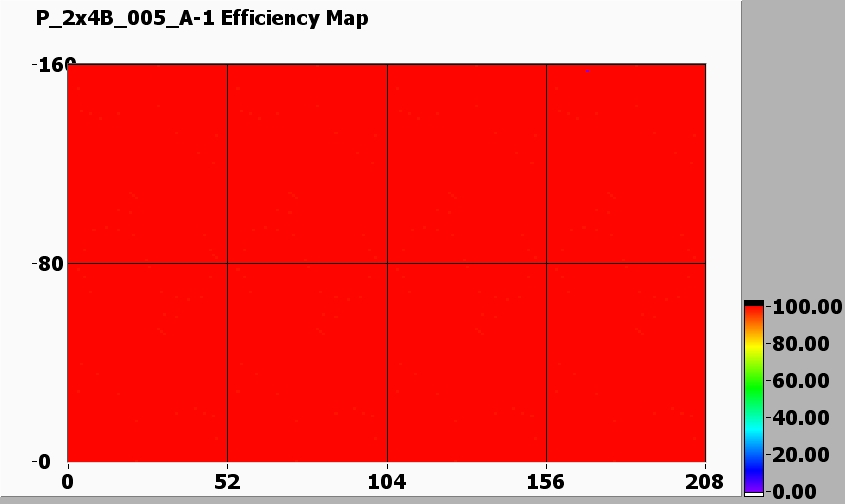

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-11-20
