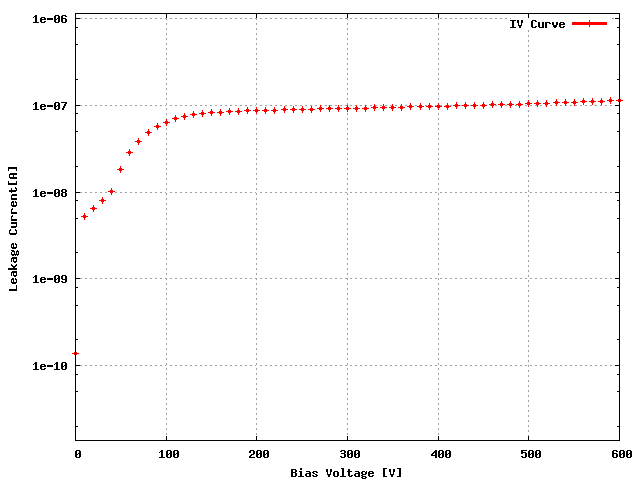

Sensor: S_2x4B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	27D
ROC1	W47_DXLQF5T	27A
ROC2	W47_DXLQF5T	26C
ROC3	W47_DXLQF5T	38C
ROC4	W55_D3LQE4T	75D
ROC5	W55_D3LQE4T	76C
ROC6	W55_D3LQE4T	61B
ROC7	W55_D3LQE4T	61D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	160	154	148	154	146	158	158	144
Vana, VanaData	151	125	144	146	125	153	144	146
CalDelData and plots	79	91	83	88	94	102	92	84
VthrCompData and plots	91	82	88	83	89	85	87	83
TestDdata ,TestD Plots	0	0	0	19	633	68	0	0
LightData ,Light Plots	1331	2152	708	6	0	40	652	1102
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	BAD	BAD	GOOD	GOOD
Pass/Fail LIGHT	BAD	BAD	BAD	GOOD	GOOD	GOOD	BAD	BAD

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

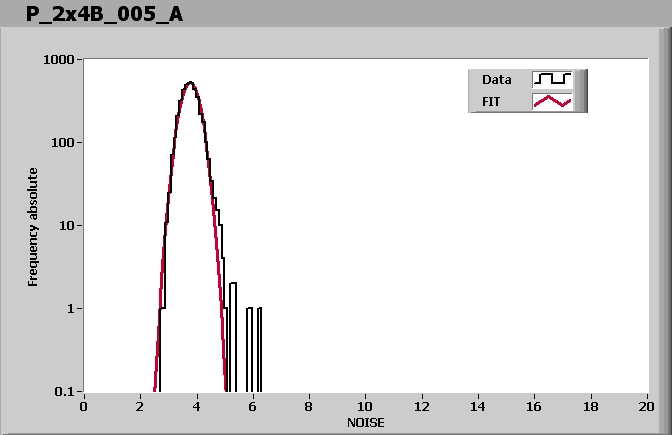

ROC0 NOISE			MEAN = 3.764618 SIGMA = 0.307474
ROC1 NOISE			MEAN = 4.424912 SIGMA = 0.353014

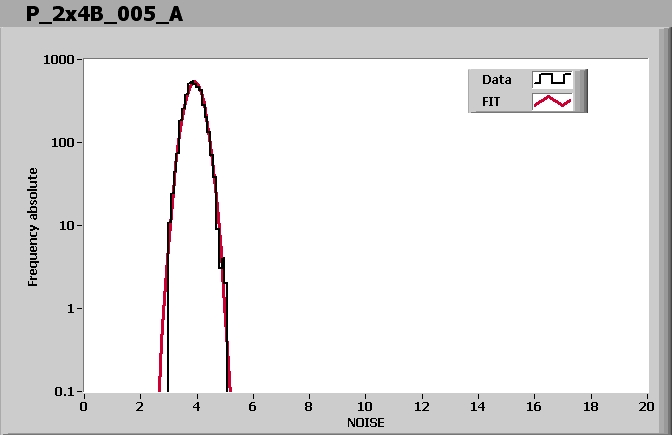

ROC2 NOISE			MEAN = 3.909570 SIGMA = 0.305137
ROC3 NOISE			MEAN = 4.234270 SIGMA = 0.332164
ROC4 NOISE			MEAN = 4.752737 SIGMA = 0.376361
ROC5 NOISE			MEAN = 3.959907 SIGMA = 0.311650
ROC6 NOISE			MEAN = 4.214906 SIGMA = 0.358976
ROC7 NOISE			MEAN = 4.207393 SIGMA = 0.330266

Comment (if any):

End testing time: 5:41 PM
