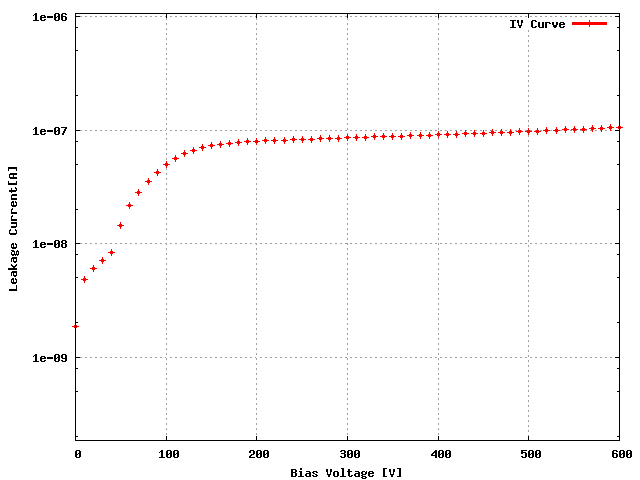

Sensor: S_2x4B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W47_DXLQF5T	27D
ROC1	W47_DXLQF5T	27A
ROC2	W47_DXLQF5T	26C
ROC3	W47_DXLQF5T	38C
ROC4	W55_D3LQE4T	75D
ROC5	W55_D3LQE4T	76C
ROC6	W55_D3LQE4T	61B
ROC7	W55_D3LQE4T	61D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	158	150	146	150	144	158	156	142
Vana, VanaData	153	126	144	147	126	153	144	146
CalDelData and plots	80	91	83	89	94	102	92	84
VthrCompData and plots	93	83	87	84	90	85	86	82
TestDdata ,TestD Plots	0	37	3	72	854	246	5	2
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	BAD	BAD	BAD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

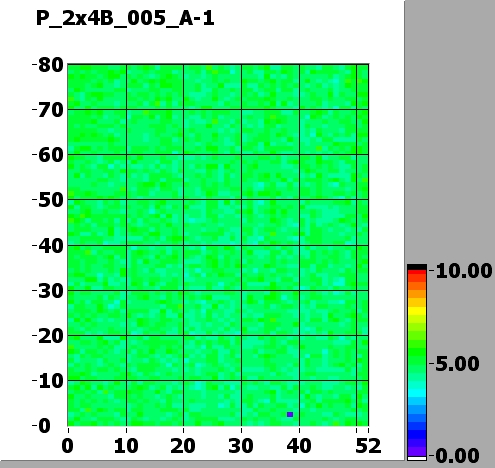

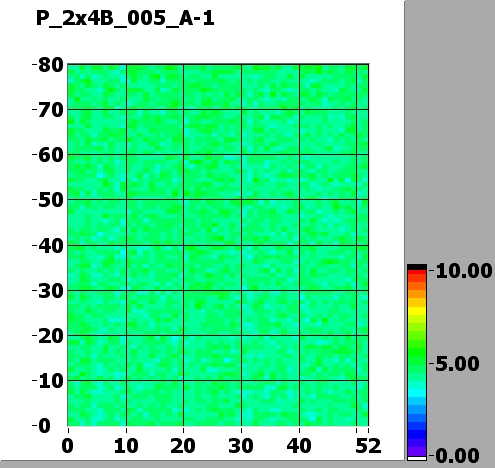

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

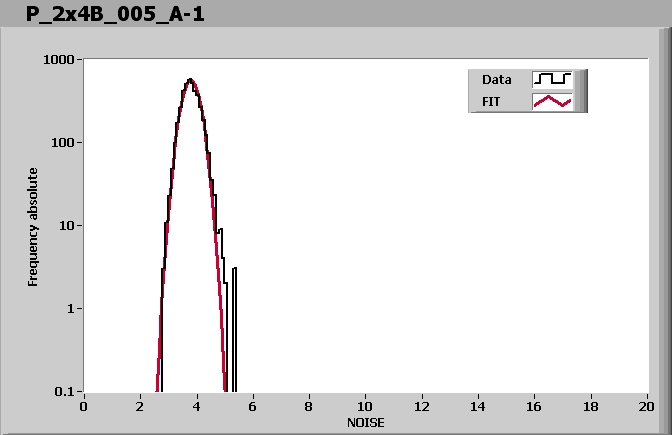

ROC0 NOISE			MEAN = 3.786375 SIGMA = 0.293501
ROC1 NOISE			MEAN = 4.447446 SIGMA = 0.359110
ROC2 NOISE			MEAN = 3.923524 SIGMA = 0.310671

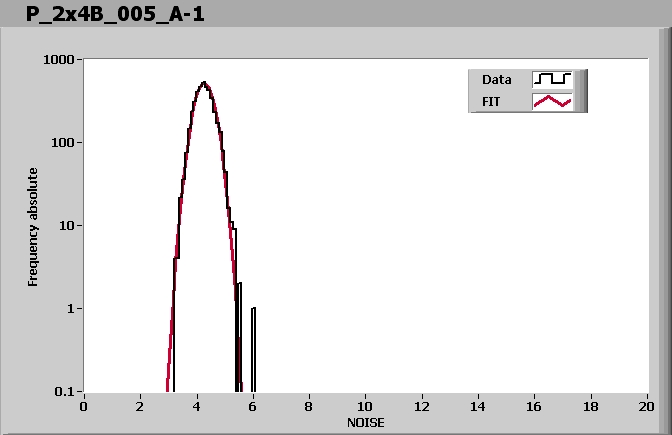

ROC3 NOISE			MEAN = 4.262236 SIGMA = 0.320216
ROC4 NOISE			MEAN = 4.752496 SIGMA = 0.379119
ROC5 NOISE			MEAN = 3.865732 SIGMA = 0.298962
ROC6 NOISE			MEAN = 4.055811 SIGMA = 0.336364
ROC7 NOISE			MEAN = 4.235443 SIGMA = 0.321575

Comment (if any): TestD showed too many bad pixels

P_2x4B_005_A.html,

End testing time: 11:58 AM
