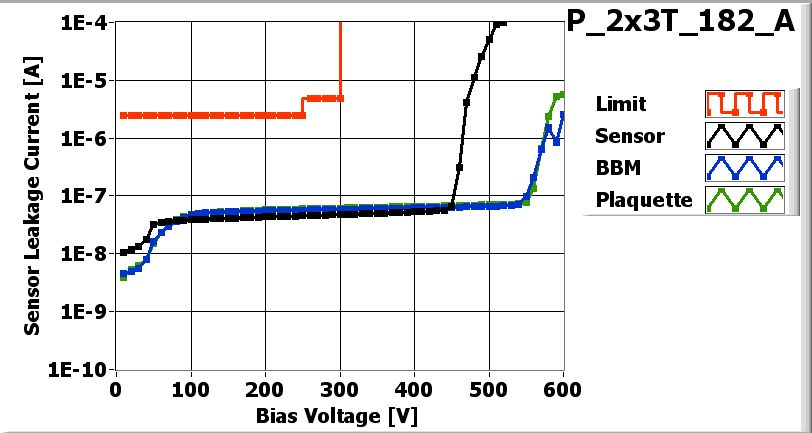

![[IMAGE] of](P_2x3T_182_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_182_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 1/30/2007
| Part | ID |
|---|---|
| BBM | BBM_182-2x3T |
| VHDI | 2x3_437 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 27A |
| ROC1 | W28_X54K5TT | 26D |
| ROC2 | W28_X54K5TT | 26B |
| ROC3 | W29_X64K5ST | 64C |
| ROC4 | W29_X64K5ST | 64D |
| ROC5 | W29_X64K5ST | 65B |
Inspected by Lockwood Gale on date 2/14/2007
| LR_dev | 0.033 |
| LL_dev | 0.037 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/14/2007 by Lockwood Gale
P_2x3T_182_Aon 2/16/2007 10:39 AM
P_2x3T_182_Aon 2/16/2007 10:39 AM
PLAQUETTE TESTED on 2007-02-16 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 140 | 128 | 142 | 132 | 146 | 138 | |
| Vana | 134 | 131 | 141 | 140 | 135 | 138 | |
| Cal_Del | 73 | 76 | 91 | 68 | 85 | 84 | |
| Vthrs_Comp | 75 | 75 | 76 | 90 | 73 | 79 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

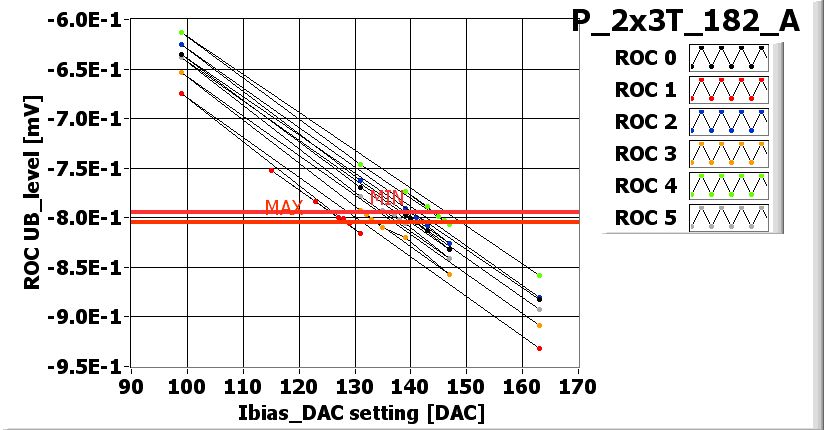

![[IMAGE] of](P_2x3T_182_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

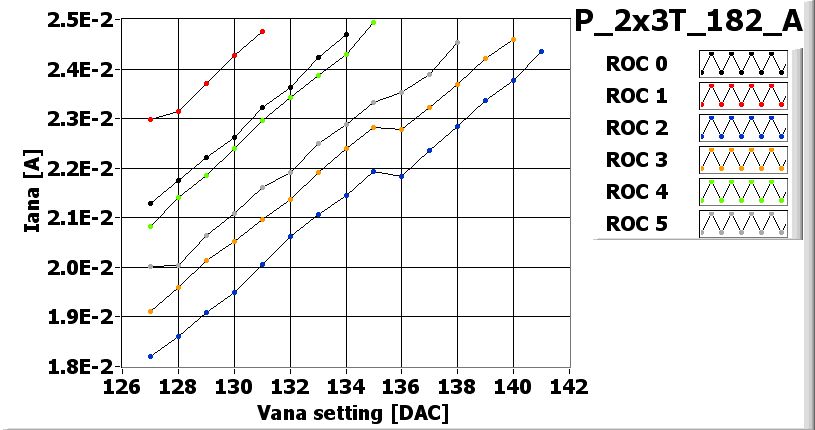

![[IMAGE] of](P_2x3T_182_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_182_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_182_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_182_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_182_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 120 | 115 | 90 | 110 | 95 |
| Vsf | 140 | 135 | 140 | 140 | 140 | 135 |
| VoffsetOp | 100 | 70 | 80 | 105 | 80 | 90 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 105 |
Noise MAP
![[IMAGE] of](P_2x3T_182_A-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_182_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 140 | 120 | 115 | 90 | 110 | 95 |
| Vsf | 140 | 135 | 140 | 140 | 140 | 135 |
| VoffsetOp | 100 | 70 | 80 | 105 | 80 | 90 |
| VIbias_PH | 100 | 100 | 105 | 100 | 100 | 105 |
PLAQUETTE READY TO BE POTTED
