P_2x3T_182

P_2x3T_182_A

Production testing

Date:2/16/2007

Operator: Gino Bolla

start testing time:10:39 AM

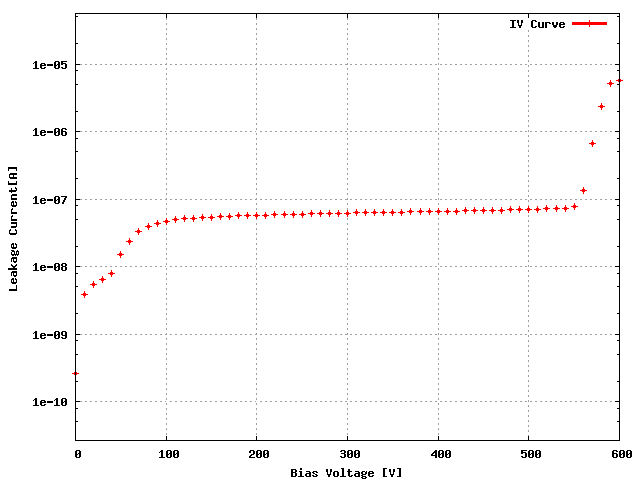

Sensor: S_2x3T_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W28_X54K5TT 27A

ROC1 W28_X54K5TT 26D

ROC2 W28_X54K5TT 26B

ROC3 W29_X64K5ST 64C

ROC4 W29_X64K5ST 64D

ROC5 W29_X64K5ST 65B

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	27A
ROC1	W28_X54K5TT	26D
ROC2	W28_X54K5TT	26B
ROC3	W29_X64K5ST	64C
ROC4	W29_X64K5ST	64D
ROC5	W29_X64K5ST	65B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data 140 128 142 132 146 138

Vana, VanaData 134 131 141 140 135 138

CalDelData and plots 73 76 91 68 85 84

VthrCompData and plots 75 75 76 90 73 79

TestDdata ,TestD Plots 0 0 0 0 0 0

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

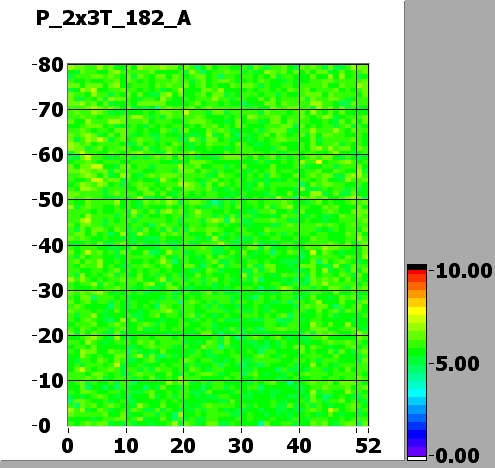

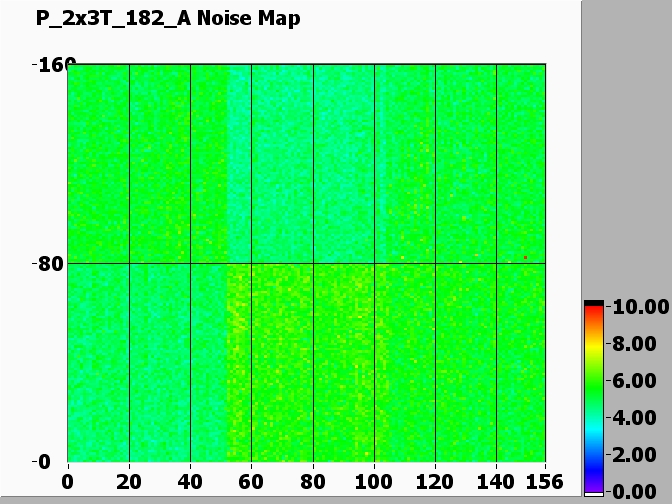

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	140	120	115	90	110	95
Vsf	140	135	140	140	140	135
VoffsetOp	100	70	80	105	80	90
VIbias_PH	100	100	105	100	100	105

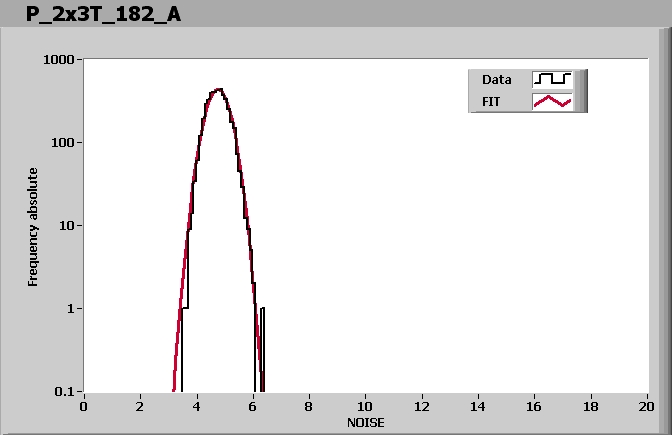

ROC0 NOISE			MEAN = 4.744243 SIGMA = 0.384862

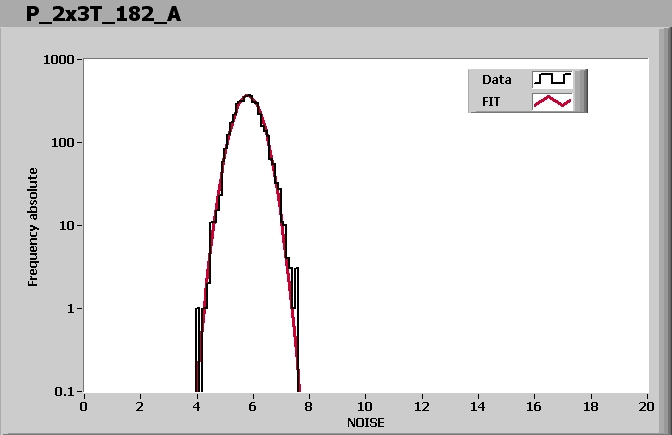

ROC1 NOISE			MEAN = 5.809210 SIGMA = 0.453613

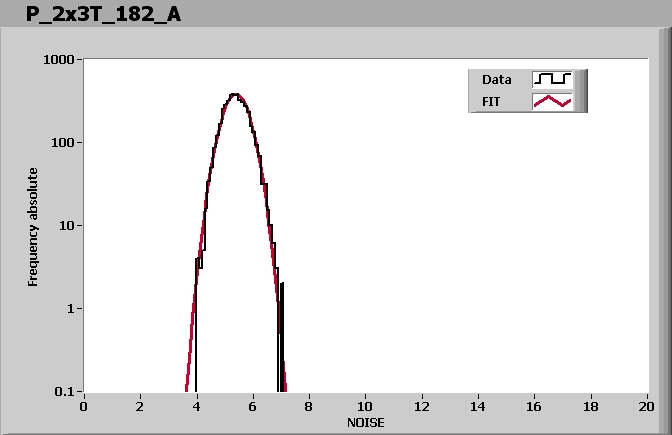

ROC2 NOISE			MEAN = 5.386511 SIGMA = 0.436680

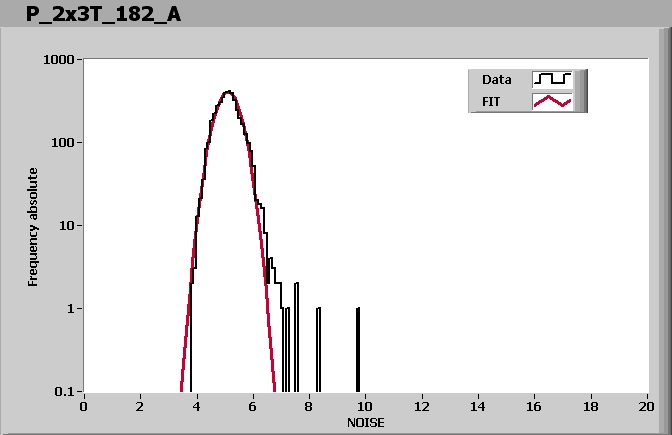

ROC3 NOISE			MEAN = 5.099610 SIGMA = 0.407096
ROC4 NOISE			MEAN = 4.575488 SIGMA = 0.355586

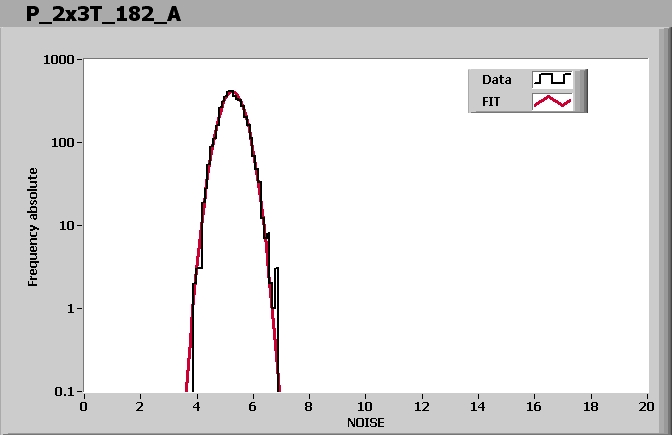

ROC5 NOISE			MEAN = 5.262679 SIGMA = 0.405602

Comment (if any): OK.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:15 AM

Ibias_DAC, Ibias_DAC Data	140	128	142	132	146	138
Vana, VanaData	134	131	141	140	135	138
CalDelData and plots	73	76	91	68	85	84
VthrCompData and plots	75	75	76	90	73	79
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
