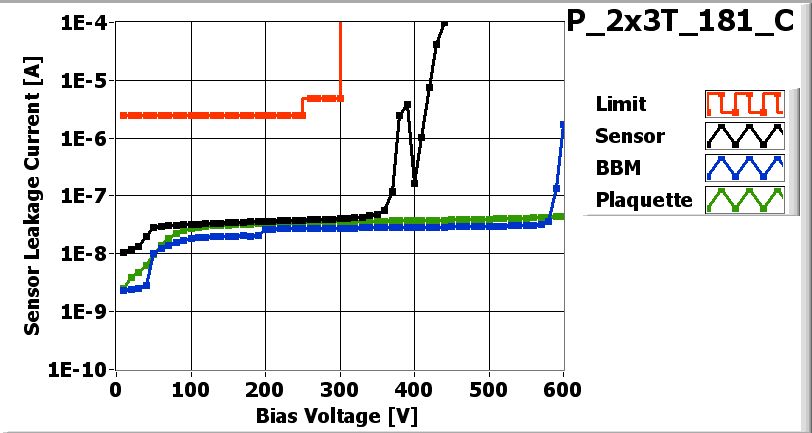

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_181_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 42 V |
| Operational Voltage 82 V |
Parts committed by Isaac Childres on date 5/15/2007
| Part | ID |
|---|---|
| BBM | BBM_181-2x3T |
| VHDI | 2x3_611 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 46B |
| ROC1 | KBNG0QT | 56D |
| ROC2 | KBNG0QT | 46A |
| ROC3 | KBNG0QT | 47B |
| ROC4 | KBNG0QT | 47D |
| ROC5 | KBNG0QT | 37B |
Inspected by Arndt Kirk on date 5/21/2007
| LR_dev | 0.078 |
| LL_dev | 0.070 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/21/2007 by Arndt Kirk
P_2x3T_181_Con 5/21/2007 3:45 PM
P_2x3T_181_C-1on 5/21/2007 3:55 PM
P_2x3T_181_C-2on 5/21/2007 4:07 PM
P_2x3T_181_C-3on 5/21/2007 4:12 PM
P_2x3T_181_C-4on 5/21/2007 4:21 PM
P_2x3T_181_C-5on 5/21/2007 4:23 PM
P_2x3T_181_C-6on 5/21/2007 4:36 PM
P_2x3T_181_C-7on 5/21/2007 4:39 PM
P_2x3T_181_C-7on 5/21/2007 4:39 PM
PLAQUETTE encapsulated on 5/22/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/22/2007 by Perera Rajiv
P_2x3T_181_C-8on 5/25/2007 12:19 PM
P_2x3T_181_C-8on 5/25/2007 12:19 PM
PLAQUETTE TESTED on 2007-05-25 by Emily Grace
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 158 | 150 | 150 | 158 | 154 | 152 | |
| Vana | 142 | 144 | 129 | 139 | 144 | 139 | |
| Cal_Del | 67 | 81 | 73 | 77 | 77 | 81 | |
| Vthrs_Comp | 86 | 83 | 76 | 77 | 80 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 1 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

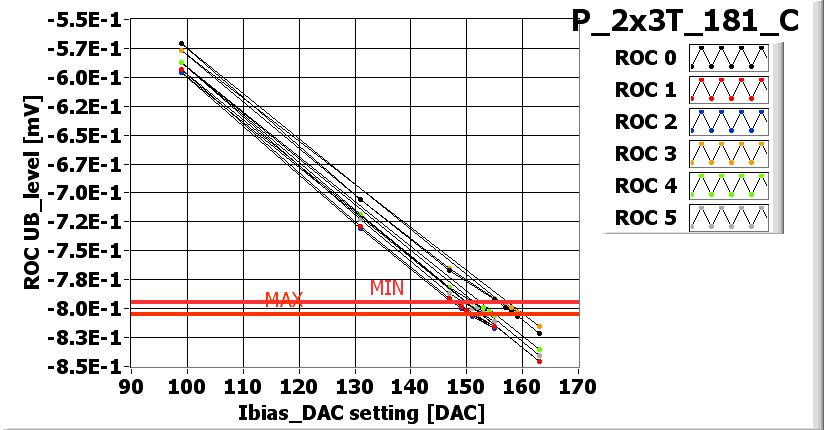

![[IMAGE] of](P_2x3T_181_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_181_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_181_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_181_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_181_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_181_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 90 | 95 | 110 | 95 | 90 | 100 |
| Vsf | 140 | 145 | 140 | 140 | 140 | 140 |
| VoffsetOp | 80 | 95 | 85 | 105 | 75 | 90 |
| VIbias_PH | 105 | 95 | 95 | 100 | 105 | 105 |

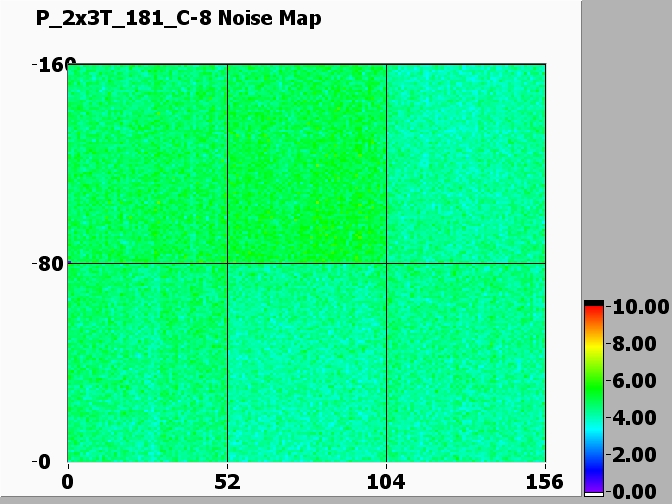

Noise MAP at VMAX
![[IMAGE] of](P_2x3T_181_C-8-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_181_C-8-580-efficiency.jpg)

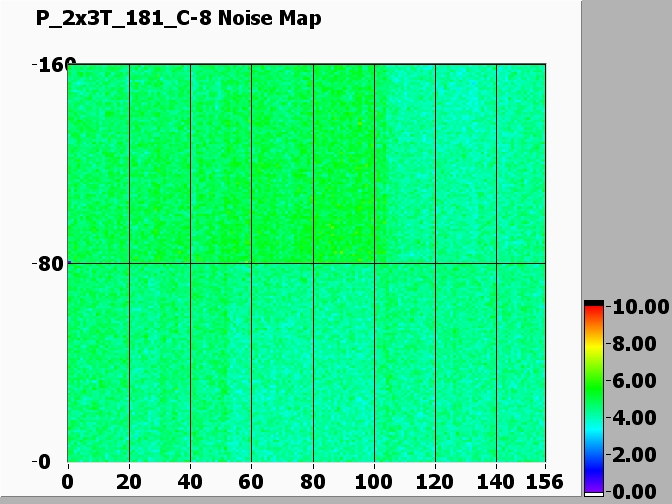

Noise MAP at -200 V
![[IMAGE] of](P_2x3T_181_C-8-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_181_C-8-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
