P_2x3T_181

P_2x3T_181_C-8

Production testing

Date:5/25/2007

Operator: Emily Grace

start testing time:12:19 PM

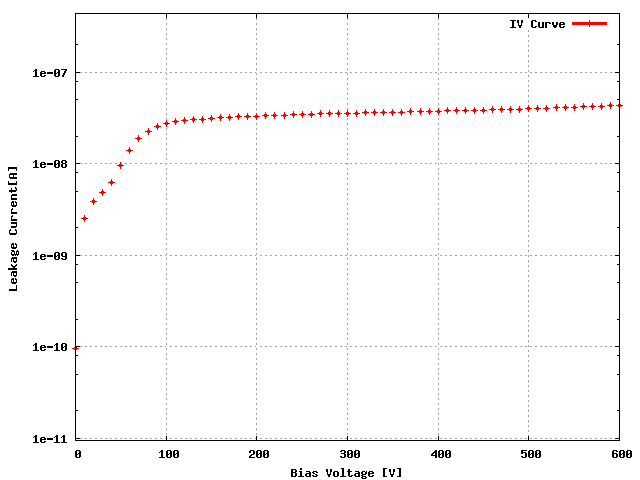

Sensor: S_2x3T_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KBNG0QT 46B

ROC1 KBNG0QT 56D

ROC2 KBNG0QT 46A

ROC3 KBNG0QT 47B

ROC4 KBNG0QT 47D

ROC5 KBNG0QT 37B

ROC	ROC wafer	Label
ROC0	KBNG0QT	46B
ROC1	KBNG0QT	56D
ROC2	KBNG0QT	46A
ROC3	KBNG0QT	47B
ROC4	KBNG0QT	47D
ROC5	KBNG0QT	37B

Depletion Voltage is -42 and suggested operational voltage is -82

Ibias_DAC, Ibias_DAC Data 158 150 150 158 154 152

Vana, VanaData 142 144 129 139 144 139

CalDelData and plots 67 81 73 77 77 81

VthrCompData and plots 86 83 76 77 80 77

TestDdata ,TestD Plots 0 0 0 0 0 1

LightData ,Light Plots 0 0 0 0 0 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

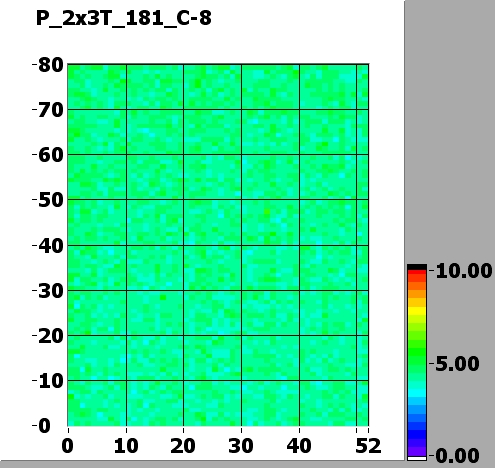

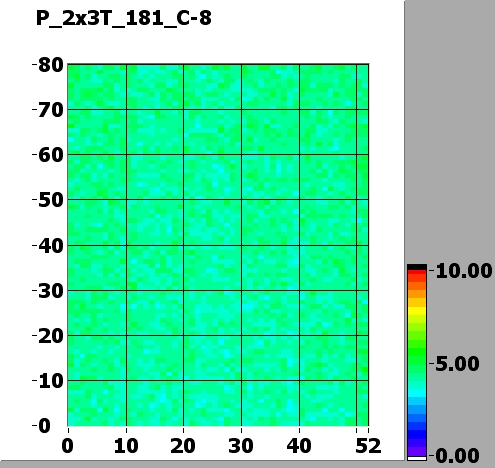

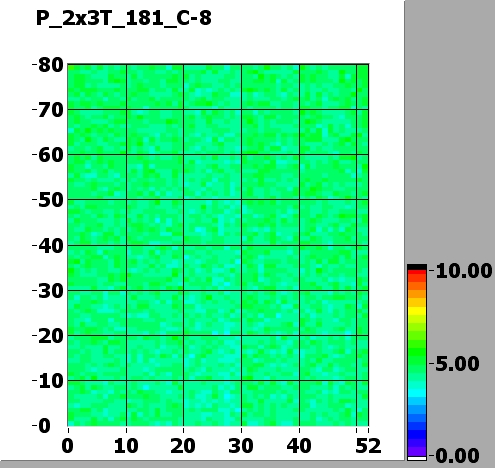

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	90	95	110	95	90	100
Vsf	140	145	140	140	140	140
VoffsetOp	80	95	85	105	75	90
VIbias_PH	105	95	95	100	105	105

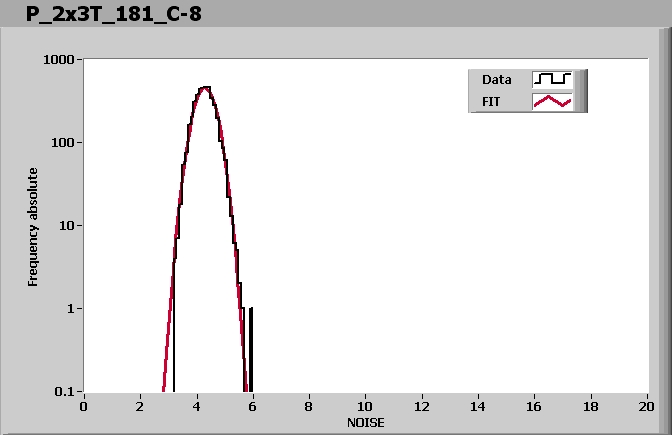

ROC0 NOISE			MEAN = 4.485268 SIGMA = 0.362679
ROC1 NOISE			MEAN = 4.189395 SIGMA = 0.323166
ROC2 NOISE			MEAN = 4.285191 SIGMA = 0.356434
ROC3 NOISE			MEAN = 4.202400 SIGMA = 0.331260

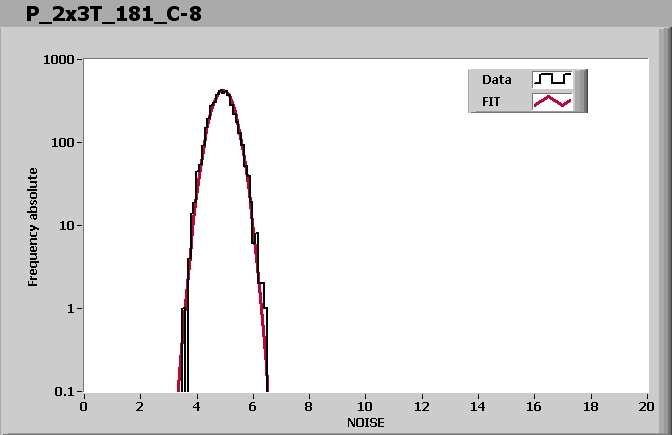

ROC4 NOISE			MEAN = 4.927904 SIGMA = 0.389220

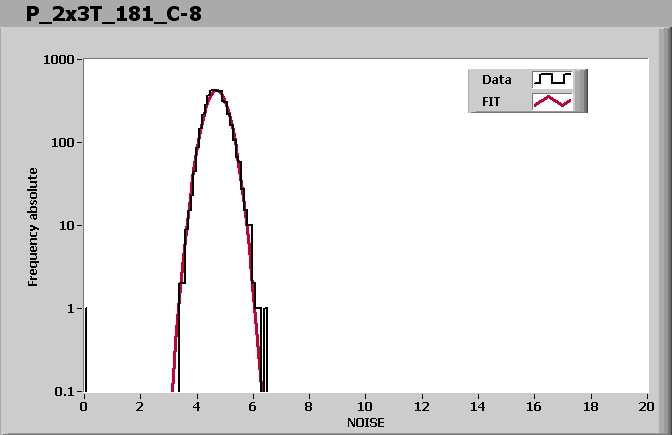

ROC5 NOISE			MEAN = 4.702777 SIGMA = 0.388817

Comment (if any):

This Device have been tested 8Times prior to this one and here are the links to the previous tests:

End testing time: 12:44 PM
