P_2x3T_176

P_2x3T_176_C

Parts committed by Arndt Kirk on date 5/10/2007

Part	ID
BBM	BBM_176-2x3T
VHDI	2x3_247

ROC ROC wafer Label

ROC0 KFNG13T 14B

ROC1 KFNG13T 14D

ROC2 KFNG13T 24C

ROC3 KFNG13T 63C

ROC4 KFNG13T 15C

ROC5 KFNG13T 63B

ROC	ROC wafer	Label
ROC0	KFNG13T	14B
ROC1	KFNG13T	14D
ROC2	KFNG13T	24C
ROC3	KFNG13T	63C
ROC4	KFNG13T	15C
ROC5	KFNG13T	63B

Inspected by Lockwood Gale on date 5/11/2007

LR_dev 0.042

LL_dev 0.030

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 5/11/2007 by Lockwood Gale

PLAQUETTE encapsulated on 5/11/2007 by Ortiz Jason

PLAQUETTE made READY for testing on 5/11/2007 by Ortiz Jason

P_2x3T_176_Con 5/14/2007 9:53 AM

PLAQUETTE TESTED on 2007-05-14 by Gino Bolla

IV_XML-File

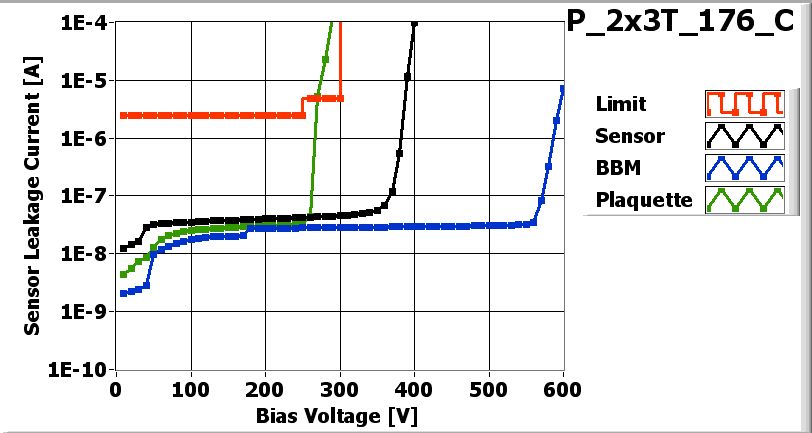

Maximum Voltage 290 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5
Ibias_DAC	150	164	166	158	154	160
Vana	138	154	135	129	144	141
Cal_Del	74	75	70	83	75	74
Vthrs_Comp	83	86	77	74	91	86
Unbumped	410	4007	4155	4150	3250	24
Dead	0	0	0	1	0	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	410	4007	4155	4151	3250	24

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File

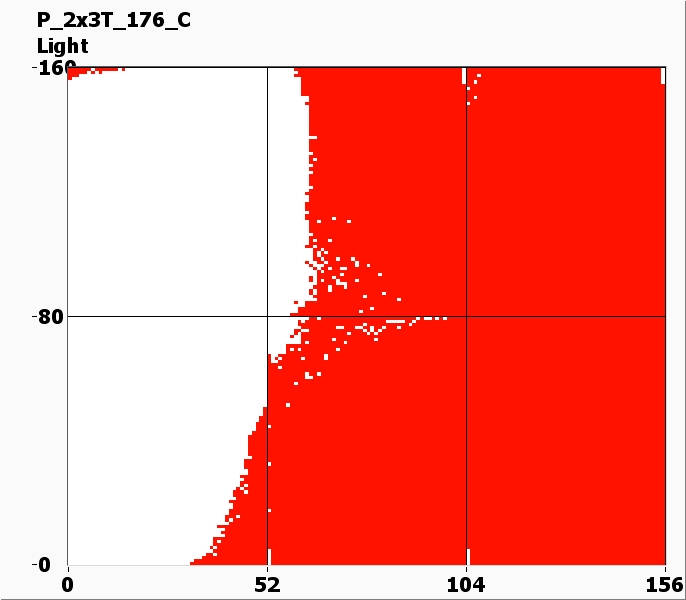

	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	110	95	105	135	95	95
Vsf	140	145	140	140	145	140
VoffsetOp	85	115	85	80	105	100
VIbias_PH	100	100	100	100	100	95

Noise MAP

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

P_2x3T_176_C-1on 5/18/2007 2:31 PM

P_2x3T_176_C-2on 5/30/2007 3:40 PM

P_2x3T_176_C-2on 5/30/2007 3:40 PM AFTER POTTING

BAD CHANNELS COMPARISON XML-files/NOW

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 68/9 410/500

ROC1 0/0 0/0 0/0 3019/2253 4007/4063

ROC2 0/0 0/0 0/0 3971/3977 4155/4154

ROC3 1/3 0/0 0/0 3899/3721 4150/4146

ROC4 0/0 0/0 0/0 2042/1484 3250/3322

ROC5 0/0 0/0 0/0 9/1 24/26

BACK TO MEASURE IT

NOISE measurement taken at -102 V and current -2.245878E-08 , Acurrent 0.171928, Dcurrent 0.454647

Noise MAP

Efficiency MAP

NOISE HISTO

COVERED FROM LASER

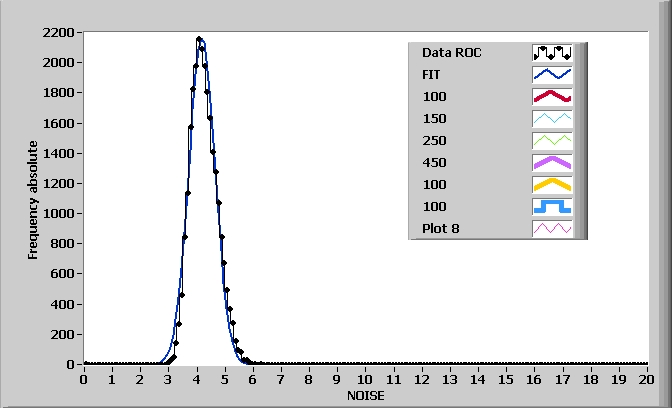

NOISE measurement taken at -103 V and current -9.344627E-07 , Acurrent 0.172021, Dcurrent 0.454631

Noise MAP

Efficiency MAP

NOISE HISTO

After a few SHOTS

NOISE measurement taken at -104 V and current -4.020702E-08 , Acurrent 0.172009, Dcurrent 0.454553

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -105 V and current -1.027126E-06 , Acurrent 0.171920, Dcurrent 0.454485

Noise MAP

Efficiency MAP

NOISE HISTO

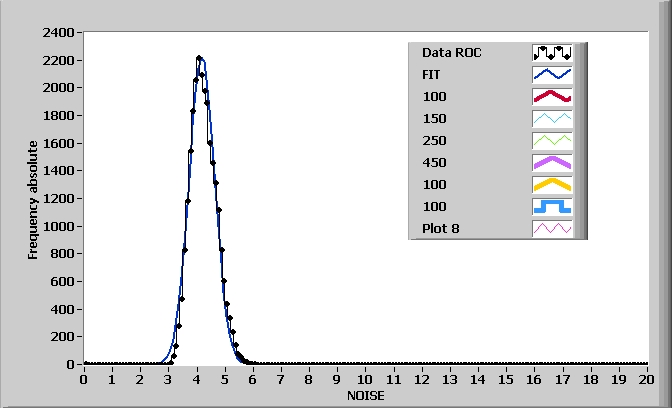

NOISE measurement taken at -106 V and current -1.149266E-06 , Acurrent 0.172045, Dcurrent 0.454528

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -107 V and current -8.846316E-07 , Acurrent 0.172041, Dcurrent 0.454526

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -108 V and current -1.000829E-06 , Acurrent 0.170425, Dcurrent 0.454541

Noise MAP

Efficiency MAP

NOISE HISTO

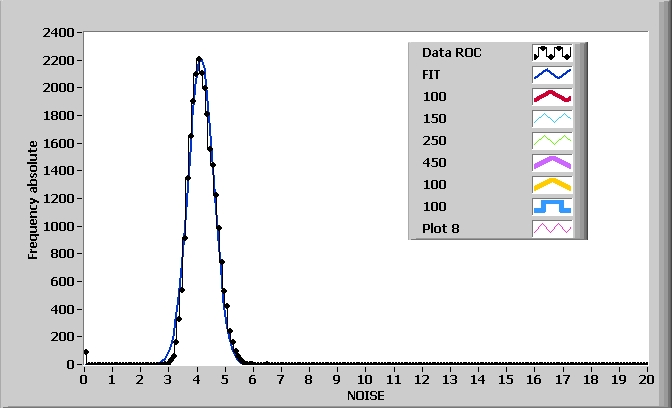

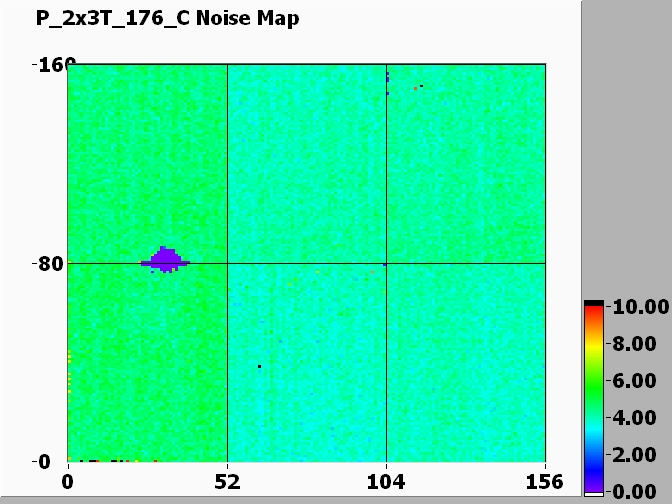

NOISE measurement taken at -109 V and current -2.044015E-06 , Acurrent 0.169787, Dcurrent 0.454467

Noise MAP

Efficiency MAP

NOISE HISTO

NOISE measurement taken at -109 V and current -3.004706E-06 , Acurrent 0.167771, Dcurrent 0.453968

Noise MAP

Efficiency MAP

NOISE HISTO

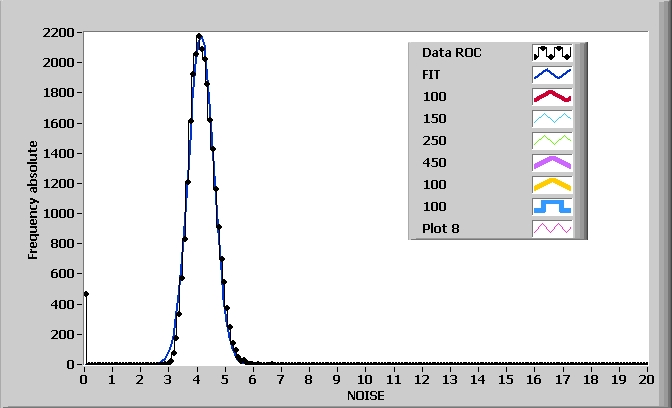

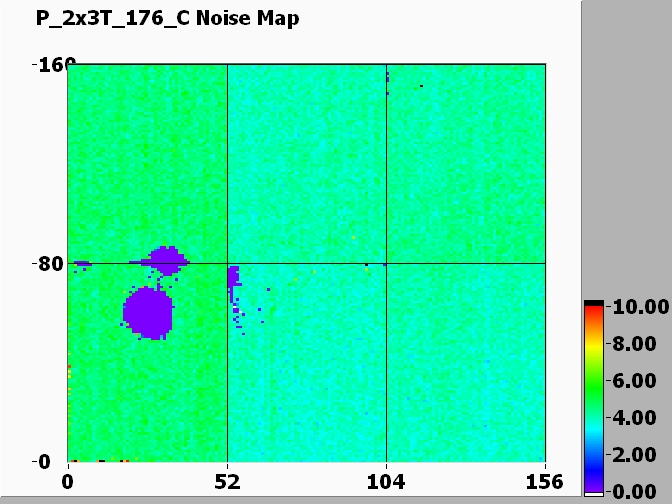

NOISE measurement taken at -110 V and current -1.929871E-06 , Acurrent 0.168062, Dcurrent 0.454518

Noise MAP

Efficiency MAP

NOISE HISTO

Inspected by Arndt Kirk on date 6/1/2007

Picture Comment

Effect of pulsed IR laser visible on sensor above ROCs 0 and 5, and on encapsulant and surface of ROC 0 near wirebond pads for channels 26-33.

Shipped on date 2007-09-10
