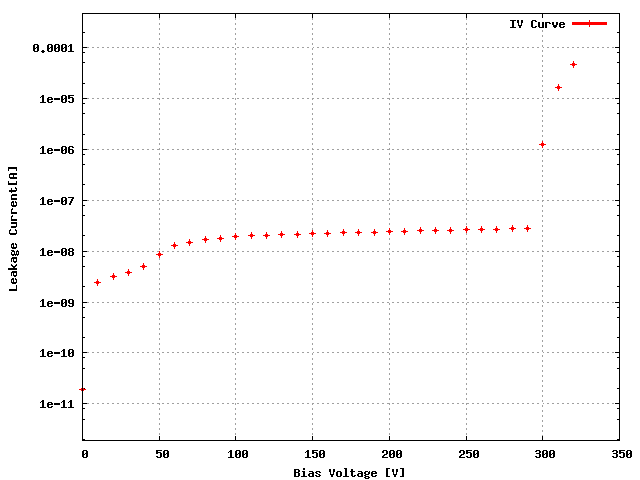

Sensor: S_2x3T_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | KFNG13T | 14B |
ROC1 | KFNG13T | 14D |
ROC2 | KFNG13T | 24C |
ROC3 | KFNG13T | 63C |
ROC4 | KFNG13T | 15C |
ROC5 | KFNG13T | 63B |
Ibias_DAC, Ibias_DAC Data | 148 | 164 | 166 | 158 | 154 | 160 |
Vana, VanaData | 139 | 154 | 135 | 129 | 145 | 141 |
CalDelData and plots | 74 | 76 | 71 | 83 | 75 | 74 |
VthrCompData and plots | 84 | 86 | 77 | 74 | 92 | 85 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 45 | 3020 | 3951 | 3864 | 1957 | 10 |
