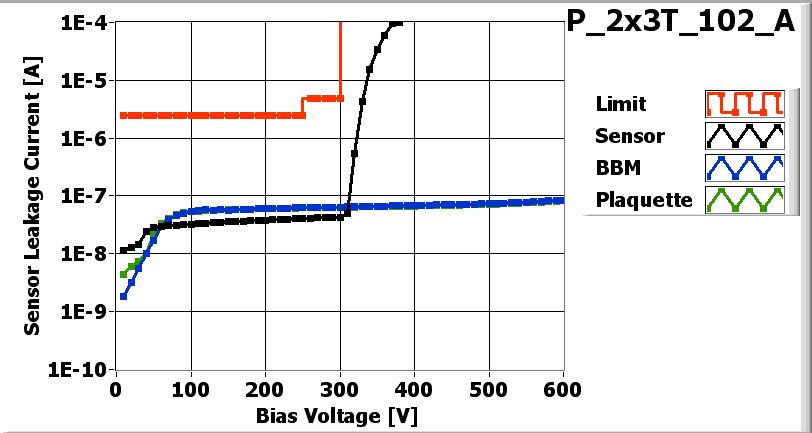

![[IMAGE] of](P_2x3T_102_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

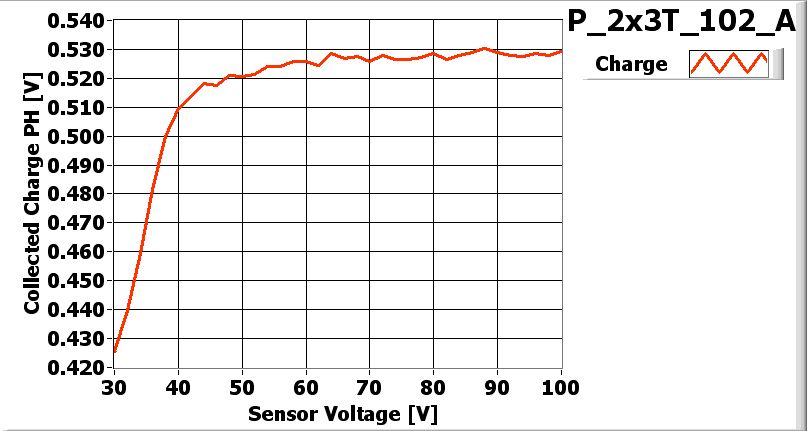

![[IMAGE] of](P_2x3T_102_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 2/13/2007
| Part | ID |
|---|---|
| BBM | BBM_102-2x3T |
| VHDI | 2x3_467 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 43D |
| ROC1 | W29_X64K5ST | 43C |
| ROC2 | W29_X64K5ST | 43A |
| ROC3 | W29_X64K5ST | 20D |
| ROC4 | W29_X64K5ST | 21A |
| ROC5 | W29_X64K5ST | 21B |
Inspected by Arndt Kirk on date 2/20/2007
| LR_dev | 0.082 |
| LL_dev | 0.082 |
| FINAL COMMENT by Arndt Kirk | No assembly problems. ROC0 chn 34,35; ROC2 chn 1,2,35; ROC5 chn 1 required multiple attempts to bond VHDI pads (raised 2nd bond time to 60 msec) - otherwise no wirebond problems. |
PLAQUETTE made READY for testing on 2/20/2007 by Arndt Kirk
PLAQUETTE encapsulated on 2/20/2007 by Ozhan Koybasi
P_2x3T_102_Aon 2/21/2007 11:05 AM
P_2x3T_102_Aon 2/21/2007 11:05 AM
PLAQUETTE TESTED on 2007-02-21 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 142 | 134 | 136 | 122 | 142 | 124 | |
| Vana | 125 | 129 | 124 | 117 | 133 | 129 | |
| Cal_Del | 96 | 79 | 81 | 90 | 87 | 83 | |
| Vthrs_Comp | 69 | 80 | 79 | 57 | 75 | 66 | |
| Unbumped | 0 | 0 | 0 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

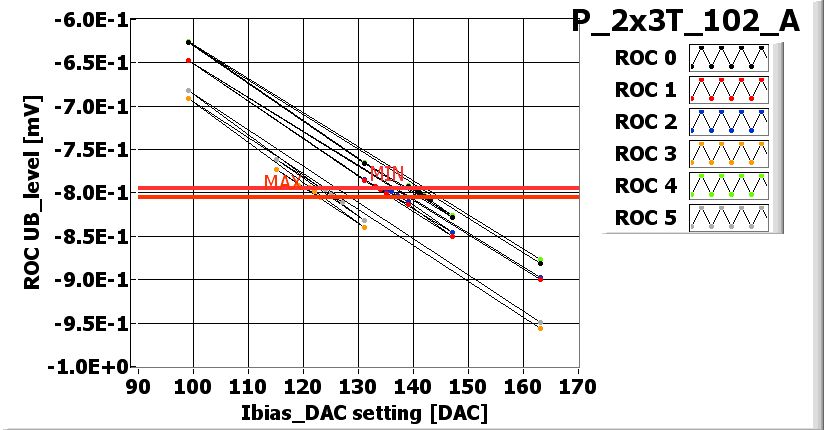

![[IMAGE] of](P_2x3T_102_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

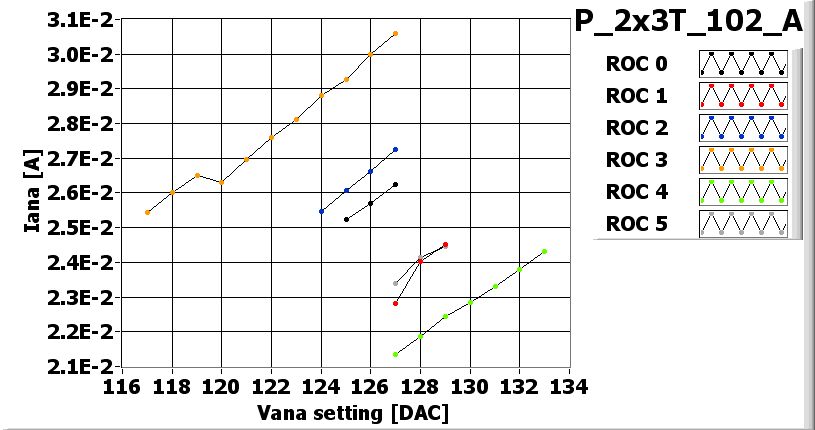

![[IMAGE] of](P_2x3T_102_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_102_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_102_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_102_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_102_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 125 | 130 | 140 | 120 | 150 |
| Vsf | 135 | 140 | 140 | 130 | 140 | 135 |
| VoffsetOp | 80 | 85 | 90 | 55 | 85 | 65 |
| VIbias_PH | 100 | 100 | 100 | 95 | 100 | 105 |

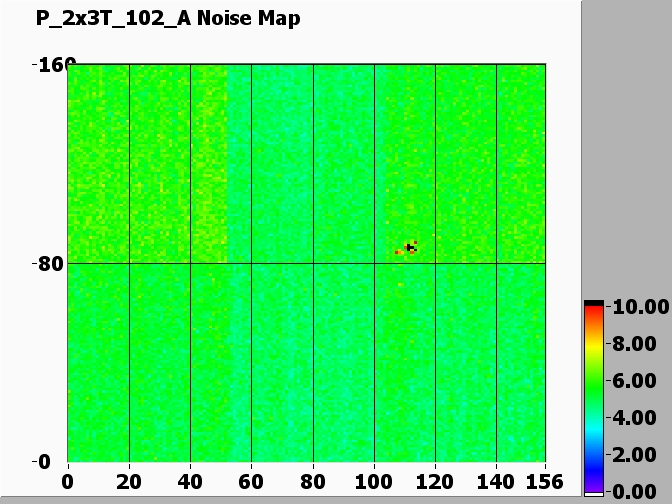

Noise MAP
![[IMAGE] of](P_2x3T_102_A-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_102_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
