P_2x3T_102

P_2x3T_102_A

Production testing

Date:2/21/2007

Operator: Cameron McKinney

start testing time:11:05 AM

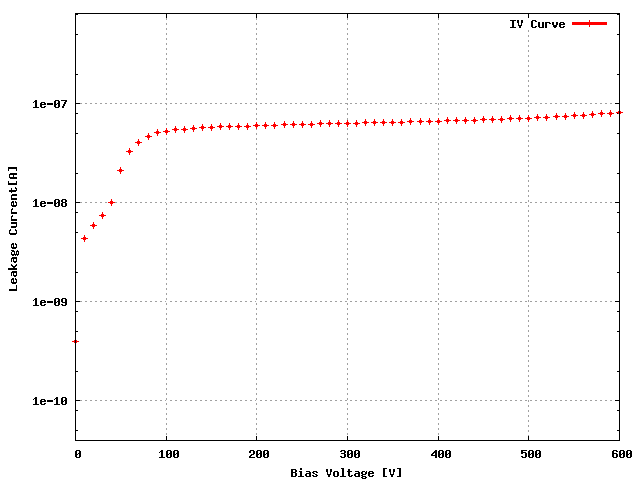

Sensor: S_2x3T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W29_X64K5ST 43D

ROC1 W29_X64K5ST 43C

ROC2 W29_X64K5ST 43A

ROC3 W29_X64K5ST 20D

ROC4 W29_X64K5ST 21A

ROC5 W29_X64K5ST 21B

ROC	ROC wafer	Label
ROC0	W29_X64K5ST	43D
ROC1	W29_X64K5ST	43C
ROC2	W29_X64K5ST	43A
ROC3	W29_X64K5ST	20D
ROC4	W29_X64K5ST	21A
ROC5	W29_X64K5ST	21B

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data 142 134 136 122 142 124

Vana, VanaData 125 129 124 117 133 129

CalDelData and plots 96 79 81 90 87 83

VthrCompData and plots 69 80 79 57 75 66

TestDdata ,TestD Plots 0 0 0 2 0 0

LightData ,Light Plots 0 0 0 0 1 0

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

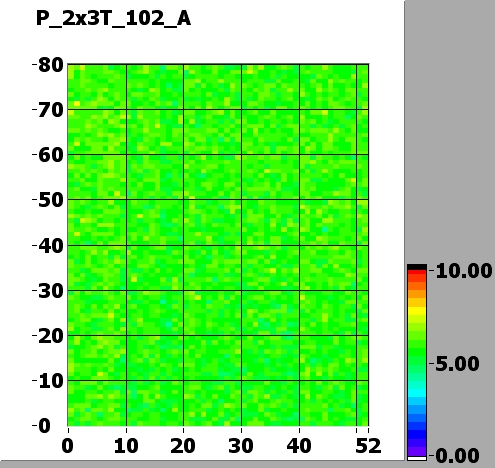

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	120	125	130	140	120	150
Vsf	135	140	140	130	140	135
VoffsetOp	80	85	90	55	85	65
VIbias_PH	100	100	100	95	100	105

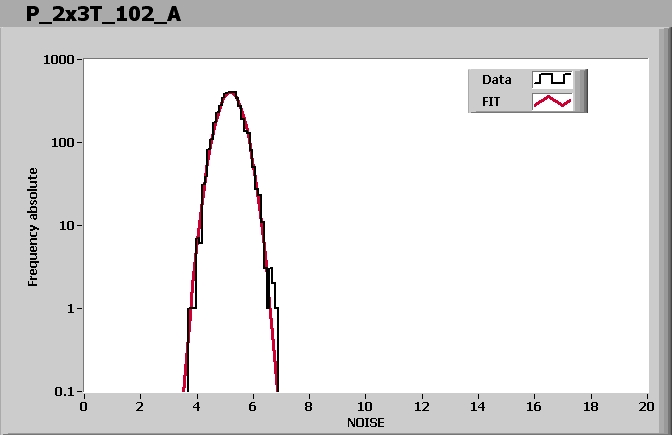

ROC0 NOISE			MEAN = 5.187613 SIGMA = 0.408731
ROC1 NOISE			MEAN = 4.769554 SIGMA = 0.376961
ROC2 NOISE			MEAN = 4.945687 SIGMA = 0.400047

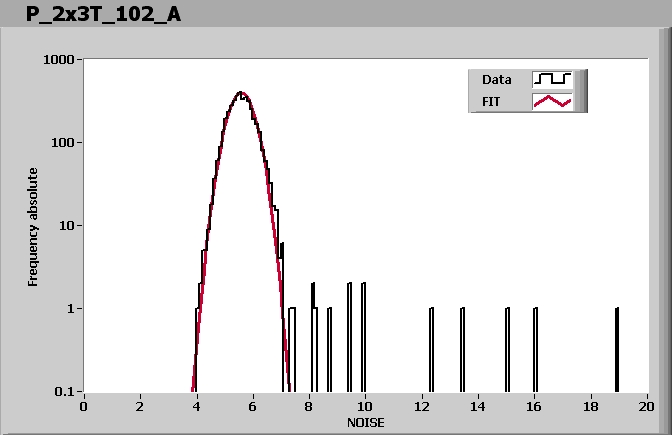

ROC3 NOISE			MEAN = 5.573136 SIGMA = 0.421474

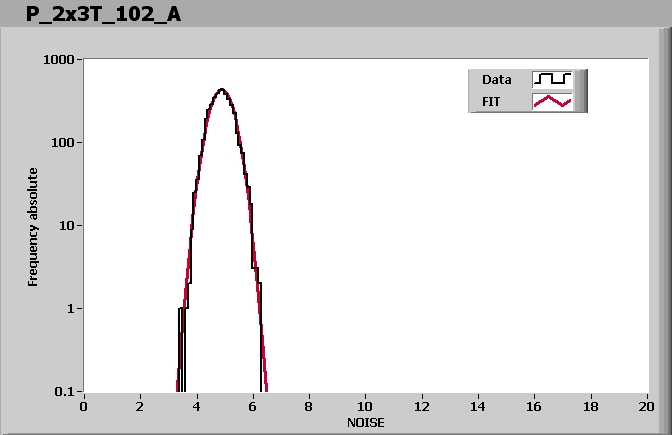

ROC4 NOISE			MEAN = 4.879658 SIGMA = 0.384607

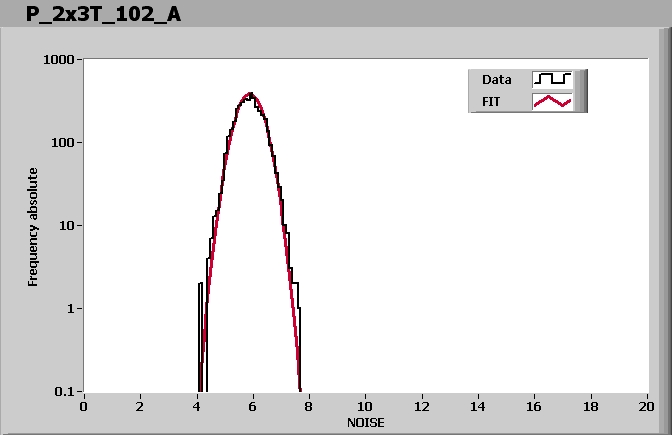

ROC5 NOISE			MEAN = 5.876089 SIGMA = 0.442855

Comment (if any): Good.

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 11:25 AM
