| IV_XML-File |

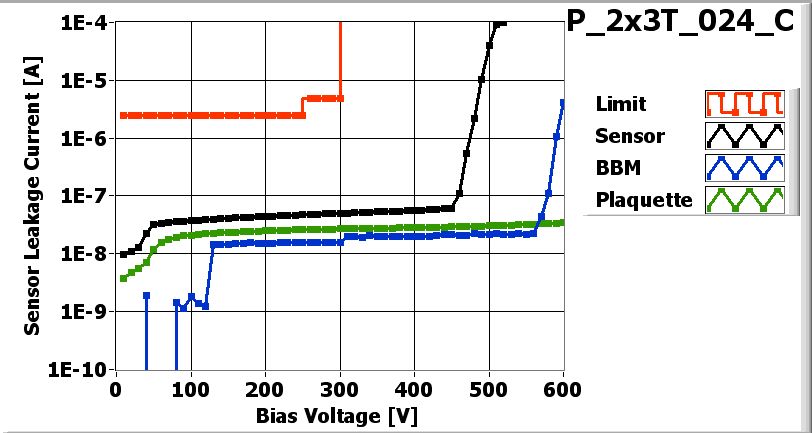

| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_024_C_LASER.jpg)
| LASER_XML-File |

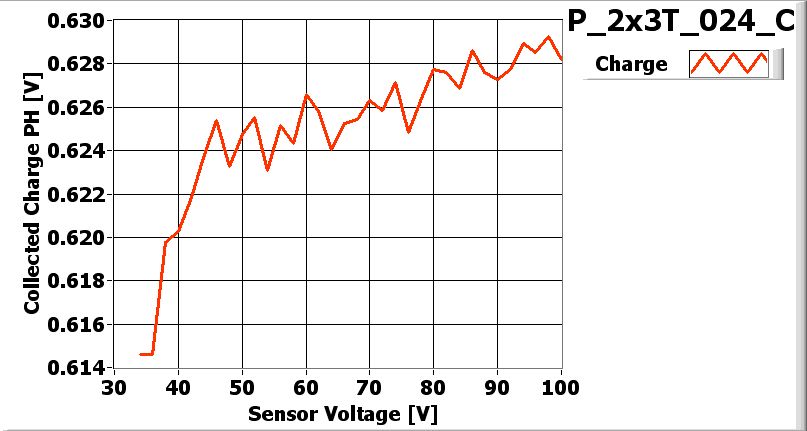

| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 4/24/2007
| Part | ID |
|---|---|
| BBM | BBM_024-2x3T |
| VHDI | 2x3_554 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | DWLQFTT | 04C |
| ROC1 | DWLQFTT | 22B |
| ROC2 | DWLQFTT | 12B |
| ROC3 | DWLQFTT | 14A |
| ROC4 | DWLQFTT | 13D |
| ROC5 | DWLQFTT | 12D |
Inspected by Lockwood Gale on date 4/27/2007
| LR_dev | 0.048 |
| LL_dev | 0.039 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No worebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 4/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/1/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 5/1/2007 by Ozhan Koybasi
P_2x3T_024_Con 5/2/2007 3:59 PM
P_2x3T_024_Con 5/2/2007 3:59 PM
P_2x3T_024_C-1on 5/3/2007 10:02 AM
P_2x3T_024_C-1on 5/3/2007 10:02 AM
PLAQUETTE TESTED on 2007-05-03 by Petra Merkel
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |

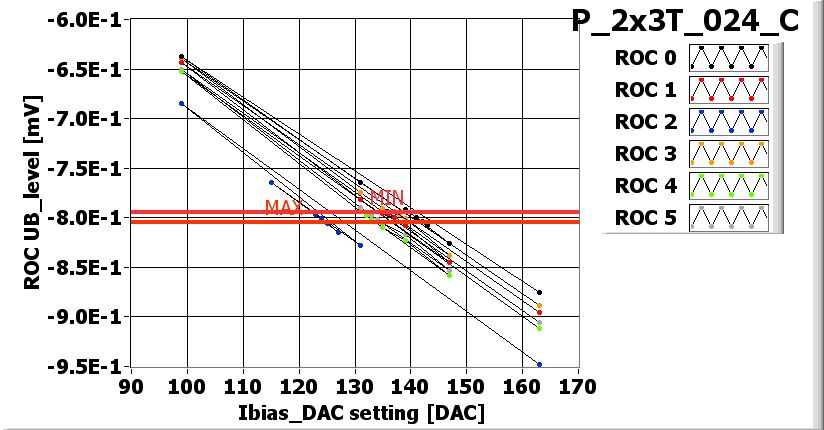

| Ibias_DAC | 142 | 136 | 124 | 138 | 132 | 134 | |

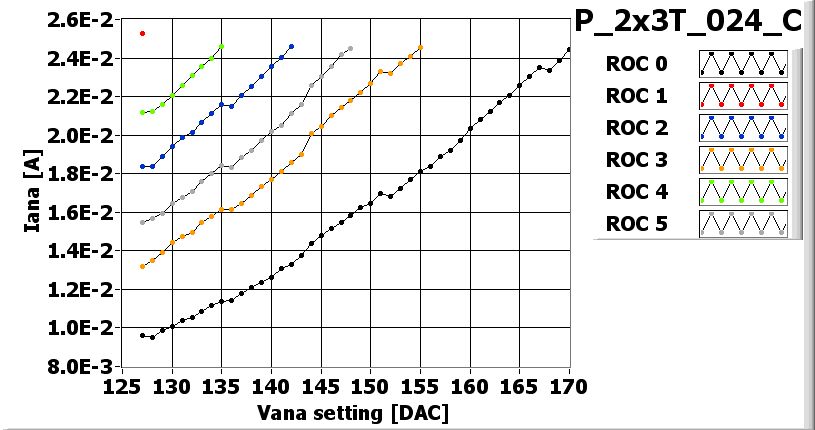

| Vana | 170 | 127 | 142 | 155 | 135 | 148 | |
| Cal_Del | 84 | 97 | 73 | 72 | 101 | 96 | |
| Vthrs_Comp | 89 | 80 | 85 | 92 | 74 | 87 | |
| Unbumped | 0 | 0 | 1 | 0 | 0 | 20 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 3 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 3 | 0 | 1 | 0 | 0 | 20 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x3T_024_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x3T_024_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_024_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_024_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_024_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

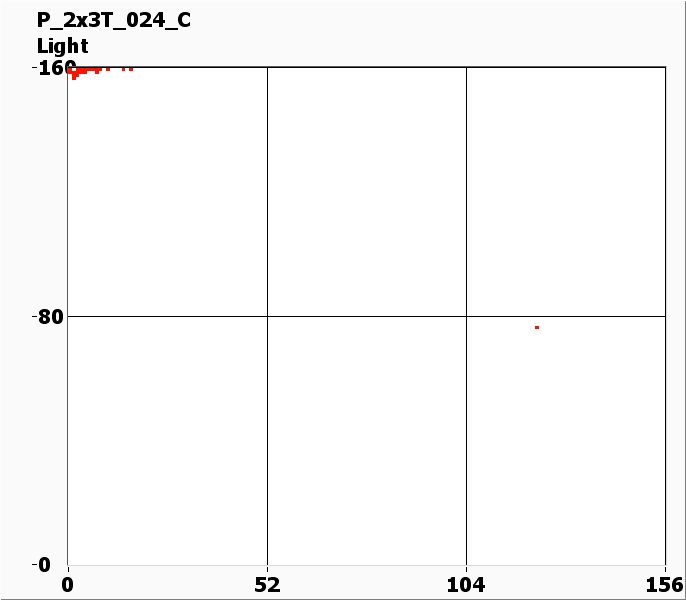

![[IMAGE] of](P_2x3T_024_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 105 | 105 | 95 | 100 | 85 | 95 |
| Vsf | 165 | 135 | 145 | 160 | 140 | 150 |
| VoffsetOp | 135 | 105 | 100 | 100 | 95 | 105 |
| VIbias_PH | 100 | 105 | 95 | 105 | 95 | 105 |
Noise MAP
![[IMAGE] of](P_2x3T_024_C-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_024_C-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
