P_2x3T_024

P_2x3T_024_C

Production testing

Date:5/2/2007

Operator: mia tosi

start testing time:3:59 PM

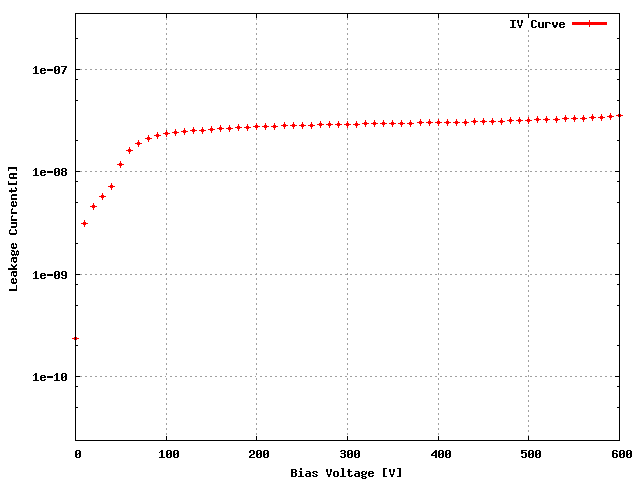

Sensor: S_2x3T_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 DWLQFTT 04C

ROC1 DWLQFTT 22B

ROC2 DWLQFTT 12B

ROC3 DWLQFTT 14A

ROC4 DWLQFTT 13D

ROC5 DWLQFTT 12D

ROC	ROC wafer	Label
ROC0	DWLQFTT	04C
ROC1	DWLQFTT	22B
ROC2	DWLQFTT	12B
ROC3	DWLQFTT	14A
ROC4	DWLQFTT	13D
ROC5	DWLQFTT	12D

Depletion Voltage is -56 and suggested operational voltage is -96

Ibias_DAC, Ibias_DAC Data 142 138 126 140 134 134

Vana, VanaData 170 127 142 154 135 148

CalDelData and plots 84 97 73 72 100 96

VthrCompData and plots 89 81 85 91 74 87

TestDdata ,TestD Plots 0 0 0 0 0 2

LightData ,Light Plots 0 0 1 0 0 20

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

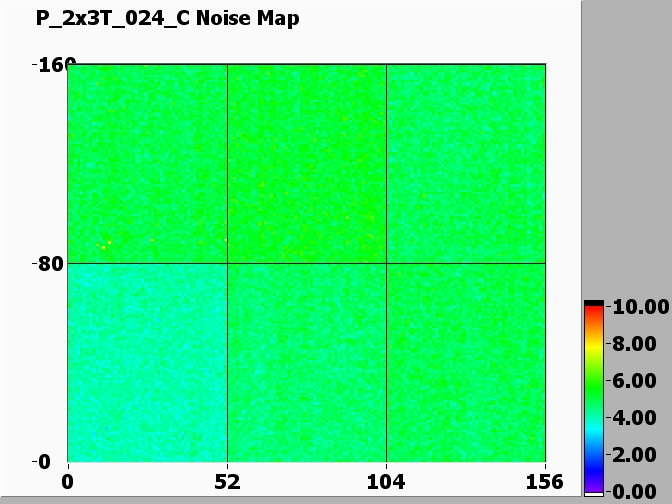

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	115	90	100	90	95
Vsf	165	140	140	155	140	145
VoffsetOp	135	105	100	100	90	105
VIbias_PH	100	100	95	105	105	105

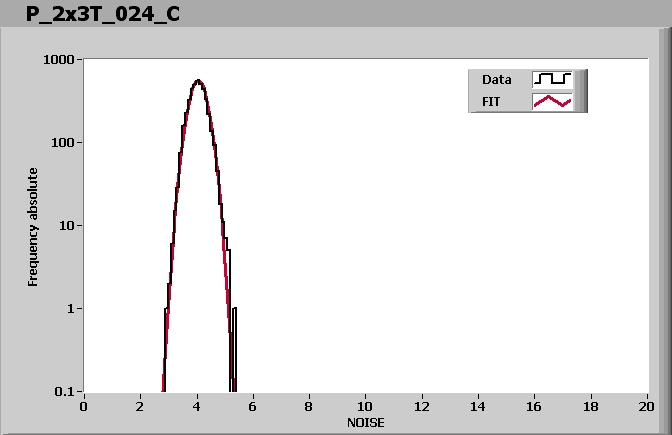

ROC0 NOISE			MEAN = 4.045837 SIGMA = 0.300332
ROC1 NOISE			MEAN = 4.619605 SIGMA = 0.339454
ROC2 NOISE			MEAN = 4.842554 SIGMA = 0.365101

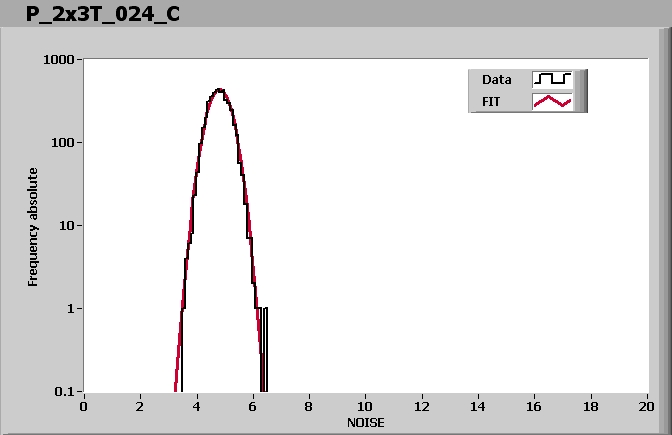

ROC3 NOISE			MEAN = 4.804716 SIGMA = 0.381539
ROC4 NOISE			MEAN = 5.174156 SIGMA = 0.390721

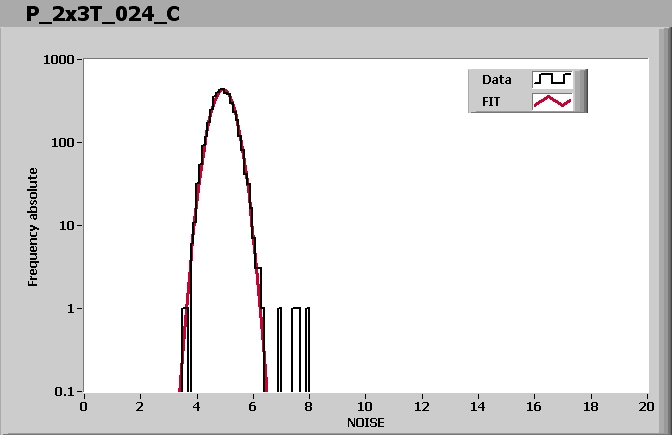

ROC5 NOISE			MEAN = 4.931337 SIGMA = 0.375773

Comment (if any): strange qV plot, look at roc 5 about light test

This Device have been tested 0Times prior to this one and here are the links to the previous tests:

End testing time: 4:21 PM

Ibias_DAC, Ibias_DAC Data	142	138	126	140	134	134
Vana, VanaData	170	127	142	154	135	148
CalDelData and plots	84	97	73	72	100	96
VthrCompData and plots	89	81	85	91	74	87
TestDdata ,TestD Plots	0	0	0	0	0	2
LightData ,Light Plots	0	0	1	0	0	20
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
