P_2x3T_024

P_2x3T_024_C-1

Production testing

Date:5/3/2007

Operator: Petra Merkel

start testing time:10:02 AM

Sensor: S_2x3T_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 DWLQFTT 04C

ROC1 DWLQFTT 22B

ROC2 DWLQFTT 12B

ROC3 DWLQFTT 14A

ROC4 DWLQFTT 13D

ROC5 DWLQFTT 12D

ROC	ROC wafer	Label
ROC0	DWLQFTT	04C
ROC1	DWLQFTT	22B
ROC2	DWLQFTT	12B
ROC3	DWLQFTT	14A
ROC4	DWLQFTT	13D
ROC5	DWLQFTT	12D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 142 136 124 138 132 134

Vana, VanaData 170 127 142 155 135 148

CalDelData and plots 84 97 73 72 101 96

VthrCompData and plots 89 80 85 92 74 87

TestDdata ,TestD Plots 3 0 0 0 0 11

LightData ,Light Plots 0 0 1 0 0 20

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

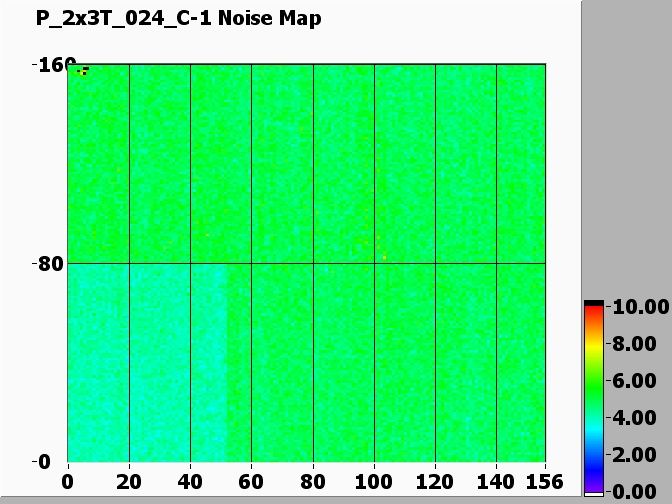

Noise MAP

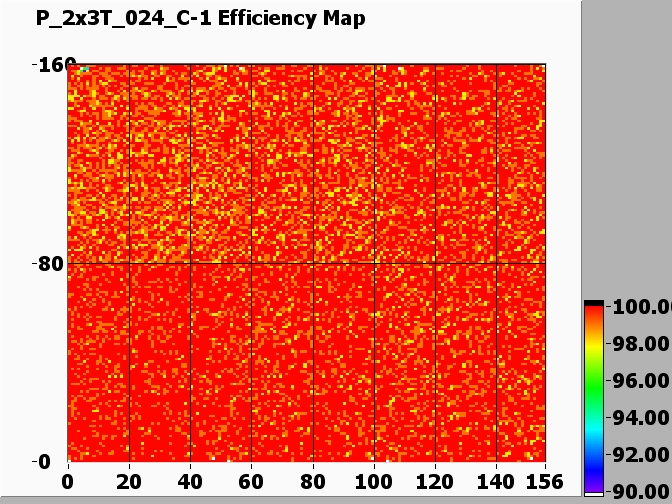

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	105	105	95	100	85	95
Vsf	165	135	145	160	140	150
VoffsetOp	135	105	100	100	95	105
VIbias_PH	100	105	95	105	95	105

ROC0 NOISE			MEAN = 4.059782 SIGMA = 0.321409

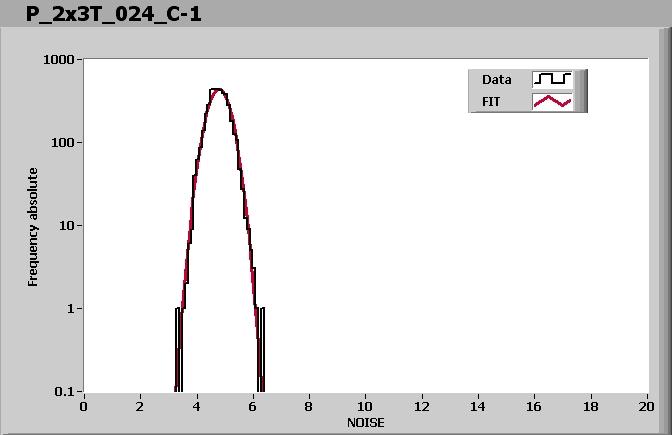

ROC1 NOISE			MEAN = 4.780120 SIGMA = 0.372976
ROC2 NOISE			MEAN = 4.788791 SIGMA = 0.385469

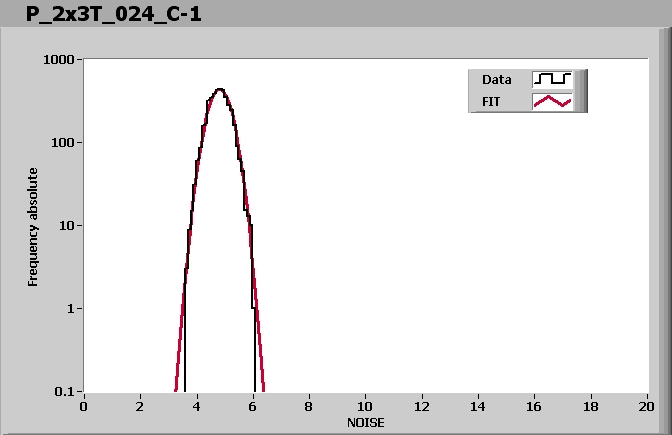

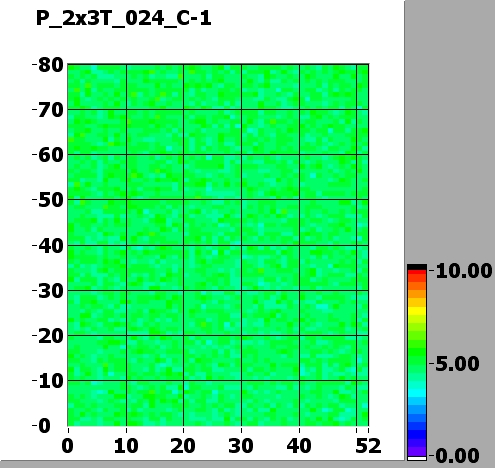

ROC3 NOISE			MEAN = 4.809234 SIGMA = 0.378471

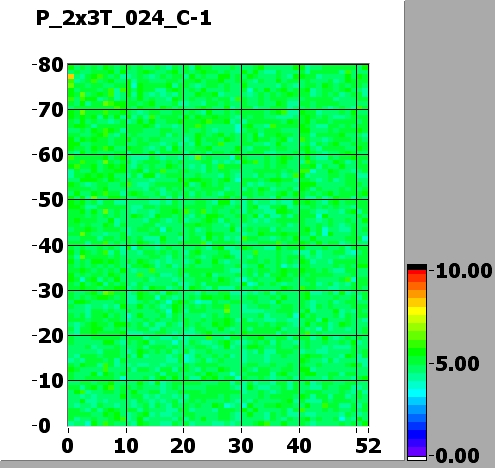

ROC4 NOISE			MEAN = 4.831736 SIGMA = 0.382025

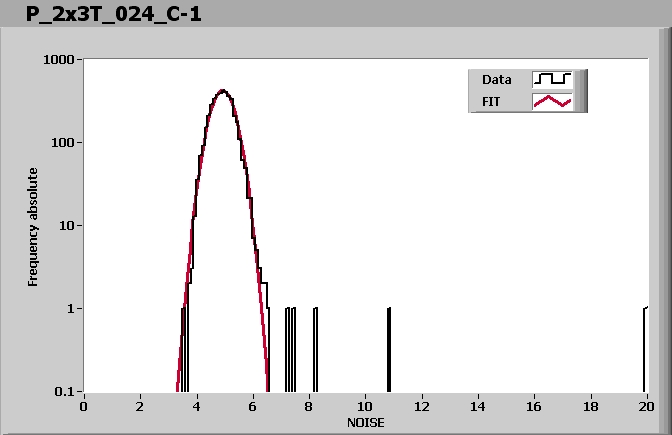

ROC5 NOISE			MEAN = 4.917854 SIGMA = 0.393197

Comment (if any): good plaquette. ROC0 looks a bit suspicious with a couple of rather extreme DACs (Vana and VoffsetOp)

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x3T_024_C.html,

End testing time: 10:22 AM
