P_2x3T_014

P_2x3T_014_C

Parts committed by Bolla Gino on date 2/5/2007

Part	ID
BBM	BBM_014-2x3T
VHDI	2x3_426

ROC ROC wafer Label

ROC0 XE4K3KT 22B

ROC1 XE4K3KT 23A

ROC2 XE4K3KT 23B

ROC3 XE4K3KT 25A

ROC4 XE4K3KT 24B

ROC5 XE4K3KT 24A

ROC	ROC wafer	Label
ROC0	XE4K3KT	22B
ROC1	XE4K3KT	23A
ROC2	XE4K3KT	23B
ROC3	XE4K3KT	25A
ROC4	XE4K3KT	24B
ROC5	XE4K3KT	24A

Inspected by Lockwood Gale on date 2/9/2007

LR_dev 0.055

LL_dev 0.052

FINAL COMMENT by Lockwood Gale No assembly problem. No wirebond problem.

PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale

P_2x3T_014_Con 2/12/2007 1:14 PM

PLAQUETTE TESTED on 2007-02-12 by Isaac Childres

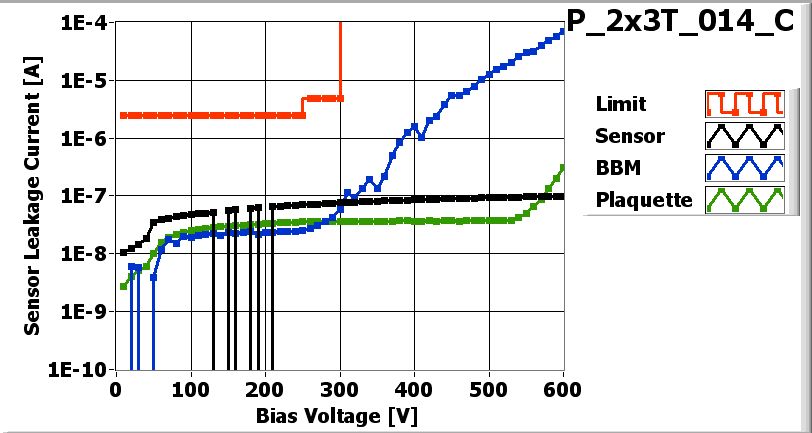

IV_XML-File

Maximum Voltage 600 V

LASER_XML-File

Depletion Voltage 46 V

Operational Voltage 86 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5
Ibias_DAC	130	126	130	130	140	128
Vana	126	118	123	137	129	138
Cal_Del	73	90	82	81	88	93
Vthrs_Comp	76	63	73	75	74	65
Unbumped	0	0	2	0	0	0
Dead	0	0	0	0	0	0
Noisy	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0
Total BAD	0	0	2	0	0	0

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

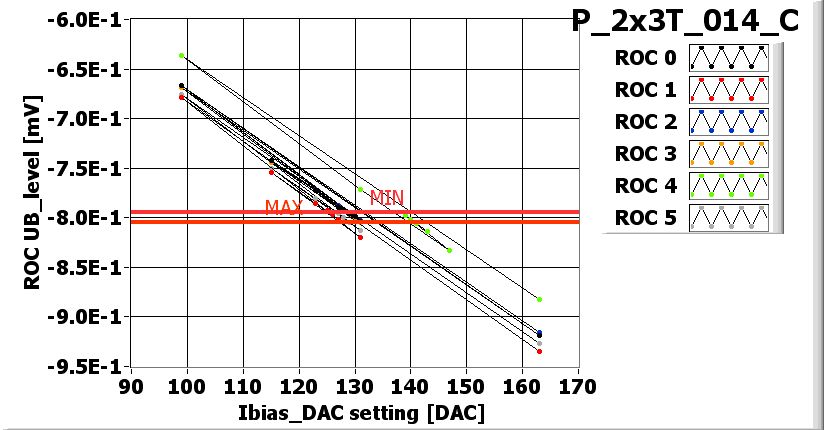

	I_BIAS_DAC_XML-File

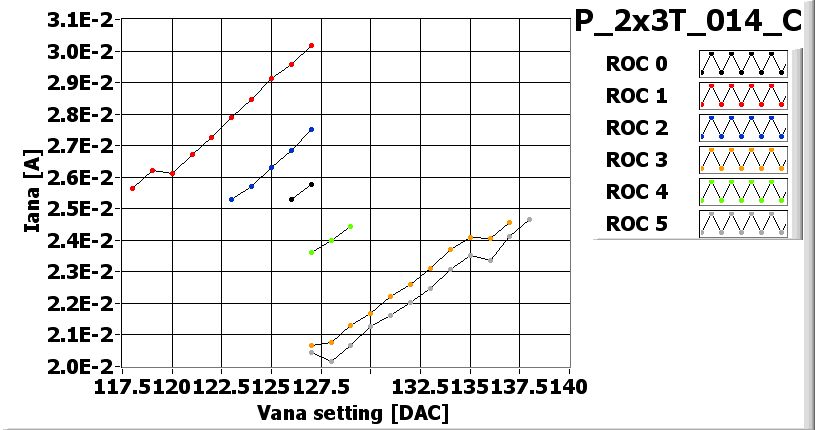

	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

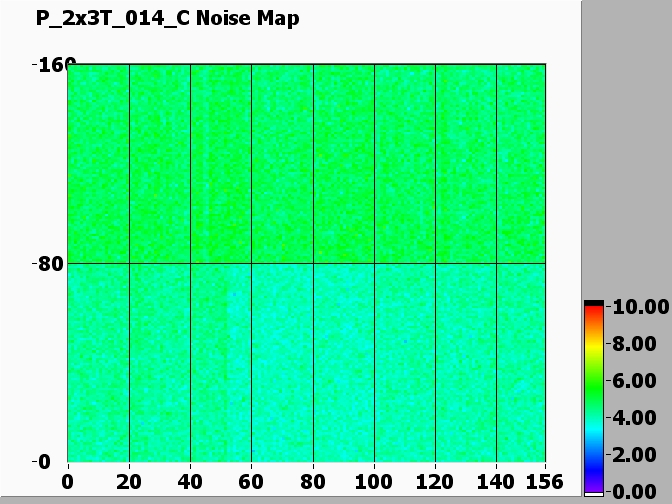

Noise MAP

Efficiency MAP

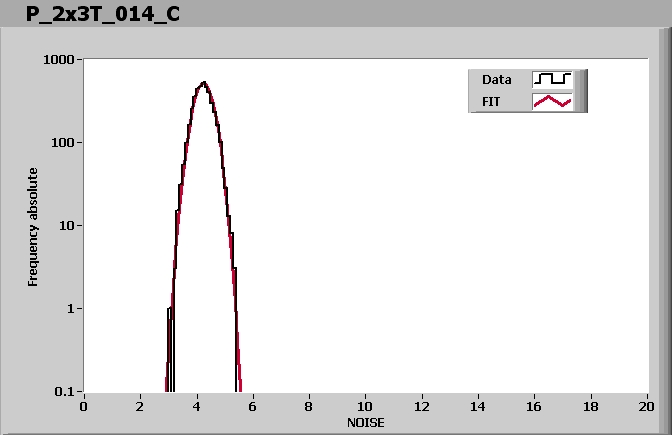

ROC0 NOISE			MEAN = 4.231510 SIGMA = 0.321073
ROC1 NOISE			MEAN = 3.938491 SIGMA = 0.297759

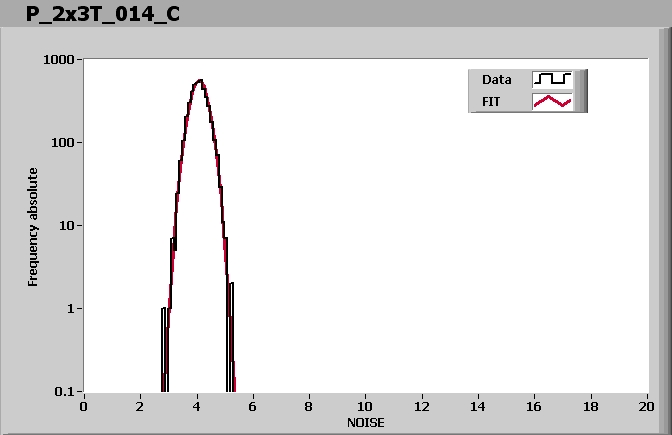

ROC2 NOISE			MEAN = 4.079859 SIGMA = 0.301075
ROC3 NOISE			MEAN = 4.668569 SIGMA = 0.351437
ROC4 NOISE			MEAN = 4.757841 SIGMA = 0.374013
ROC5 NOISE			MEAN = 4.762655 SIGMA = 0.363140

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/13/2007 by Ozhan Koybasi

P_2x3T_014_C-1on 2/15/2007 9:59 AM

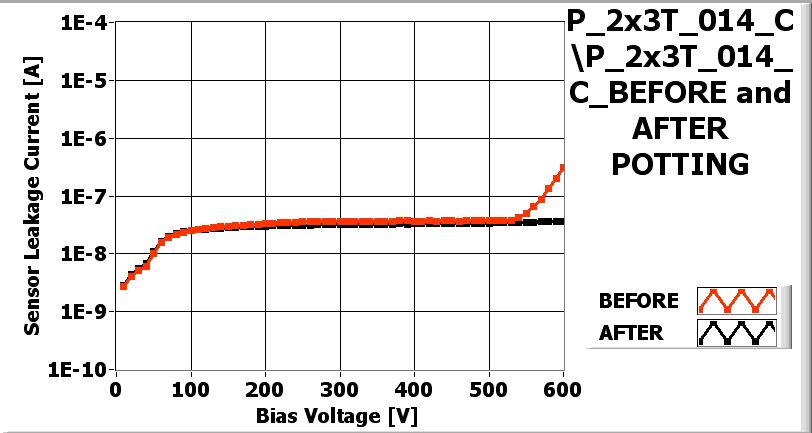

P_2x3T_014_C-1on 2/15/2007 9:59 AM AFTER POTTING

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROC DEAD NOISY UNDECODED TESTD LIGHT

ROC0 0/0 0/0 0/0 1/0 0/0

ROC1 0/0 0/0 0/0 1/2 0/0

ROC2 0/0 0/0 0/0 0/0 2/2

ROC3 0/0 0/0 0/0 0/0 0/0

ROC4 0/0 0/0 0/0 0/2 0/0

ROC5 0/0 0/0 0/0 0/2 0/0

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-16

Plaquette assigned to panel P4L_033
