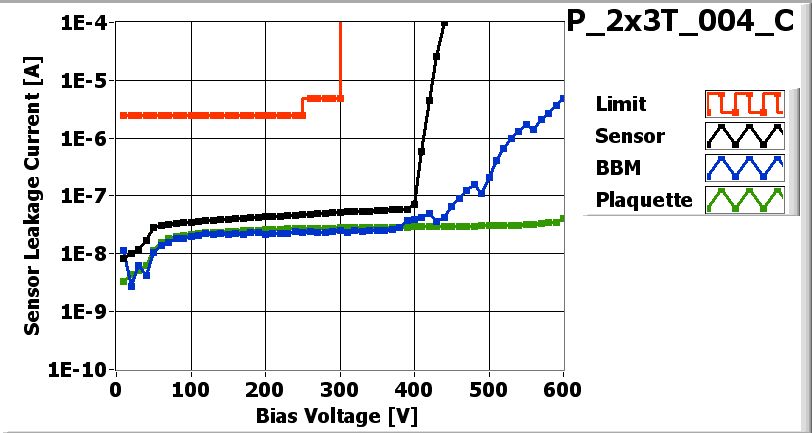

![[IMAGE] of](P_2x3T_004_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3T_004_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_004-2x3T |
| VHDI | 2x3_386 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 06A |
| ROC1 | XE4K3KT | 11C |
| ROC2 | XE4K3KT | 11D |
| ROC3 | XE4K3KT | 13D |
| ROC4 | XE4K3KT | 13C |
| ROC5 | XE4K3KT | 12D |
Inspected by Arndt Kirk on date 2/8/2007
| LR_dev | 0.078 |
| LL_dev | 0.086 |

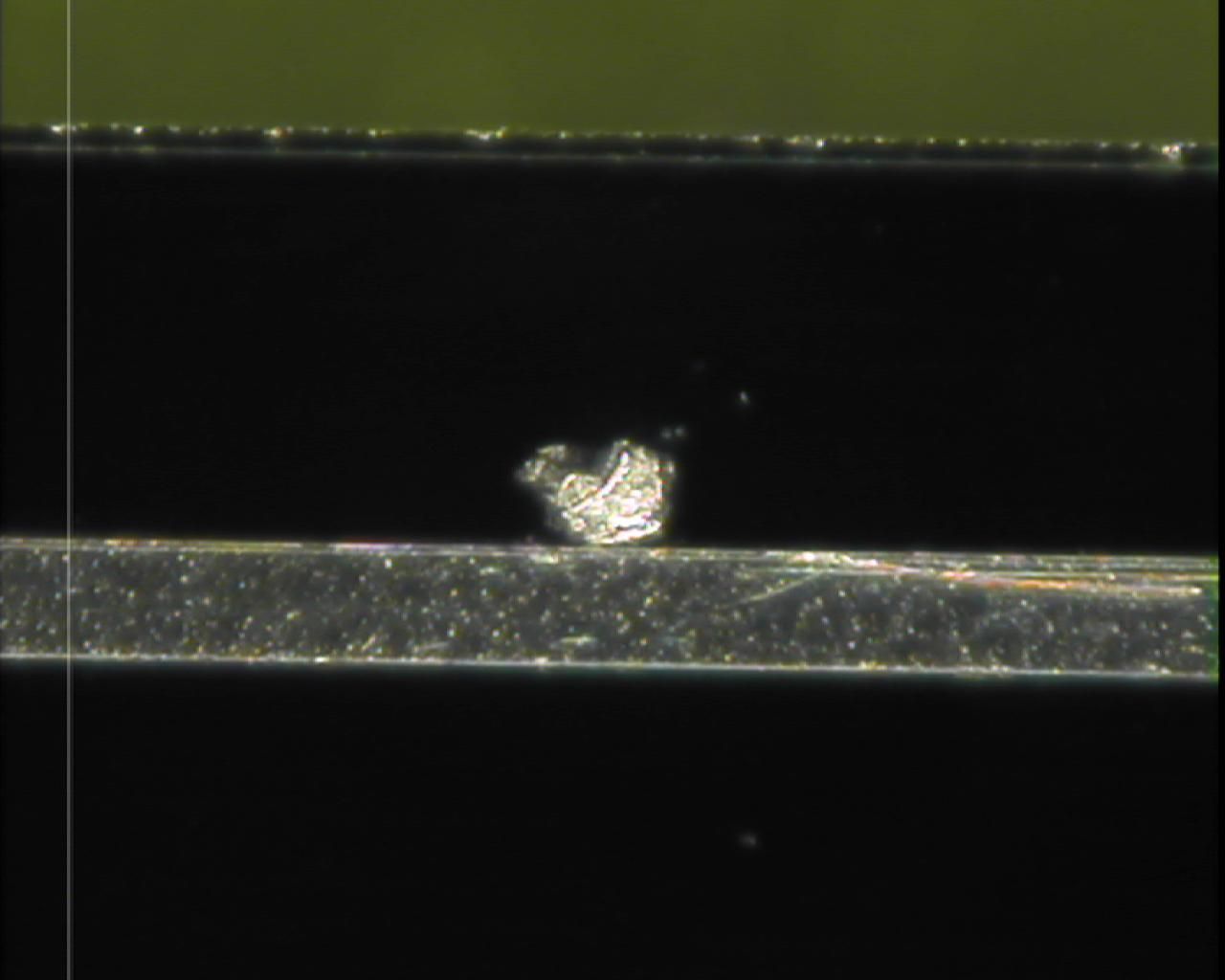

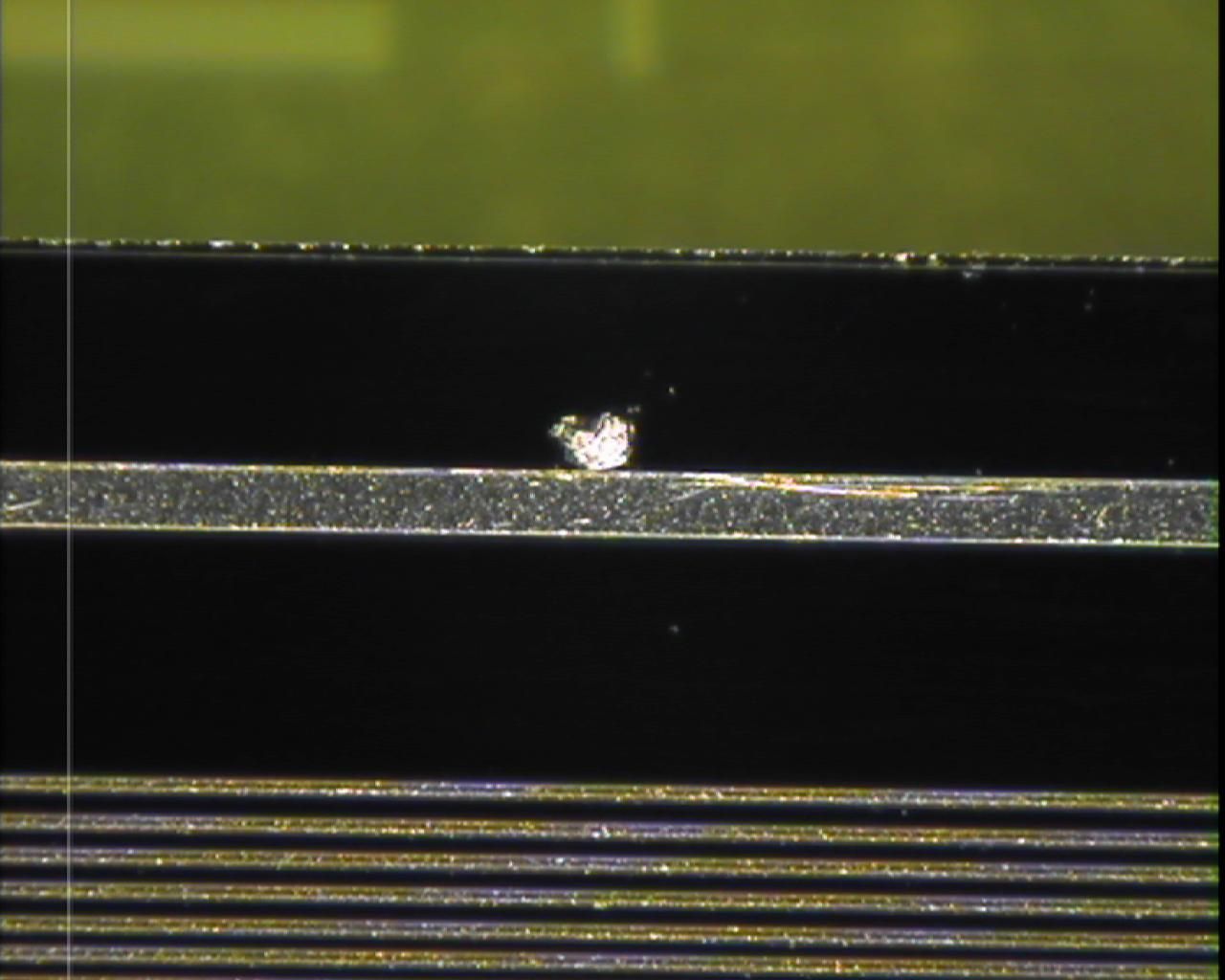

| FINAL COMMENT by Arndt Kirk | No_assembly_problems All wirebond OK. Accidently landed a bond foot on edge of sensor outside guard ring above ROC5 (cassette moved on workholder during FOM-VHDI wirebonding). |
PLAQUETTE made READY for testing on 2/8/2007 by Arndt Kirk
P_2x3T_004_Con 2/8/2007 4:35 PM
P_2x3T_004_Con 2/8/2007 4:35 PM
PLAQUETTE TESTED on 2007-02-08 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 118 | 126 | 128 | 132 | 140 | 118 | |
| Vana | 117 | 127 | 124 | 123 | 133 | 137 | |
| Cal_Del | 100 | 76 | 87 | 93 | 70 | 88 | |
| Vthrs_Comp | 72 | 70 | 68 | 68 | 88 | 78 | |
| Unbumped | 6 | 0 | 0 | 0 | 2 | 1 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 6 | 0 | 0 | 0 | 2 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

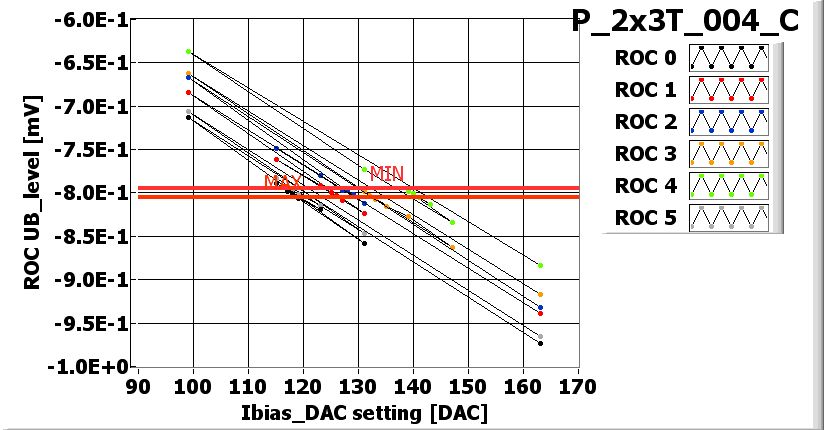

![[IMAGE] of](P_2x3T_004_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

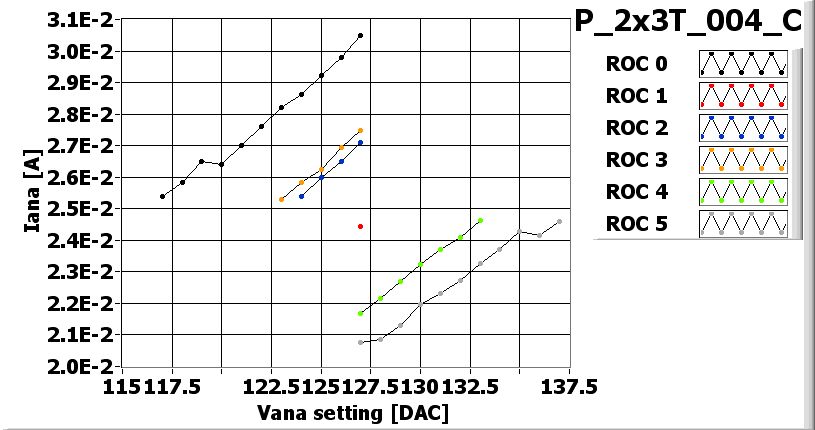

![[IMAGE] of](P_2x3T_004_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3T_004_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3T_004_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3T_004_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3T_004_Cno-bump-light.jpg) |
LIGHT_XML-File |

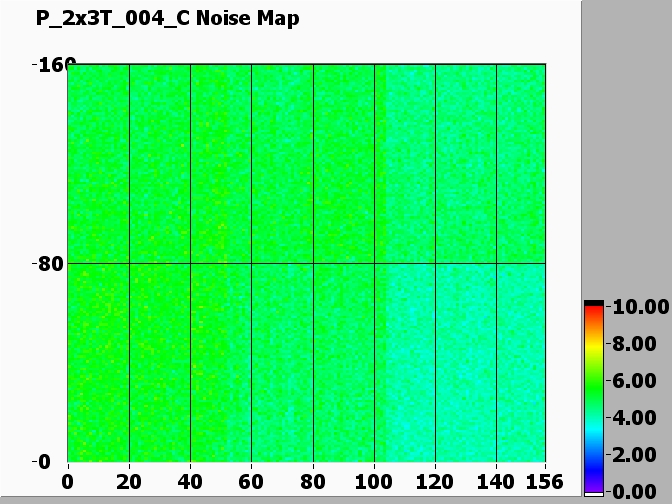

Noise MAP
![[IMAGE] of](P_2x3T_004_C-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3T_004_C-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC0-HISTO.jpg) | MEAN = 5.353304SIGMA = 0.427419 |
| ROC1 NOISE | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC1-HISTO.jpg) | MEAN = 4.765691SIGMA = 0.387230 |

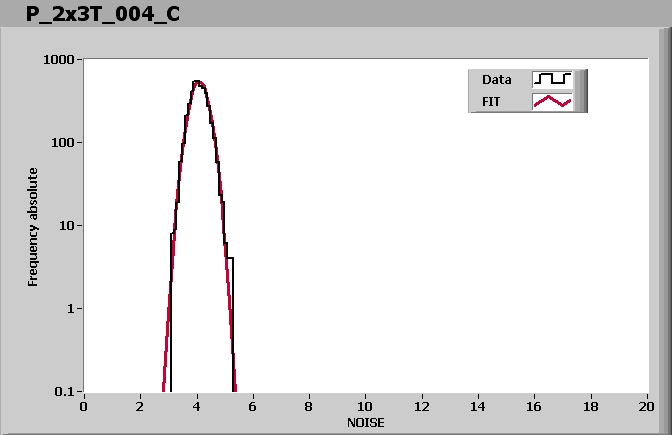

| ROC2 NOISE | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC2-HISTO.jpg) | MEAN = 4.081159SIGMA = 0.305049 |

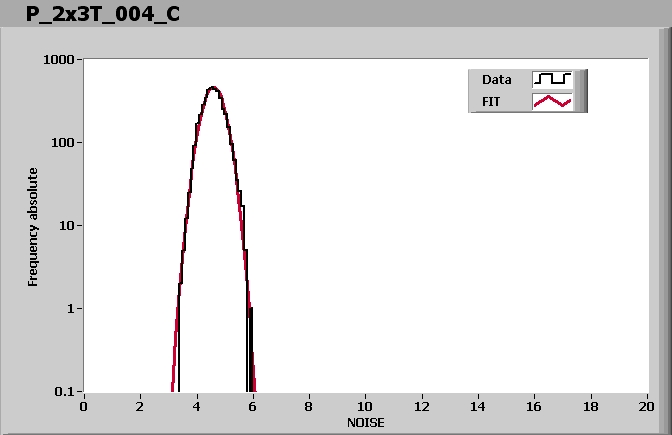

| ROC3 NOISE | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC3-HISTO.jpg) | MEAN = 4.589248SIGMA = 0.359587 |

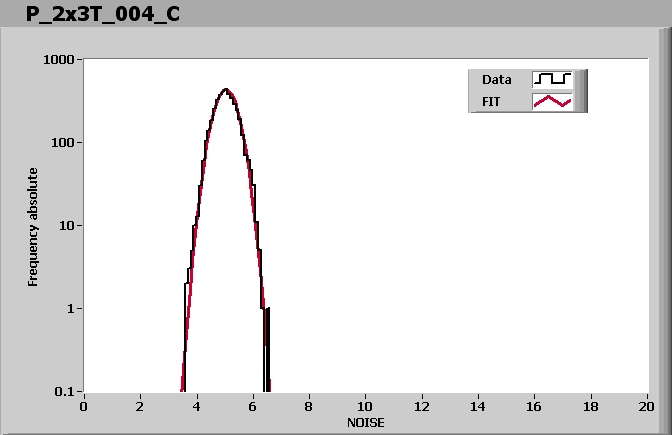

| ROC4 NOISE | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC4-HISTO.jpg) | MEAN = 5.029859SIGMA = 0.383295 |
| ROC5 NOISE | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x3T_004_C-100-noise-ROC5-HISTO.jpg) | MEAN = 5.139176SIGMA = 0.422279 |
PLAQUETTE READY TO BE POTTED
